11

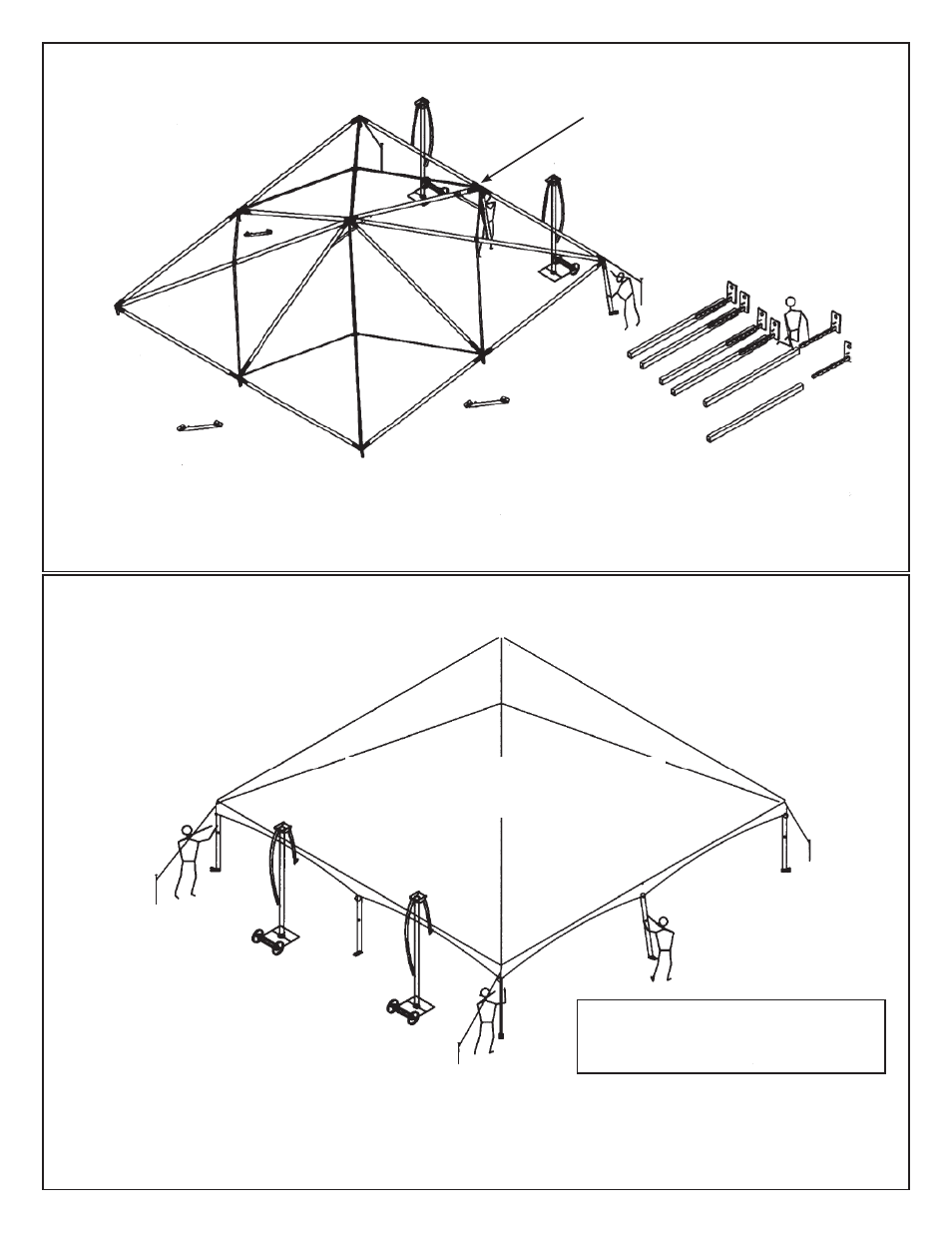

LIFTING TOP FRAME (FIRST SIDE)
INSTALL UPRIGHTS. AT INTER-
MEDIATE LOCATIONS, INSTALL
UPRIGHT BRACES AS WELL
UPRIGHT BRACES
USING HEAVY-DUTY NAVI-TRAC FRAME LIFTS, LIFT ONE
SIDE OF FRAME. SLIDE UPRIGHTS ONTO BOTTOM OF
WELDMENTS ON THE RAISED SIDE AND PIN. BE SURE
ALL RAFTER AND HIP PINS ARE SECURE, AS WELL.
INSERT BASEPLATES INTO UPRIGHTS AND BOLT. NOTE:
SQUARE FRAMES AND END MODULE FRAMES MUST USE
FIXED BASEPLATES. HINGED PLATES ARE TO BE USED
ONLY ON PIVOTING MIDDLE BEAMS FROM THE EXTENSION
FRAME SETS.
FABRIC NOT SHOWN
FABRIC LIES LOOSELY ON FRAME
UNTIL UPRIGHTS ARE INSTALLED
AND STAKED
LIFT TOP FRAME (SECOND SIDE)
1. LIFT 2ND SIDE OF FRAME TO INSTALL OPPOSITE SIDE CORNER AND INTERMEDIATE UPRIGHTS.
2. INSTALL UPRIGHT BRACES AT ALL INTERMEDIATE UPRIGHTS.
3. WHEN BRACES ARE INSTALLED, THE CROSS-CABLE CAN BE REMOVED.
NOTE: BEFORE INSTALLING FABRIC,
INSPECT THE FRAME TO ENSURE ALL HIP,
AND BRACE PINS ARE PROPERLY SEATED
AND SECURED WITH LANYARD PINS.
