Anchor EVENT SERIES - PROFILE SIZE: 220MM X 100MM, INSTRUCTION SUPPLEMENT - WINDOW / HARD WALL INSTALLATION - Manual (Page 3)

Z-clip

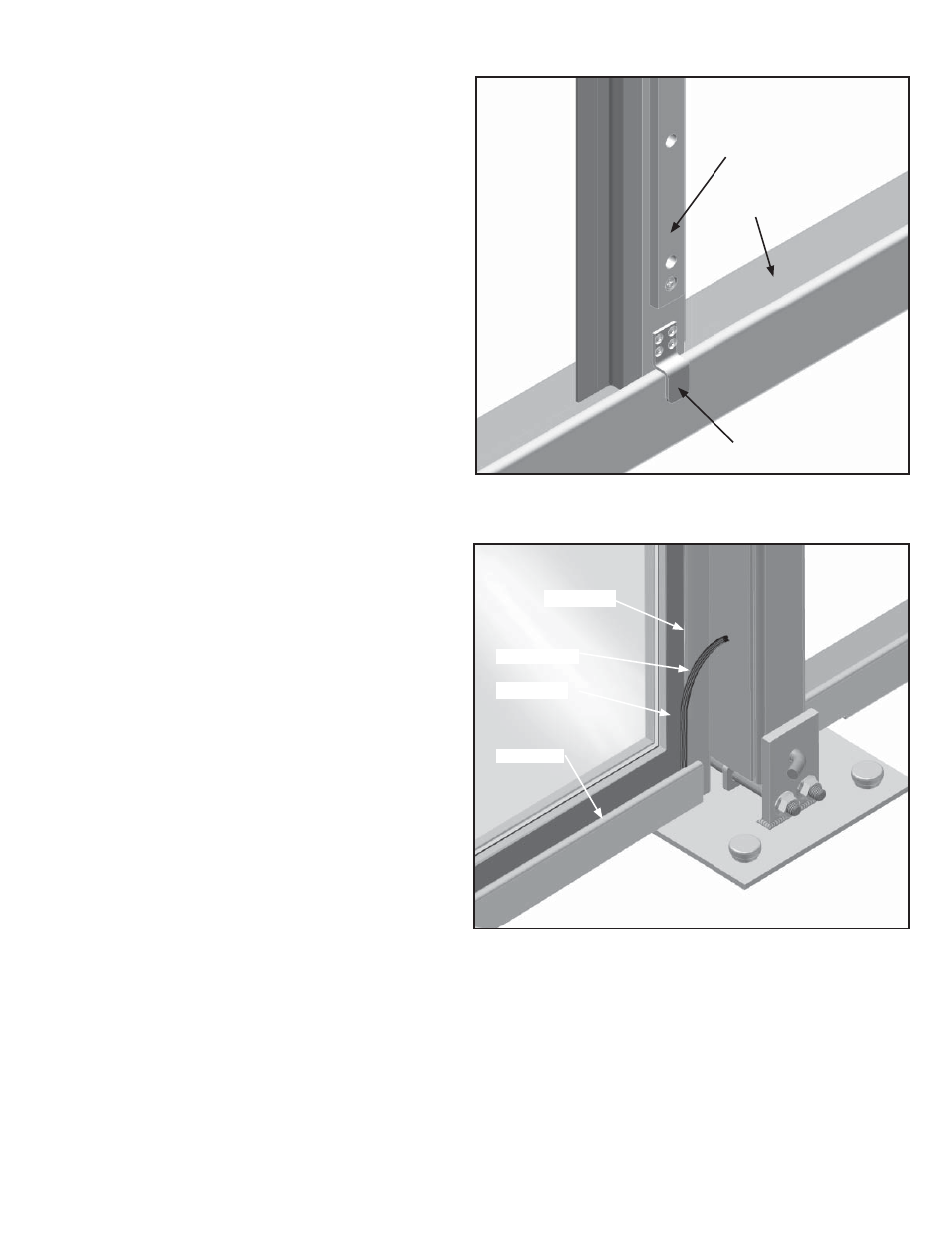

Figure 3
Intermediate post (without
pressure plate)
Inside of Building
Wall Base
Rubber Seal
Inside of Building
Figure 4
Wall Panel
U-Channel
Wall Base
9. Install the second wall panel by placing it on the wall
base and sliding the side between the intermediate
post and the loosely installed pressure plate. Install
the second intermediate post as noted above in step
5 and slide the intermediate post toward the wall
panel until the leg of the post overlaps the wall panel
approximately ¾”. Loosely install the pressure plate
as described in step 8.
10. Before installing the third panel, install the fourth
panel adjacent to the upright by installing the U-
Channel in the upright and installing the third (& last)
intermediate post as described in steps 2 – 8. Leave
the pressure plate off the third intermediate post until
the third (& last) wall panel is in place.
11. Now the third wall panel can be placed between the
second and third intermediate posts. The intermedi-
ate posts may need to be spread apart to allow the
placement of the third wall panel. Once the third
panel is in place, secure the pressure plate on the
third intermediate post.
12. Before tightening the bolts securing the pressure plates to the intermediate posts, adjust the wall pan-
els and intermediate posts so they are equally spaced and the intermediate posts are plumb.
13. Tighten all the pressure plate bolts, adapter fork
bolts and the setscrews securing the adapter forks
to the purlin.
14. Finally, install the rubber seals between the U-
Channels and the interior face of the wall panels.
Note: It’s best to begin engaging the seal at either
the top or the bottom and work to the opposite end.
See Figure 4.
3
