iDR0 User Guide 11

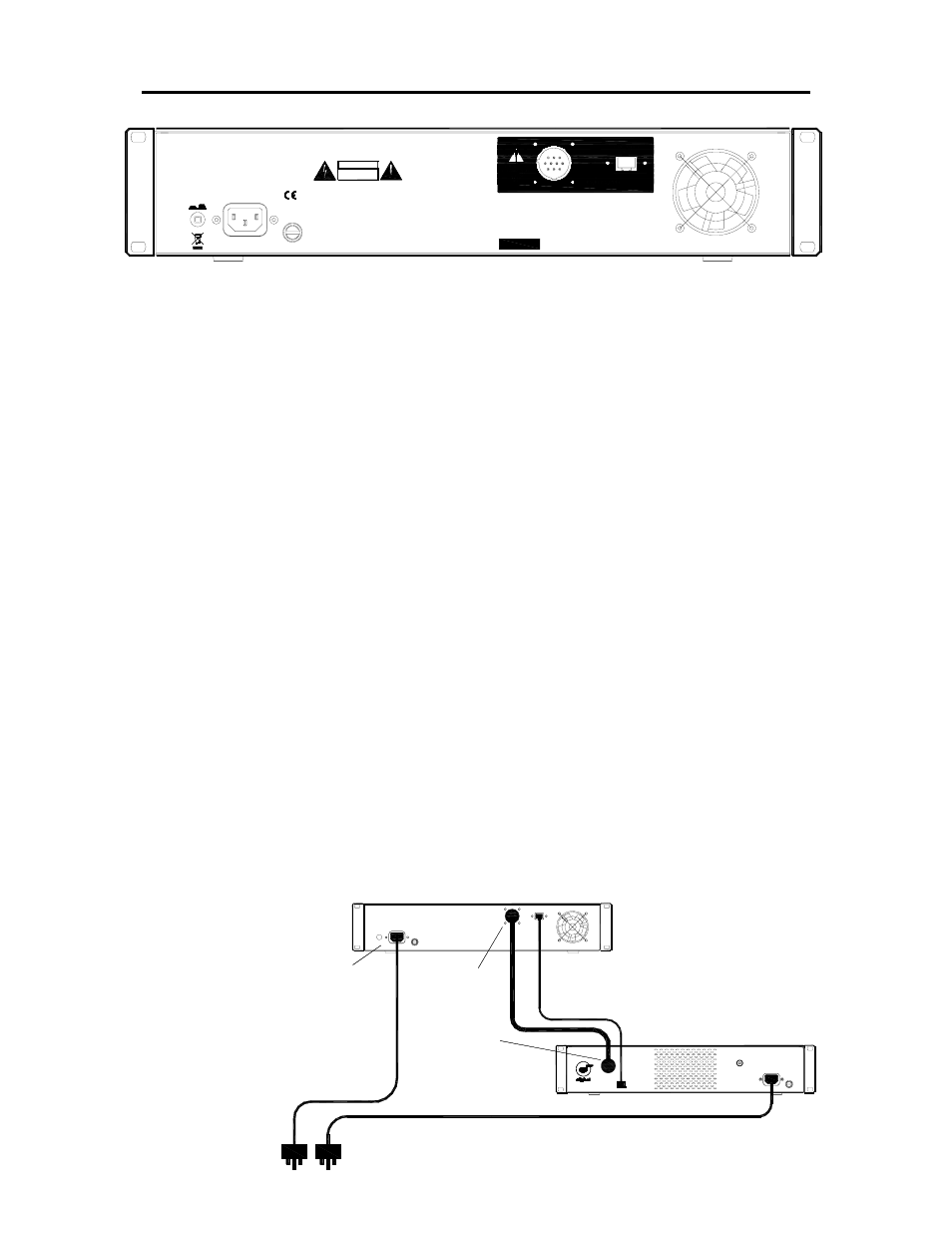

Rear panel connections and operation
MAINS INPUT - An IEC mains power cord with moulded plug
suitable for your territory is shipped with the iDR0. Refer to your
Allen & Heath agent if the incorrect type has been provided. The
iDR0 has an internal universal voltage power unit that accepts world
wide mains sources from 100 to 240V.AC 47 to 63Hz. Make sure the
IEC plug is pressed fully into the panel socket before switching on.
Note: To ensure operator safety, connect only to an approved and
properly grounded mains source. Do not remove the ground
connection in the mains cord.
Note: Read and understand the warnings in the safety sheet
supplied with this unit and printed on the rear panel.
MAINS FUSE - In the event of a fuse failure replace only with the
correct type and rating as indicated on the rear panel. If the
replacement fuse fails again, switch off and refer to your Allen &
Heath service agent.
ON/OFF switch - Press to toggle mains power on or off.
Note: Always turn on the MiniRack first, then the iLive Surface.
Powering the surface up first may result in failure to connect or loss
of EtherSound audio at the surface. Power off the surface before
turning off the MiniRack.
BACKUP SUPPLY INPUT - If required, connect the optional Allen &
Heath iPS10 external rack mount power unit for redundant supply
backup. The iDR0 can operate with either or both the internal and
backup supply switched on. The audio continues uninterrupted
when switching between units. Refer to the iPS10 user guide for
more information.
Note: Connect only the specified power unit and cables. The
correct DC and Temperature Monitor cables are provided with the
iPS10. Do not extend or modify these in any way.
0 I
ON/OFF
100 - 240V~
47-63Hz ~ 40W-70W MAX
MINI RACK
ALLEN&HEATH
T1.6AL 250V
FUSE
20MM
ATTENTION: REMPLACER PAR UN FUSIBLE STRICTEMENT IDENTIQUE EN VALEURS.
NO USER SERVICEABLE PARTS INSIDE.
DO NOT OBSTRUCT VENTILATION OPENINGS.
AVIS: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR.
SEE OPERATING MANUAL BEFORE USING.
THIS APPARATUS MUST BE EARTHED BY THE POWER CORD.
DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE
DISCONNECT FROM MAINS BEFORE REMOVING POWER MODULE.
REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION
DO NOT OPEN
RISK OF ELECTRIC SHOCK
SERIAL NUMBER
Made in the UK by ALLEN&HEATH LIMITED
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(2) this device must accept any interference received, including interference that may cause undesired operation. (1) this device may not cause harmful interference, and
iPS10 BACKUP PSU
IEC MAINS CABLES
Mains power 100 - 240V AC
TEMPERATURE MONITOR CABLE
DC CABLE CAT5
10way
MAINS
Female plug
Male plug
MAINS
iDR0 MINIRACK
INTERNAL PSU
