GL2200

U

SER

G

UIDE

10

F

LIGHTCASING

T

HE

C

ONSOLE

If the console is to be regularly moved we recommend that it is installed in a foam-lined flightcase.
At all times avoid applying excessive force to any knobs, switches or connectors.

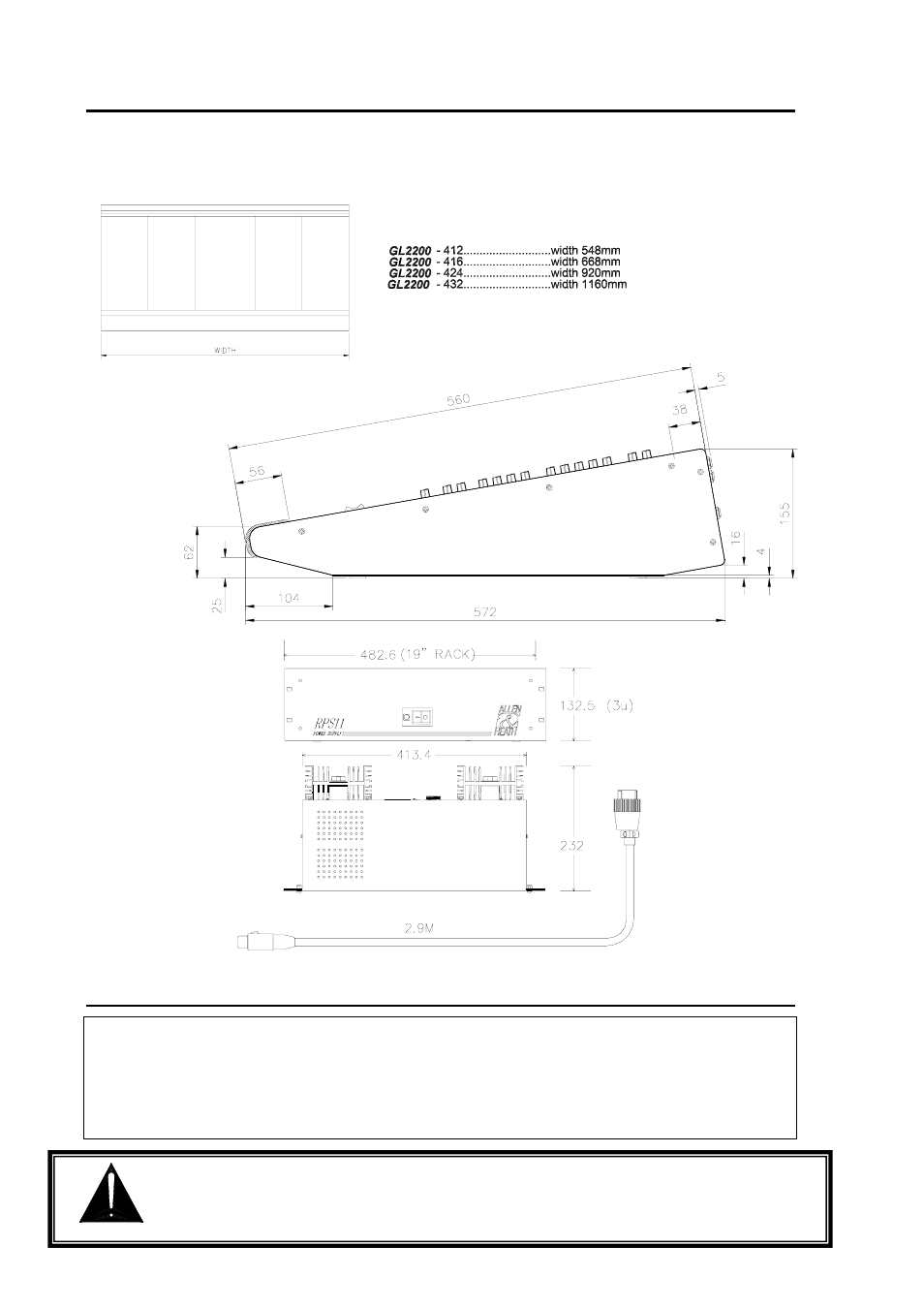

Dimensions for flightcasing the console are shown below:

D

IMENSIONS

Unpacked Packed
Width depth height weight(kg) Width depth height weight(kg)
GL2200-412 ........................548 ............ 572 ............ 155 ............ 16.....................700 ............ 750 ............ 280 ............ 20
GL2200-416 ........................668 ............ 572 ............ 155 ............ 18.....................815 ............ 750 ............ 280 ............ 23
GL2200-424 ........................920 ............ 572 ............ 155 ............ 24.....................1065 .......... 750 ............ 280 ............ 29
GL2200-432 ........................1160 .......... 572 ............ 155 ............ 30.....................1325 .......... 750 ............ 280 ............ 35
RPS11 power supply ..........483 ............ 232 ............ 135 ............ 9.5....................575 ............ 270 ............ 170 ............ 11

Avoid storing or using the RPS11 in conditions of excessive heat or cold.

Position the RPS11 power supply away from the mixing console to avoid interference.
