XONE:S6 User Guide 39
20.00 Hz 100.00 1000.00 10000.00 20000.00
-40.00
-30.00
-20.00
-10.00
0.00
10.00
dBr
Channel High-Pass filter Min/Max
20.00 Hz 100.00 1000.00 10000.00 20000.00
-20.00
-15.00
-10.00
-5.00
0.00
5.00
10.00
15.00
20.00
dBr
Mic EQ

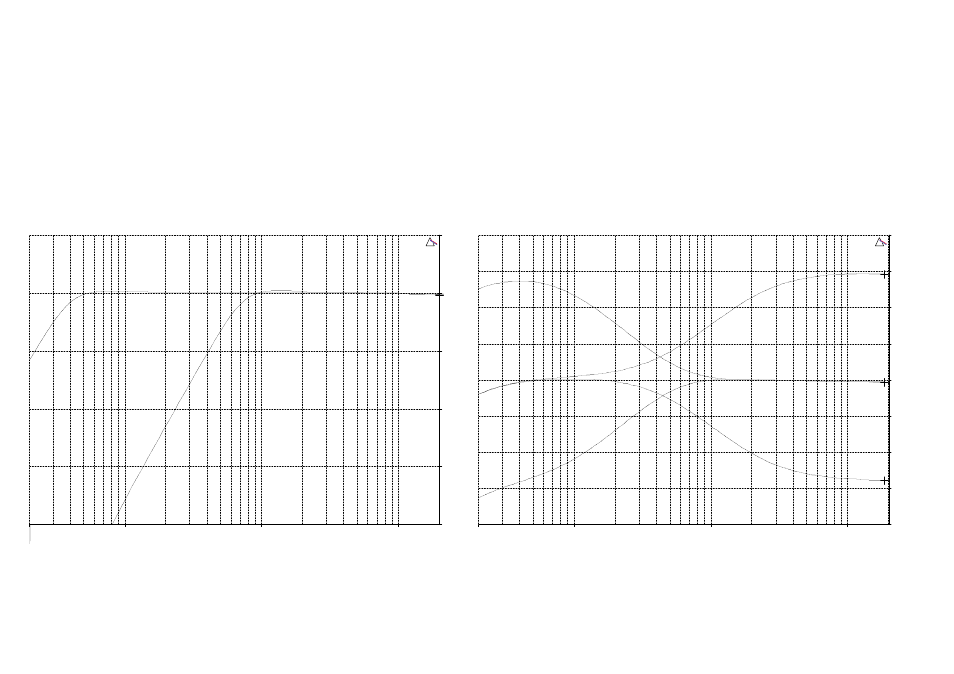

Channel Hi-Pass filter
This graph shows the
response of the filter at its minimum (30Hz) and maximum
(600Hz) settings. The curve can be swept between these
positions.
Microphone EQ
This graph shows the response of
the equaliser at maximum LF and HF boost and cut. The
shelves are tuned for vocal equalisation at 120Hz (LF) and
2.5kHz (HF). Maximum cut/boost is 15dB.
