XONE:V6 User Guide

20.00 Hz

100.00

1000.00

10000.00 20000.00

-20.00

-15.00

-10.00

-5.00

0.00

5.00

10.00

15.00

20.00

dBr

RIAA Response

20.00 Hz

100.00

1000.00

10000.00 20000.00

-140.00

-120.00

-100.00

-80.00

-60.00

-40.00

-20.00

-0.00

dBu

FFT of Valve Input

RIAA

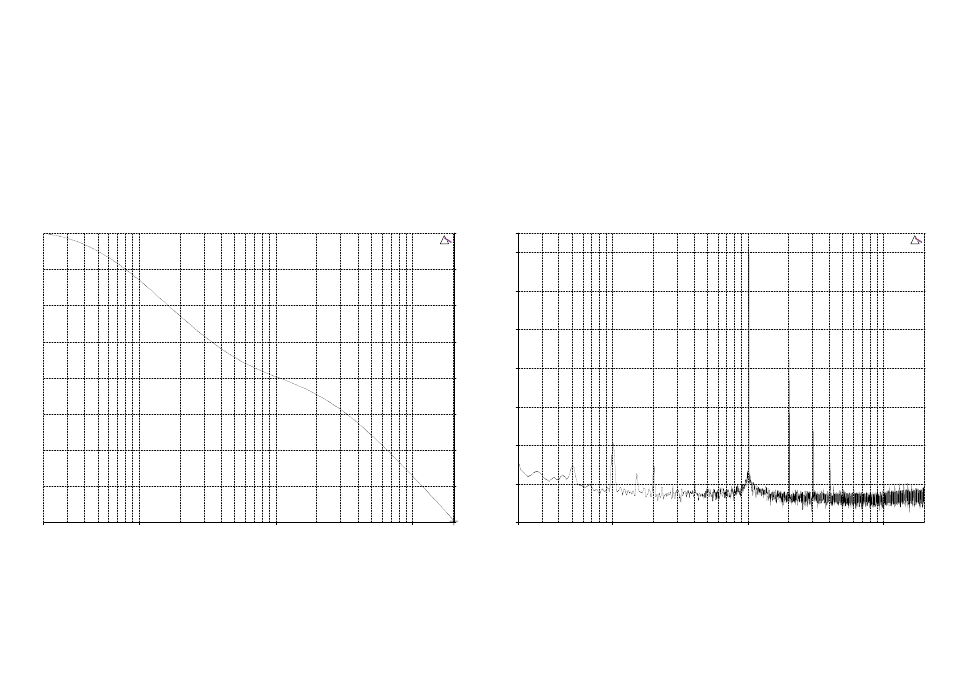

This graph shows the equalisation curve of the

channel RIAA input. This compensates for the response of
the pickup cartridge to result in a flat music response.

Valve channel distortion

This graph shows the

harmonic distortion associated with the valve preamp. The
1kHz test tone is shown, together with a strong second
harmonic distortion. This accounts for the ‘musical warmth’
associated with valve circuits.
