POWER RAIL MONITORS
+6.3V
DC POWER OUT
+30V -30V PROTECT
POWER UNIT
DC POWER CABLE
Power Supply Connector

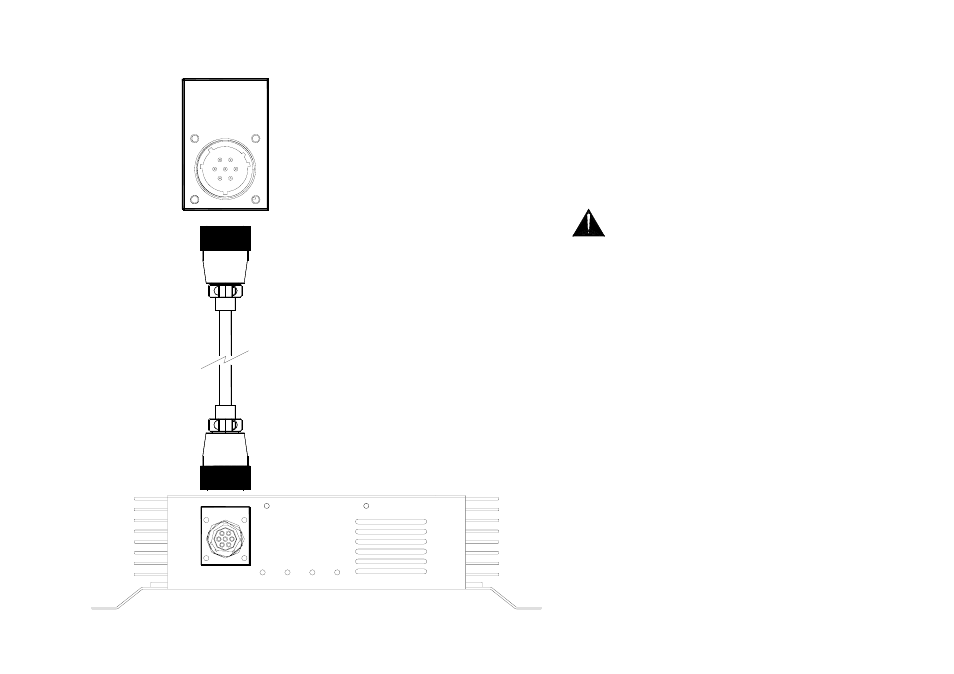

DC power input A heavy duty multi-pin socket for connection to the
external power unit using the DC cable provided. This carries the audio and
logic regulated DC power rails required for console operation. Align the
orientation lug and press the plug in. Rotate the locking ring to secure the
cable in place.
Only connect to the correct Allen & Heath
power unit specified for the console. Do not
attempt to modify the cable or power unit in any
way. Failure to observe this may result in damage
to the console.
The power unit has the following status LED indicators
on its front panel:
+30V and -30V Light when the audio circuit DC
voltage rails are available.
+6.3V
Lights when the logic DC voltage rail is
available.
PROTECT
Lights when the power unit is held in
safe mode. This protects the console during the
power up sequence, and if excessive current is drawn
or a voltage fault detected.
ALLEN&HEATH PSU
ONLY USE CORRECT
INPUT
DC POWER
