AirLive WMM-3000R User Manual
Page 28
AirLive WMM-3000R User
’s Manual
25

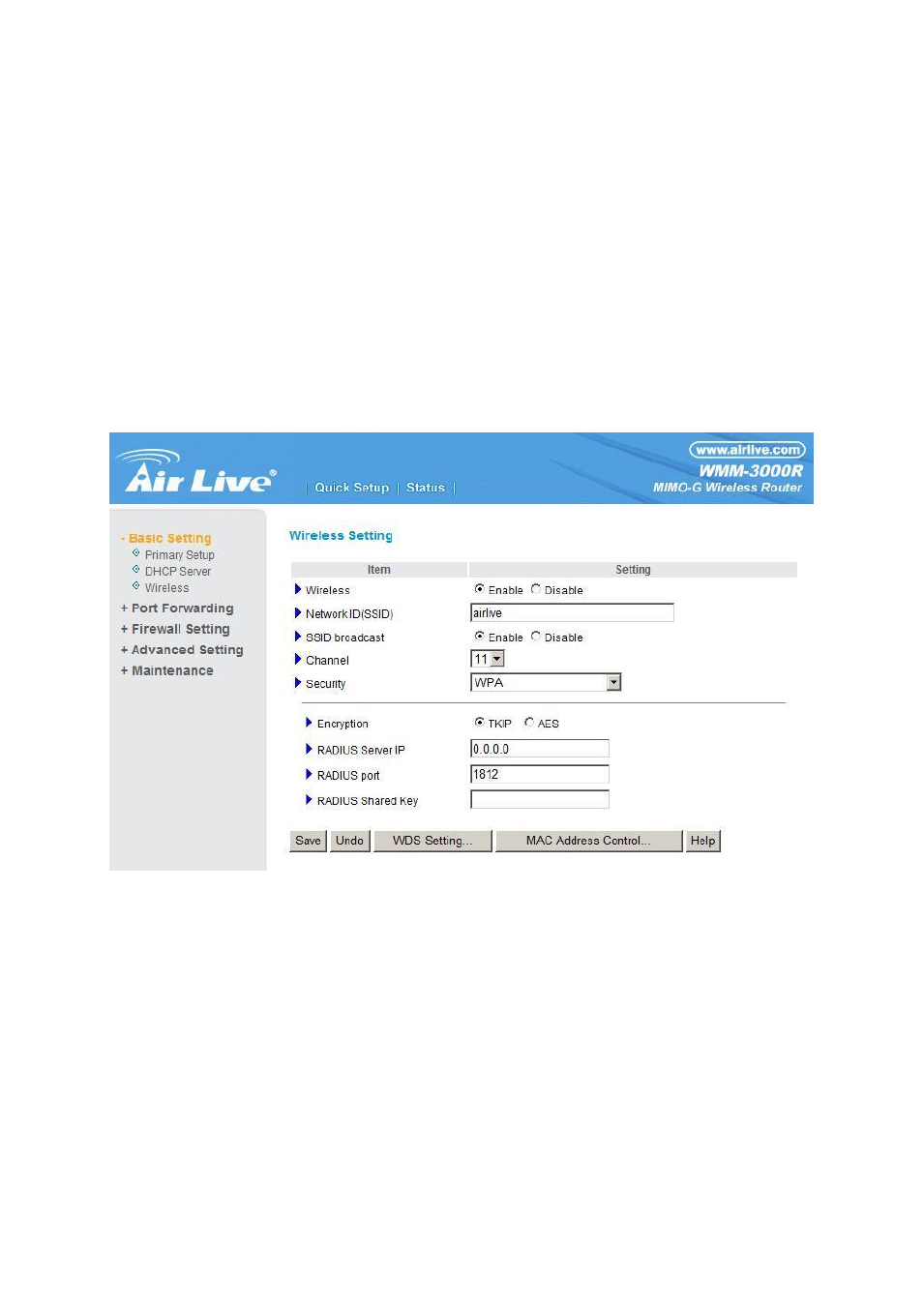

WPA
Check Box was used to switch the function of the WPA. When the WPA function is enabled, the
Wireless user must authenticate to this router first to use the Network service. RADIUS Server
IP address or the 802.1X ser
ver’s domain-name.
Select Encryption and RADIUS Shared Key
If you select HEX,you have to fill in 64 hexadecimal
(0, 1, 2…8, 9, A, B…F) digits
If ASCII,the length of preshare key is from 8 to 63.
Key value shared by the RADIUS server and this router. This key value is consistent with the key value
in the RADIUS server.
WPA2-PSK(AES)
1. Select Pre-share Key Mode
If you select HEX, you have to fill in
64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits
If ASCII, the length of Pre-share key is from 8 to 63.
2. Fill in the key, Ex 12345678
