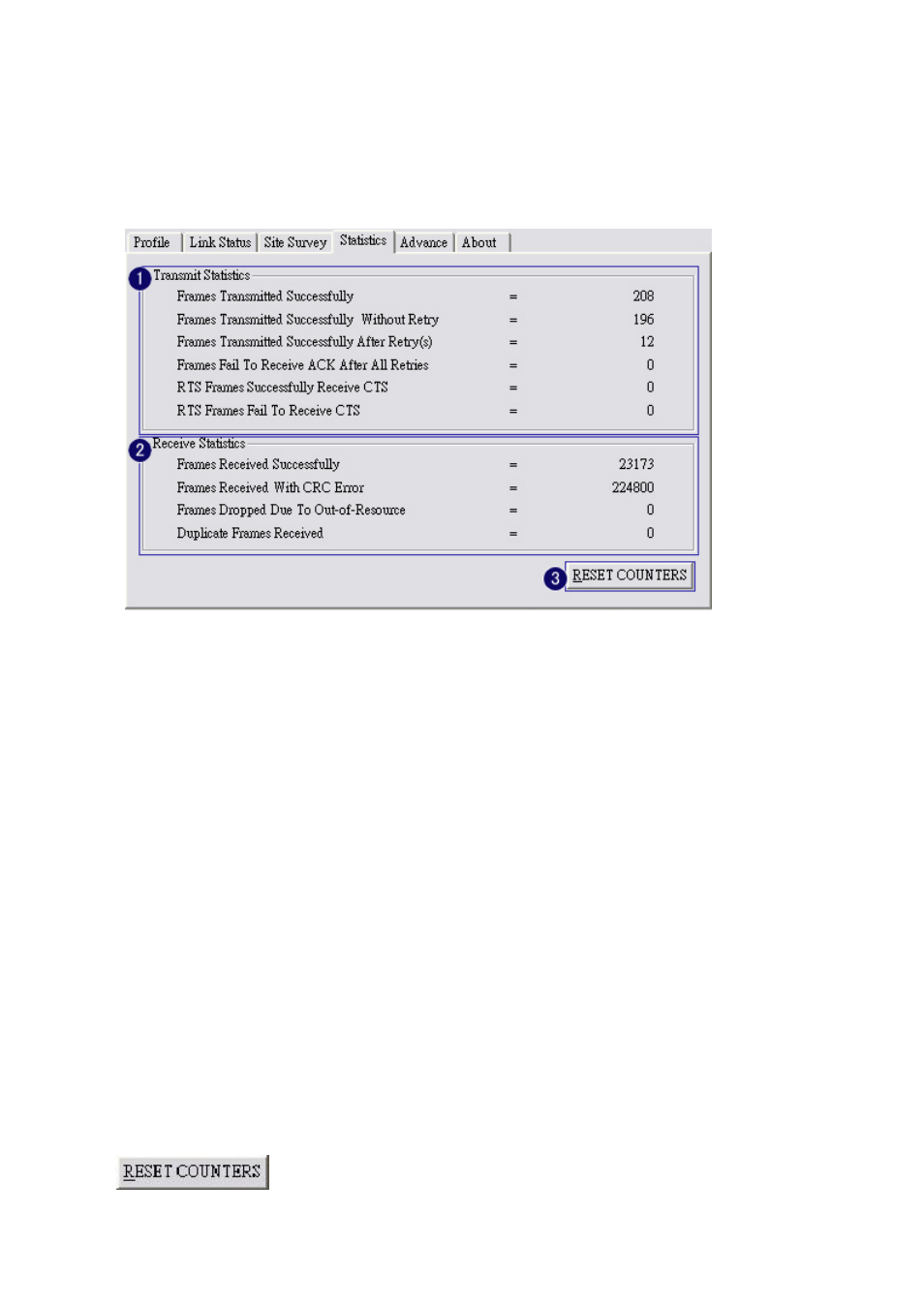

4-5 Statistics Page
Statistics page displays the detail counter information based on 802.11 MIB counters. This page
translates that MIB counters into a format easier for user to understand.
1. Transmit Statistics:
i. Frames Transmitted Successfully: Frames successfully sent.
ii. Frames Transmitted Successfully Without Retry: Frames successfully sent without
any retry.
iii. Frames Transmitted Successfully After Retry: Frames successfully sent with one or
more reties.
iv. Frames Fail To Receive ACK After All Retries: Frames failed transmit after hitting
retry limit.
v. RTS Frames Successfully Receive CTS: Successfully receive CTS after sending RTS
frame.
vi. RTS Frames Fail To Receive CTS: Failed to receive CTS after sending RTS.
2. Receive Statistics:
i. Frames Received Successfully: Frames received successfully.
ii. Frames Received With CRC Error: Frames received with CRC error.
iii. Frames Dropped Due To Out-of-Resource: Frames dropped due to resource issue.
iv. Duplicate Frames Received: Duplicate received frames.
3. To zero the statistic numbers of transmitting and receiving data.
- 22 - AirLive MIMO-G Wireless LAN Adapter User’s Manual
