AirLive WLA-5000AP v3 Firmware 2.x User’s Manual

3

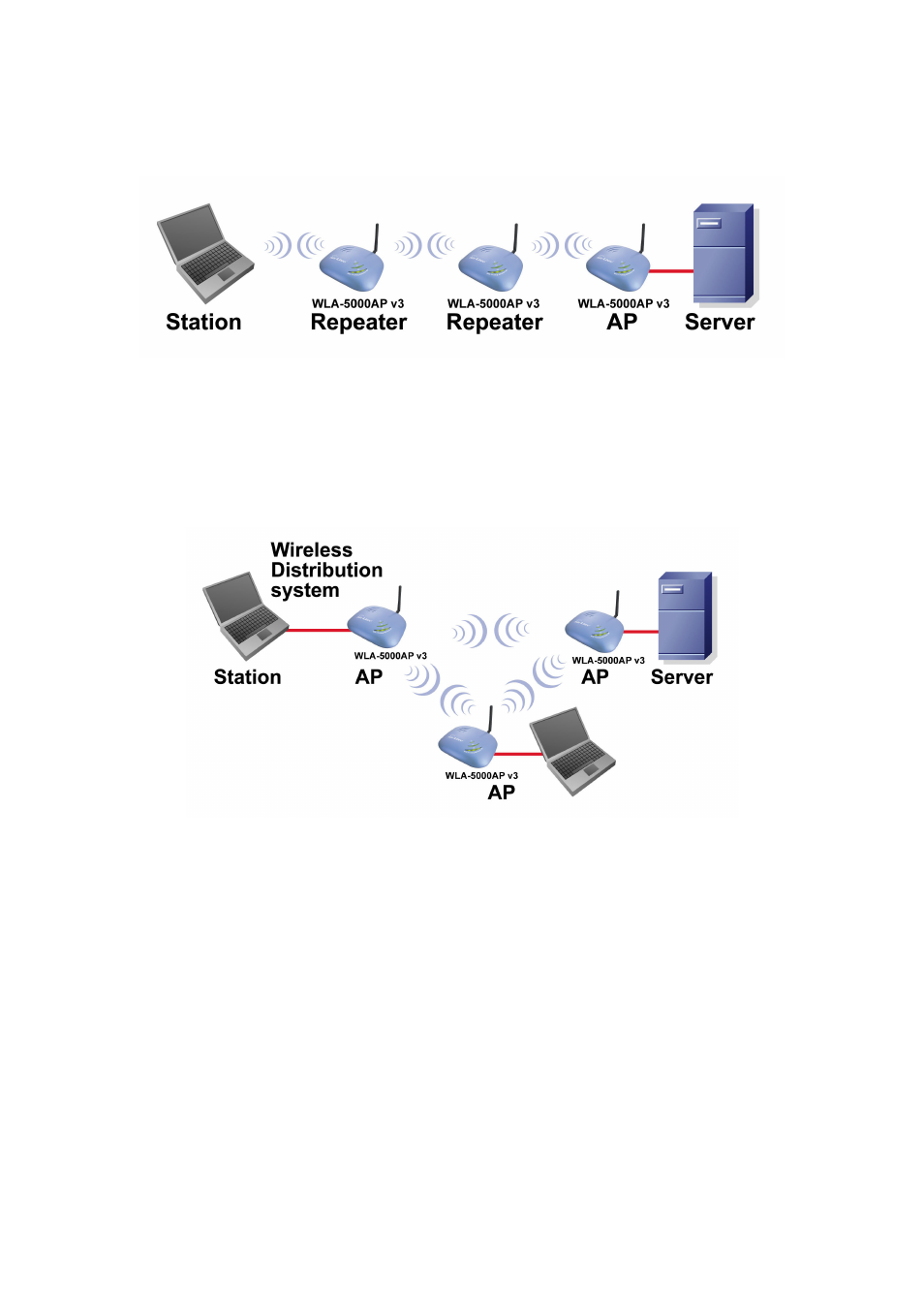

1.3.2 WDS Repeater Mode

In Repeater mode, the WLA-5000AP v3 set as a repeater extends the range of wireless LAN. The remote
wireless AP/Router must also support WDS.

1.3.3 WDS Bridge Mode

When configured to operate in the Wireless Distribution System (WDS) Mode, the WLA-5000AP v3 provides
bridging functions between the LAN behind it and separates LANs behind other APs’ operating in the WDS
mode. The system will support up to eight APs in a WDS configuration.

Note that a WLA-5000AP v3 runs in the WDS mode can also support wireless stations simultaneously. See
the diagram below:
