AirLive WL-2600CAM User’s Manual 46
information including IP, Port, MAC, Model, Firmware Version and Web Version.

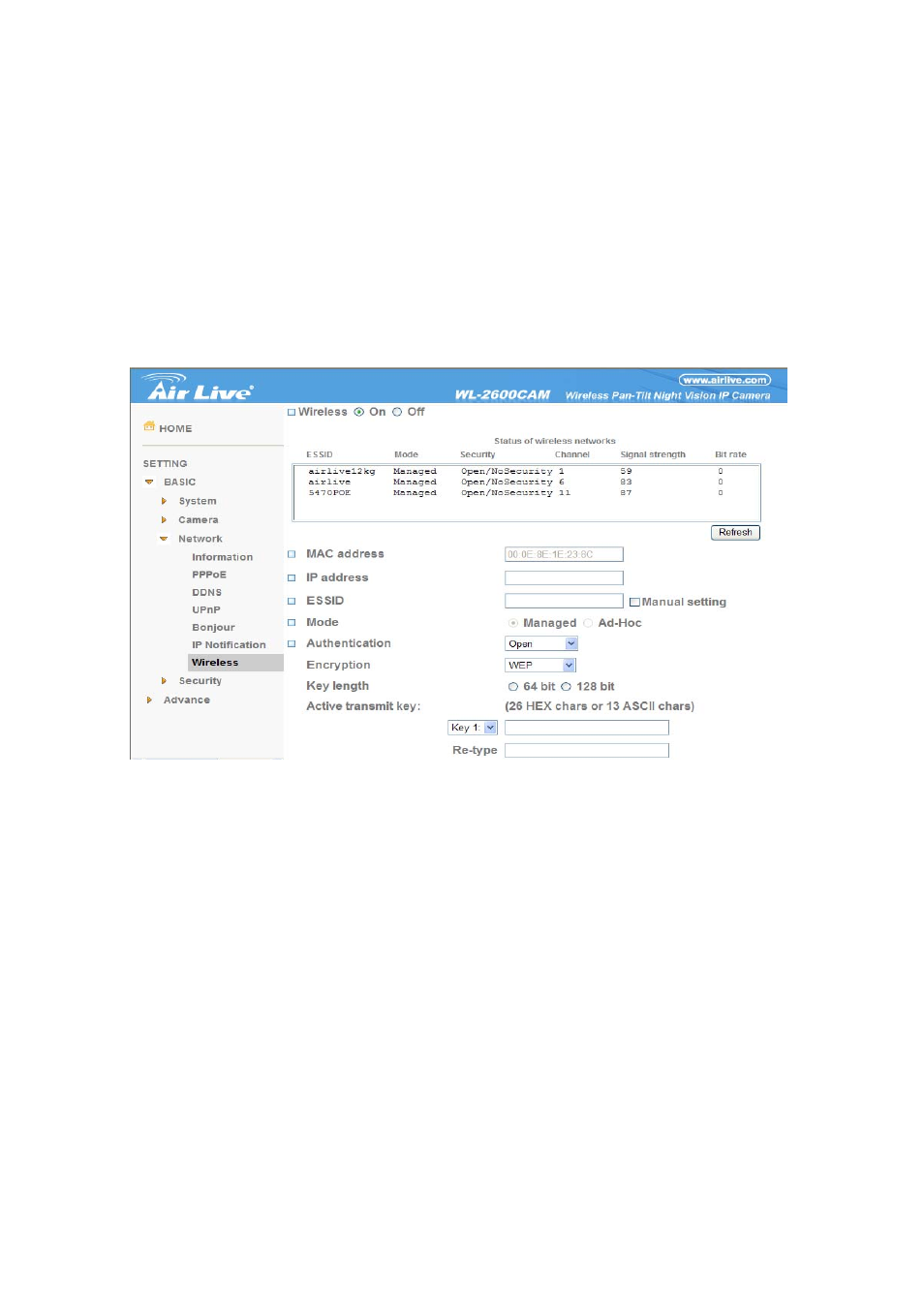

6.3.7 Wireless
The wireless network has to be set up by using cable network connection. After setting the camera
correctly, the wireless function can work with cable network connection. Wireless settings must be the
same as the access point or ad-hoc device. When changing the settings they should always be made first
in the camera and then in the wireless access point. This ensures that the camera is always accessible
when making changes.
¾ Status of Wireless Network
This list is the result of network scan. The network is currently linked to will be shown in blue. The
following information is provided.
z ESSID - The name of a wireless network (or ad-hoc device). If the same name occurs several
times this means that several access points for that network were found. The camera cannot
be configured to only associate with one particular access point.
z Mode - Shows if the network type is Master (access point or router) or Ad-Hoc (another client).
z Security - Shows which type of security the network uses. See below for the security types
supported by the camera.
z Channel - Shows the wireless channel currently in use.
z Signal strength - Shows the signal strength.
z Bit rate - Shows the bit rate in Megabit/s. This can only be shown for the access point currently
in use. Note that the bit rate shown is the current rate, and that this value may vary over time.
¾ Wireless Setting
These settings control how the camera interacts with the wireless network. It is also possible to
