AirLive WL-2600CAM User’s Manual 28
6.2.2 MPEG4

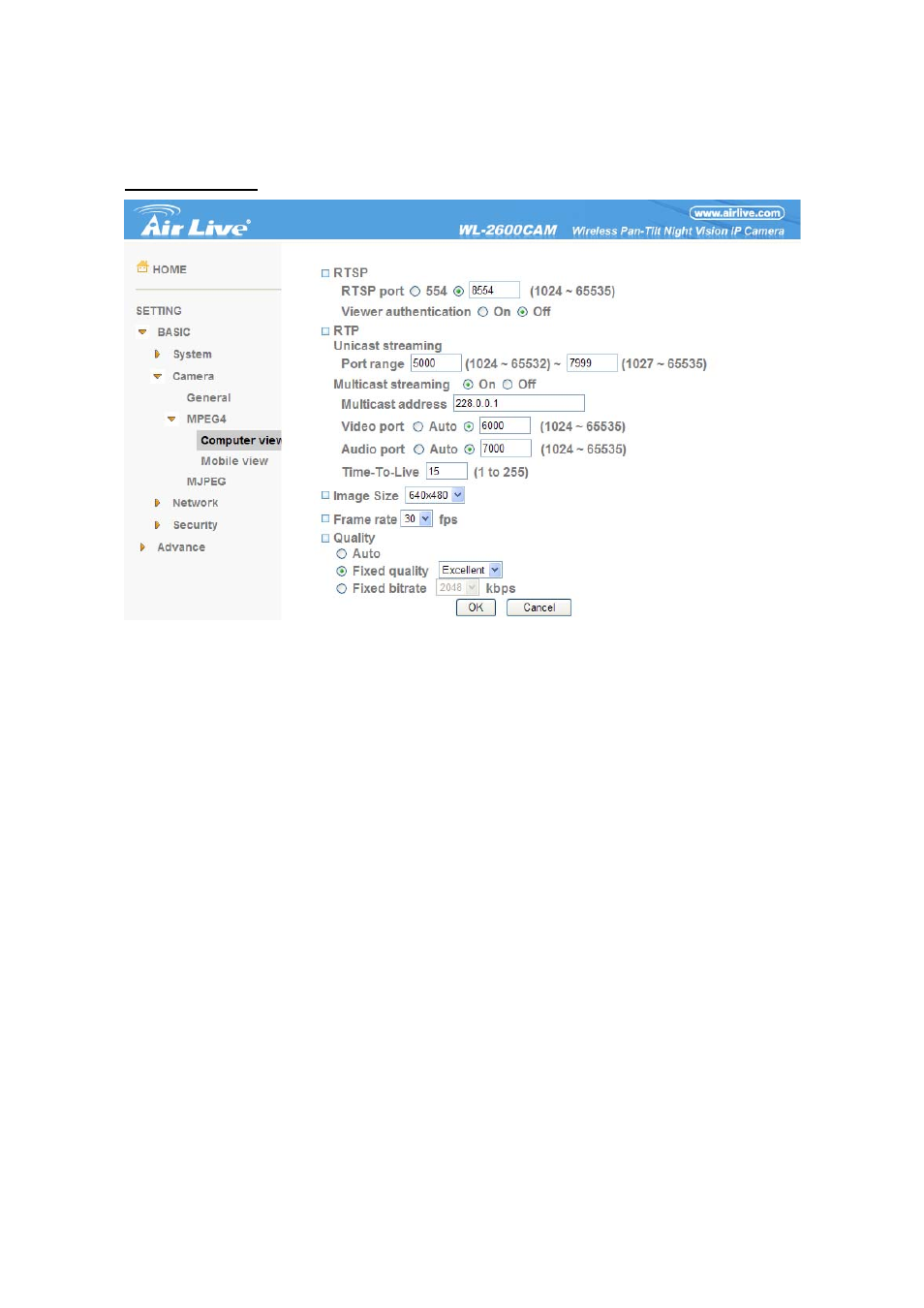

A. Computer View
¾ RTSP (if RTSP mode is On, please check “Setting → Basic → Camera → General ”)
z RTSP Port: Specify the transmission port number of RTSP streaming. The default value is
8554.
z Viewer Authentication: If the viewer authentication is On, the users will be requested to key-in
username and password when viewing through RTSP.
¾ RTP (if RTSP mode is On, please check “Basic→ Camera → General“)
z
Unicast Streaming Video / Audio Port Range: Specify the transmission port range of RTP
streaming video. RTP will select a port randomly from the range.
z Multicast Streaming (If it is ON)
z Multicast Address: Specify the multicast server address.
z Video / Audio Port: Specify the transmission port number of the video data. Specify an even
number from 1024 to 65534.
z Time to Live: Set the maximum TTL that multicast can pass through.
¾ MPEG4 view port (if RTSP mode is Off, please check “Basic → Camera → General”)
z Unicast Streaming Video / Audio Port Number: Specify the transmission port number of the
video data. It is initially set to 8090. You can specify an even number from 1024 to 65534.
¾ Image Size: Specify the image size when the network camera transmits. You can choose among
640 x 480, 320 x 240 and 160 x 120.
¾ Frame Rate: Set the frame rate of the MPEG4 image. You can choose values from 5, 10, 15, 20,
