AirLive WL-1500R - Manual (Page 37)

WPA / WPA2

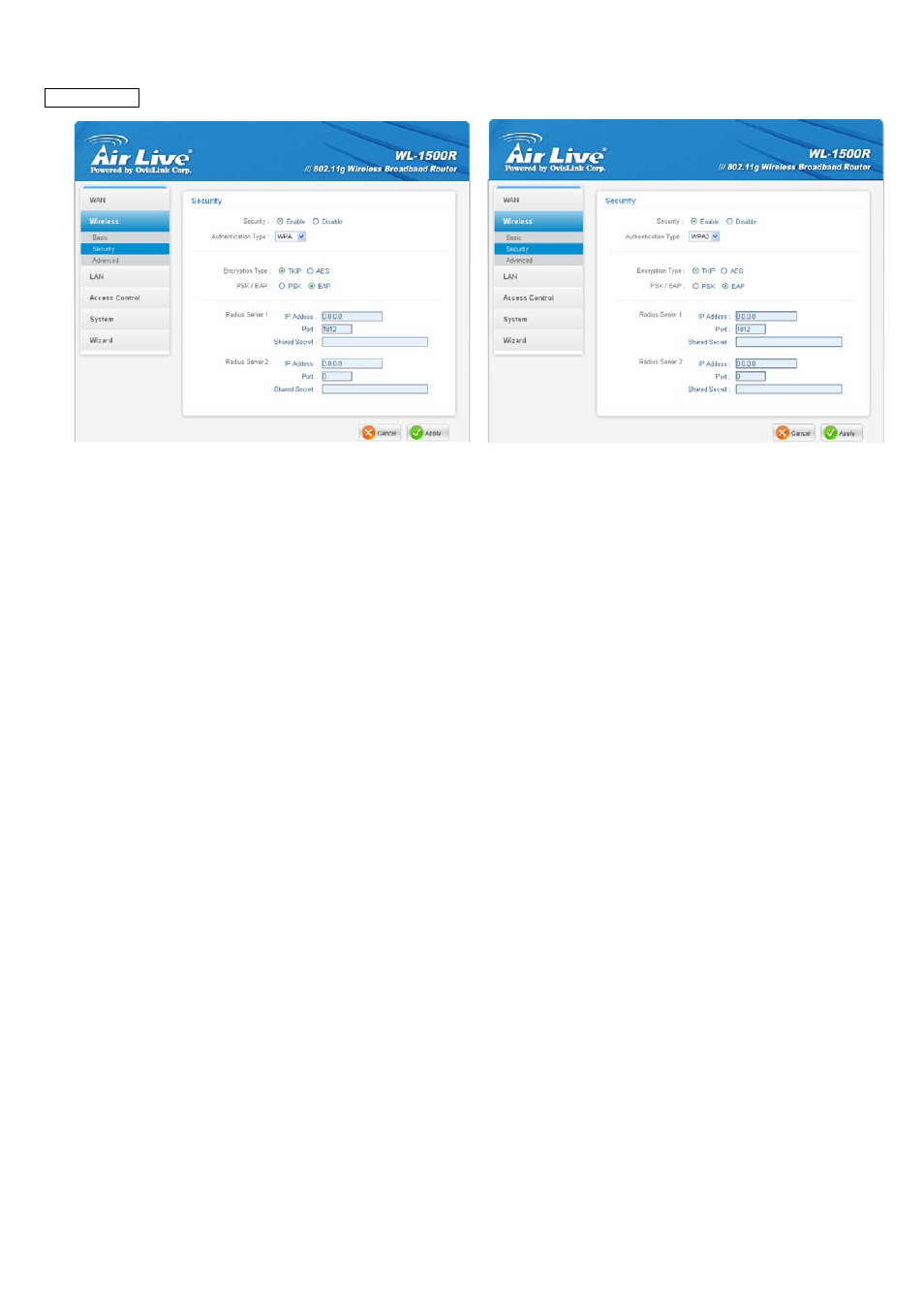

Figure 46. Figure 47
If WPA or WPA2 EAP is selected, the above screen is shown. Please set the length of the encryption key and the
parameters for the RADIUS server.
Encryption Type: Select the encryption type for TKIP or AES encryption.
RASIUS Server:
Enter the IP address, Port used and Shared Secret by the Primary Radius Server.
Enter the IP address, Port used and Shared Secret by the Secondary Radius Server. (optional)
AirLive WL-1500R User’s Manual
34
