１５７

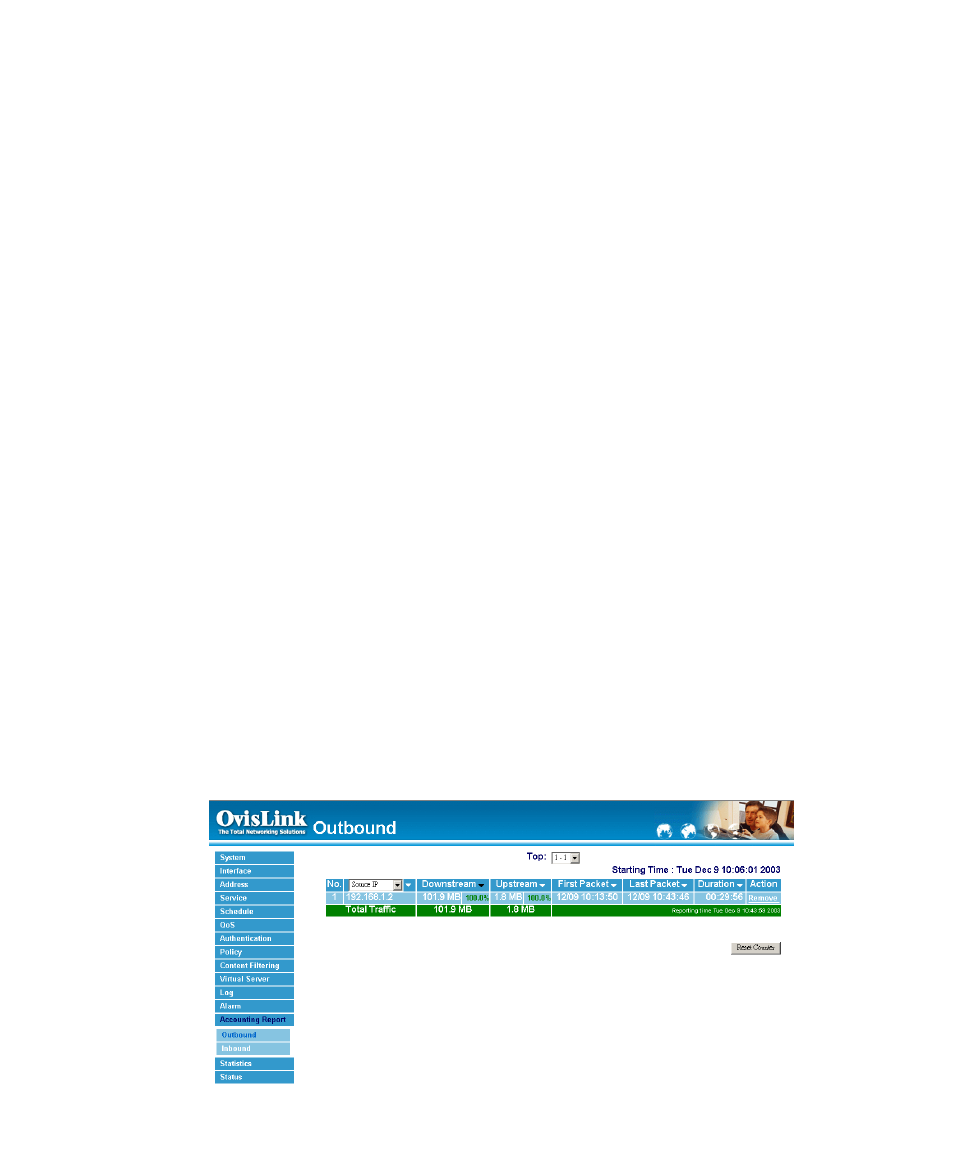

Outbound source IP Accounting Report
Source IP：When LAN users use Security Bandwidth Manager to connect to WAN service
server, all of the Downstream/Upstream/First Packet/Last Packet/Duration log of the source IP
will be recorded.
Definitions:
TOP：Select the data you want to view, it presents 10 results in one page.
Pull-down menu selection
Source IP：The IP address used by LAN users who use Security
Bandwidth Manager to
connect to WAN service server.
Downstream：The percentage of downstream and the value of each WAN service server
which uses Security Bandwidth Manager to LAN user.
Upstream：The percentage of upstream and the value of each LAN user who uses Security
Bandwidth Manager to WAN service server
First Packet：When the first packet is sent to WAN service server from LAN user, the sent
time will be recorded by the Security Bandwidth Manager.
Last Packet：When the last packet sent from WAN service server is received by the LAN user,
the sent time will be recorded by the Security Bandwidth Manager.
Duration：The period of time which starts from the first packet to the last packet to be
recorded.
Total Traffic：The Security
Bandwidth Manager will record the sum of packet sent/receive
time and show the percentage of each LAN user’s upstream/downstream to WAN service
server.
Reset Counter：Click Reset Counter button to refresh Accounting Report.
!!
