4. Web Management
AirLive POE-FSH808AT User’s Manual
20

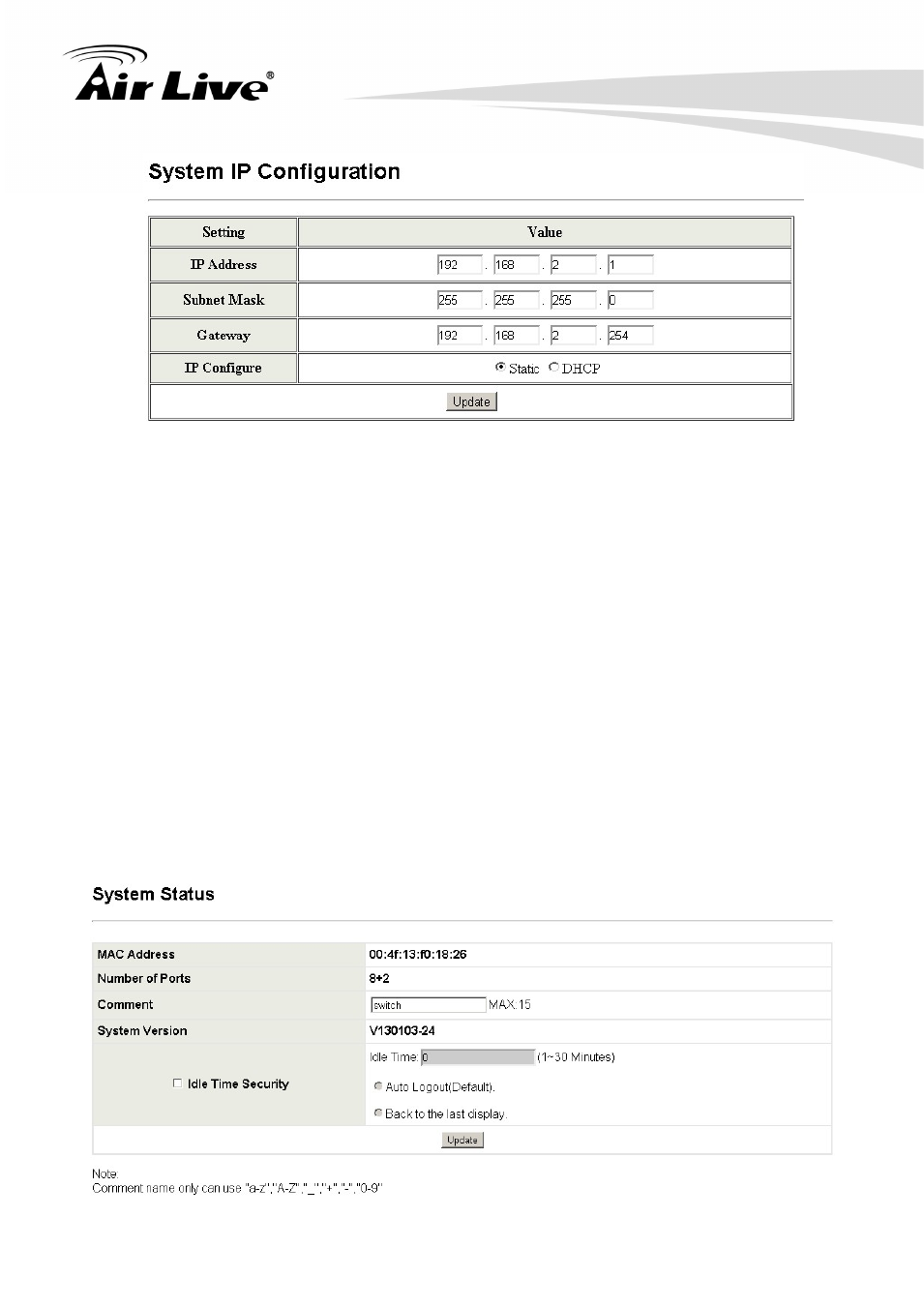

User can configure the IP settings, Subnet Mask, Gateway as below:
 IP address: Manually assign the IP address that the network is using. The default IP is
192.168.2.1
 Subnet Mask: Assign the subnet mask to the IP address.
 Gateway: Assign the network gateway for industrial switch.
If you change the IP address of this switch and then press Update. It will show “ update
successfully” then press Reboot button. It will enter user login screen automatically.
4.4.3 System Status
This page is used to check the status of switch, including Switch MAC address and
software version. The comment field allows the network administrator to input an
easy-to-remember nickname for this switch. The legal characters are “
a~z” and “A~Z”, “_”,
“ -“, “+”, “0 ~9”, excluding special character.
