5. Administrating the Device
AirLive POE-5010HD User’s Manual 31
5.3 Audio/Video/Image
The Audio/Video/Image menu contains three sub-menus to provide the video and audio
settings for the camera.
When completed, click Apply to save the settings.

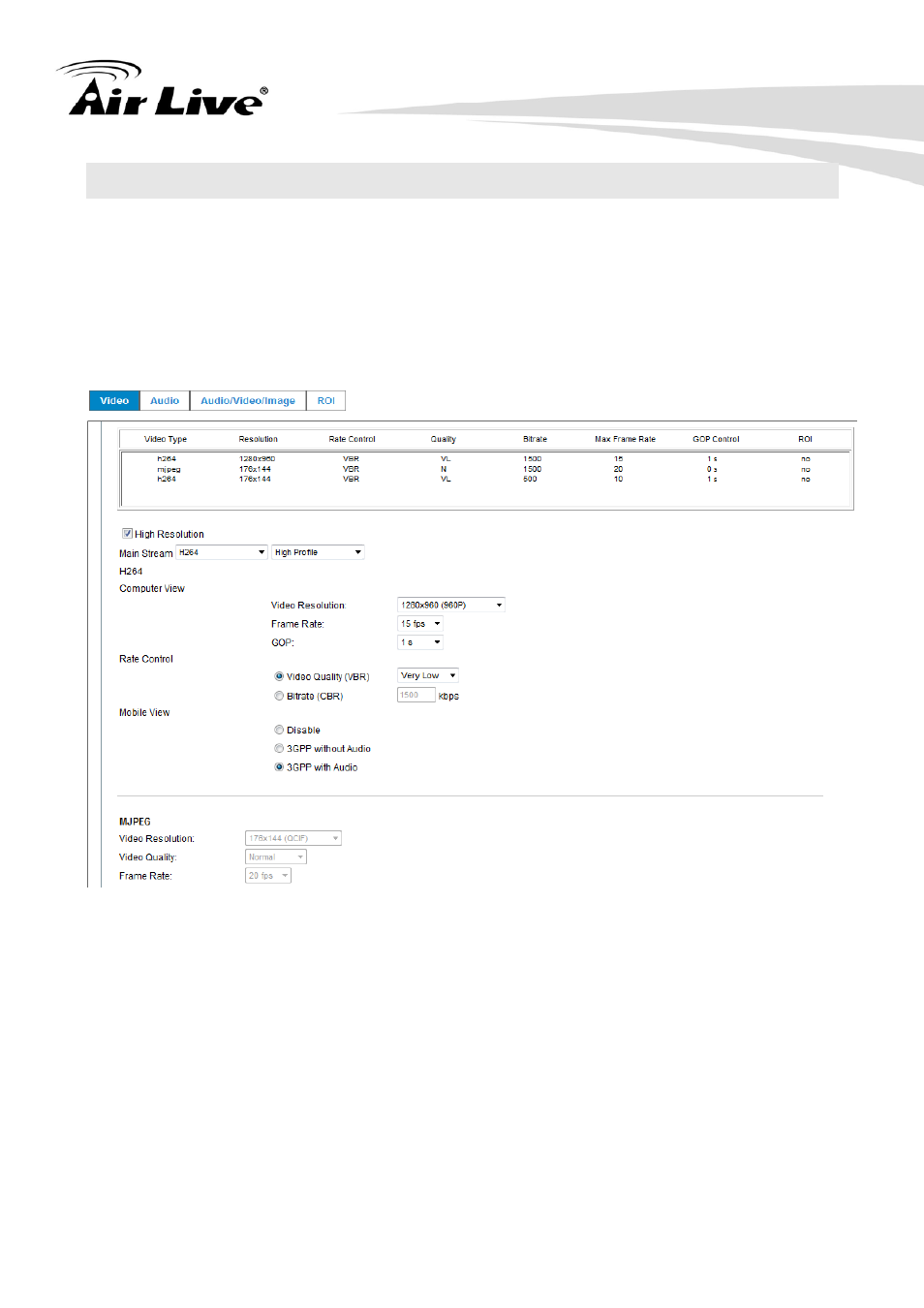

5.3.1 Video
High Resolution: Select this option to enable the camera to capture images in high
resolution mode (up to 2592 x 1960 @ 8fps). When the option is selected, you can select
the desired option from the Main Stream pull-down menu and then complete the following
to set the camera to capture images in H.264, MPEG4, or MJEPG format.
- Computer View: Select the desired resolution that you can view on PC from the
Video Resolution pull-down menu: up to 2592 x 1960 if High Resolution is
selected.
You also need to select a proper setting of Frame Rate.
Please note that higher settings in Computer View and Frame Rate obtain better
video quality while it uses more resource within your network.
