1.2.1 LEDs
Power On - Normal operation.
Off - No power
PLC link On - The Powerline network is active.
This means that at least one other Powerline device
was detected.
Off - Powerline network is not available - no other
Powerline devices were detected.
Flashing (Blue) - Received data rate via the Powerline
network is bigger than 80Mbps.
Flashing (Pink) - Received data rate via the Powerline
network is between 80 Mbps and
50Mbps.
Flashing (Red) - Received data rate via the Powerline
network is smaller than 50Mbps.
Ethernet On - Ethernet connection is active.
Off - No Ethernet connection.
Flashing - Data is being transmitted or received via the
Ethernet Port.

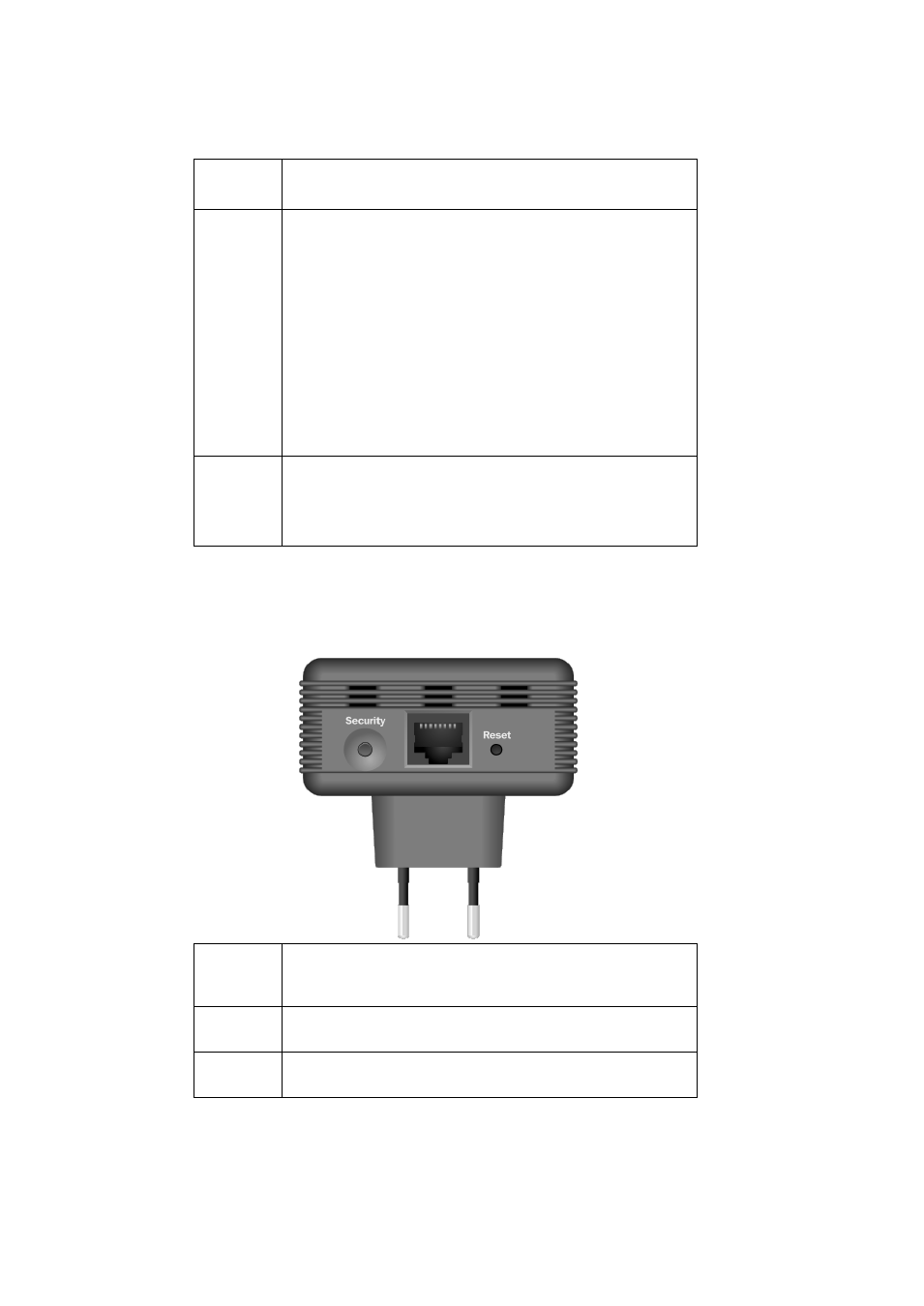

1.2.2 Buttons
Security
Button Click this button to connect the device to the Powerline
network.
Please refer to Security Button section for more details.
LAN Port Use standard LAN cables (RJ45 connectors) to connect
the device to the port.
Reset
Button This button is used to clear ALL data and restore ALL
settings to the factory default values.
The rear panel contains only the AC plug and a sticker containing the 200Mbps Powerline Ethernet
Adapter's Password. (Each Powerline device has a unique Password.)
