AirLive HP-3000E User’s Manual
8

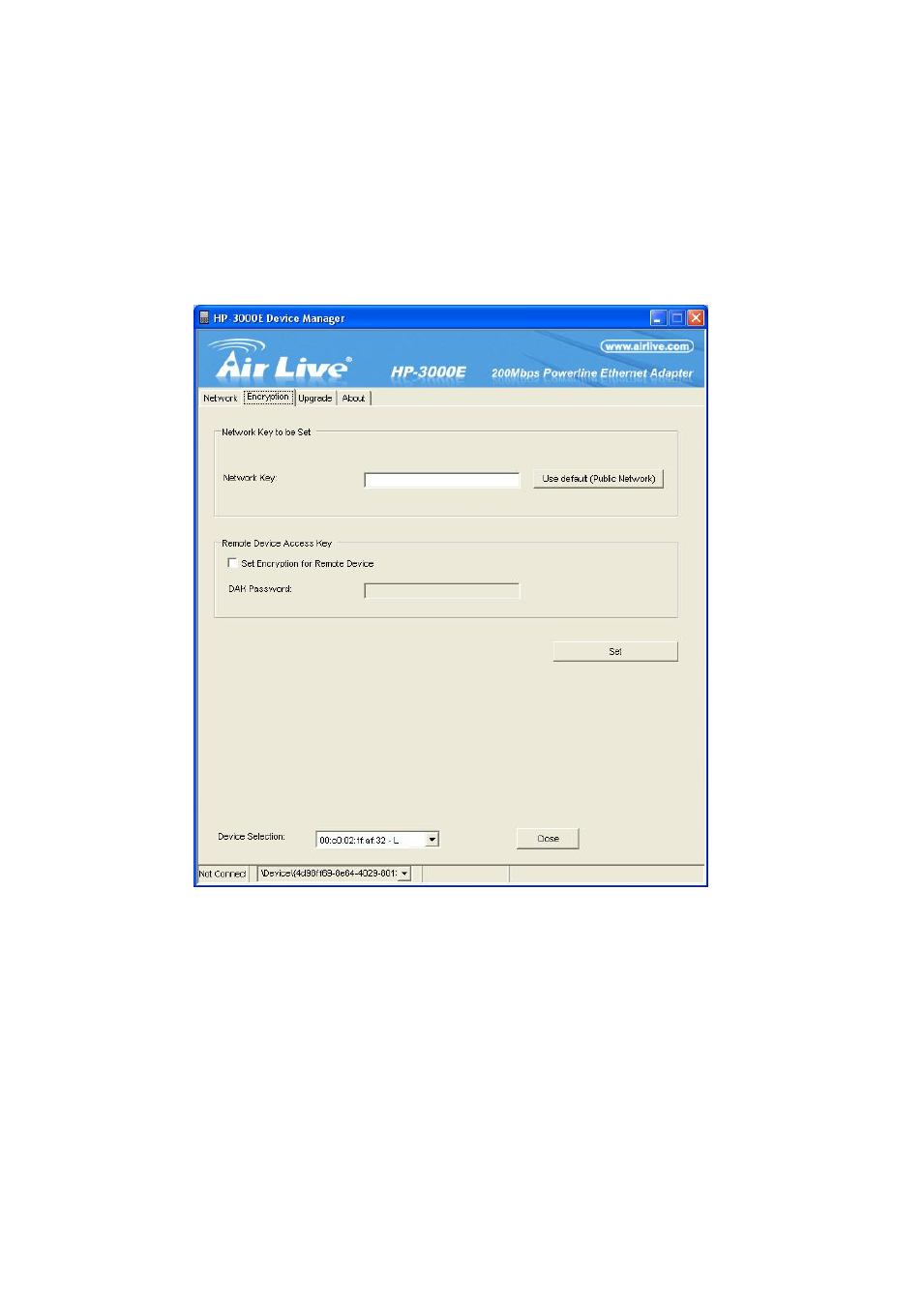

8. The status bar on the bottom of the screen indicates the connection status of the Powerline
device. Click the Encryption tab. You will see a screen like the example below.
9. Enter the desired Network Password in the field provided. Enable the Set Encryption for
Remote Device and enter the Remote Device password in the DAK Password field. Click Set
to save this value.
If the DAK Password is left blank, the Network Key will be saved to the local Powerline
device only.

All Powerline devices must use the same Network Key, or they will not be able to
communicate with each other.

On this screen, you can also click Use default to use the 200Mbps Powerline Ethernet
Adapter's default Network Key.
10. Click Close to exit the HP-3000E utility.
