AirLive Ether-FSH2422W User’s Manual

4-8-1 Priority Mode

There are three priority modes available to specify the priority of packets being serviced. Those include

First-In-First-Out, All-High-Before-Low, and Weight-Round-Robin.

First-In-First-Out: Packets are placed into the queue and serviced in the order they were

received.

All-High-Before-Low: The packets of low weight will be serviced after all of the packets of

high weight are serviced.

Weight-Round-Robin: All queues are serviced round-robin: a packet from one queue, a

packet from the next and so on. Similar to round-robin, WRR (Weight-Round-Robin) means

packets are accessed round-robin style, but weight can be given priorities. For example, four

packets from a high weight might be serviced, followed by two from a low weight.

Select the priority mode by click the radio button beside the mode name and click Update to

have the configuration take effect.

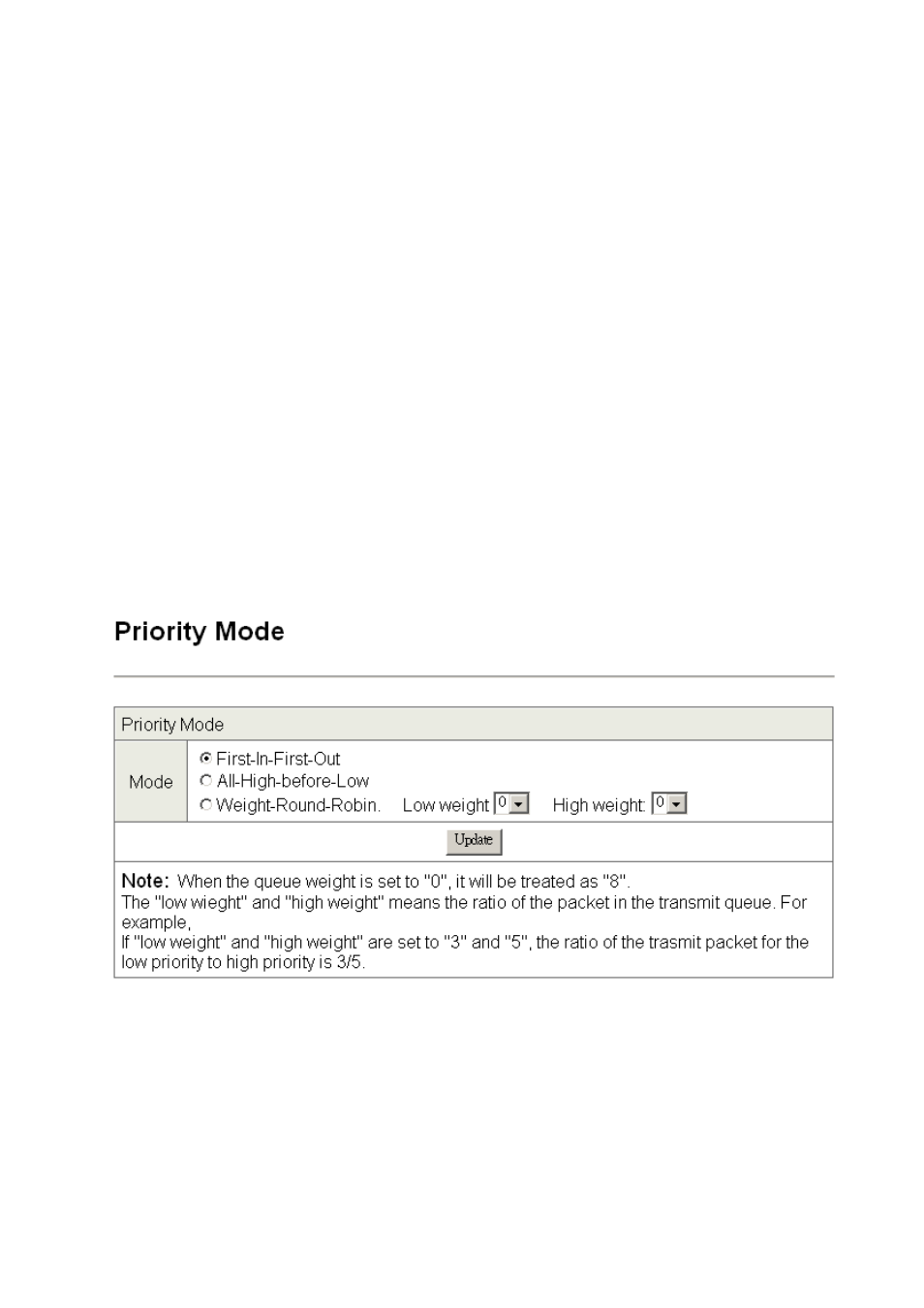

Priority Mode interface
