AirLive Ether-FSH2422W User’s Manual
20
4-5-4 Broadcast Storm Control
The switch implements a broadcast storm control mechanism. Tick the check boxes to have them
beginning to drop incoming broadcast packets if the received broadcast packet counts reach the
threshold defined. Each port’s broadcast storm protection function can be enabled individually by
ticking the check boxes.

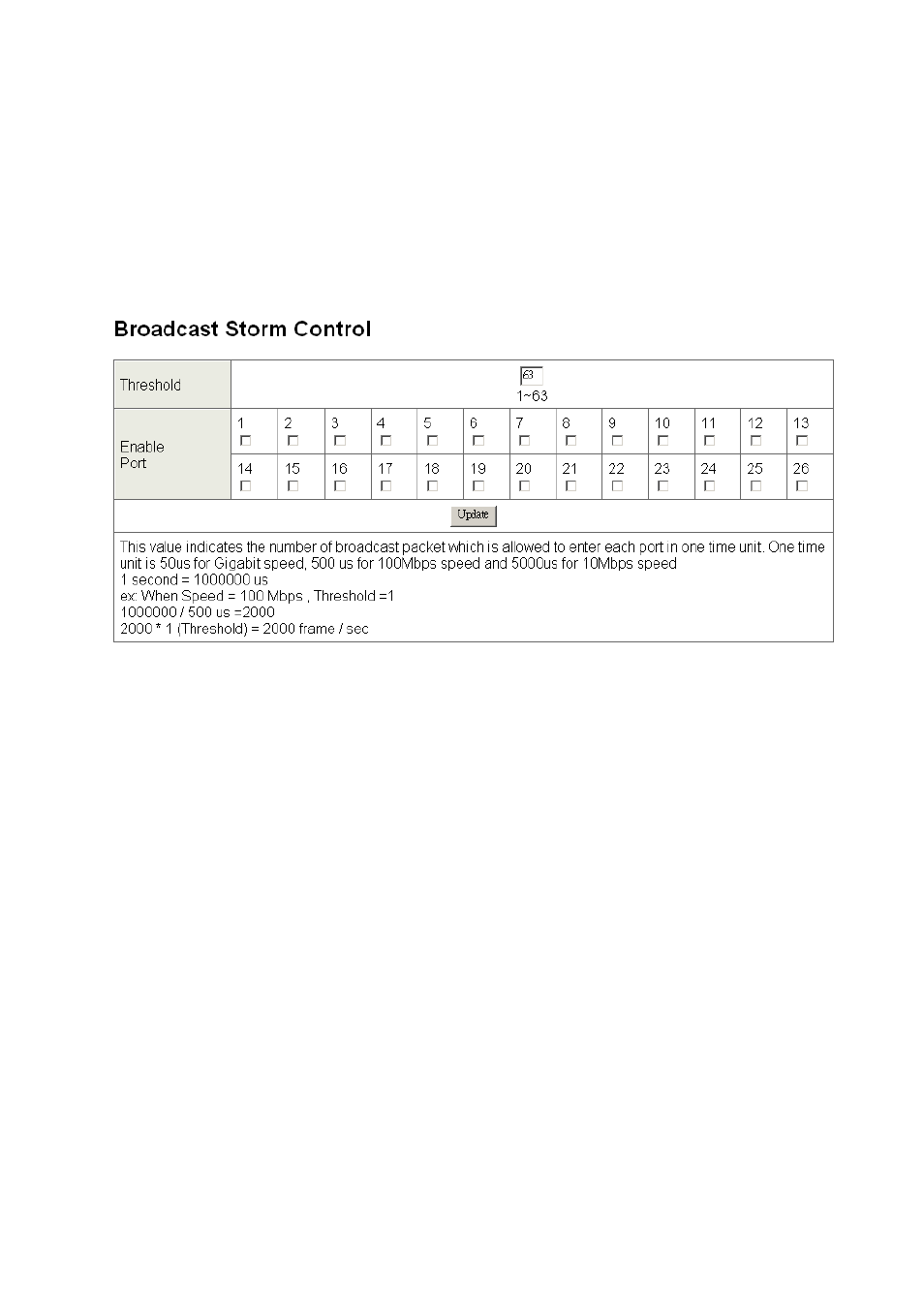

Broadcast Storm Control interface
„ Threshold: Type in the threshold in the range between 1 and 63 to limit the maximum byte
counts, which a port can send or receive in a period of time.
„ Enable Port: Having ticked the boxes, the port will stop transmitting or receiving data when
their sending byte counts or receiving byte counts reach the defined threshold.
„ Click Update to have the configuration take effect.
