AirLive ES-4000 v2 - Manual (Page 12)

2.2 Software Installation
Step1. Connect the MIS engineer’s PC and ES-4000V2’s port 1 to the same Hub / Switch, and launch
the browser (IE or Netscape) to link the ES-4000V2 appliance. The default IP address is http :
//192.168.1.1
Step2. Administrator will be requested for User Name and Password when entering ES-4000V2
system. (Figure 2-1)
„ User Name : admin
„ Password : airlive
„ Click OK .

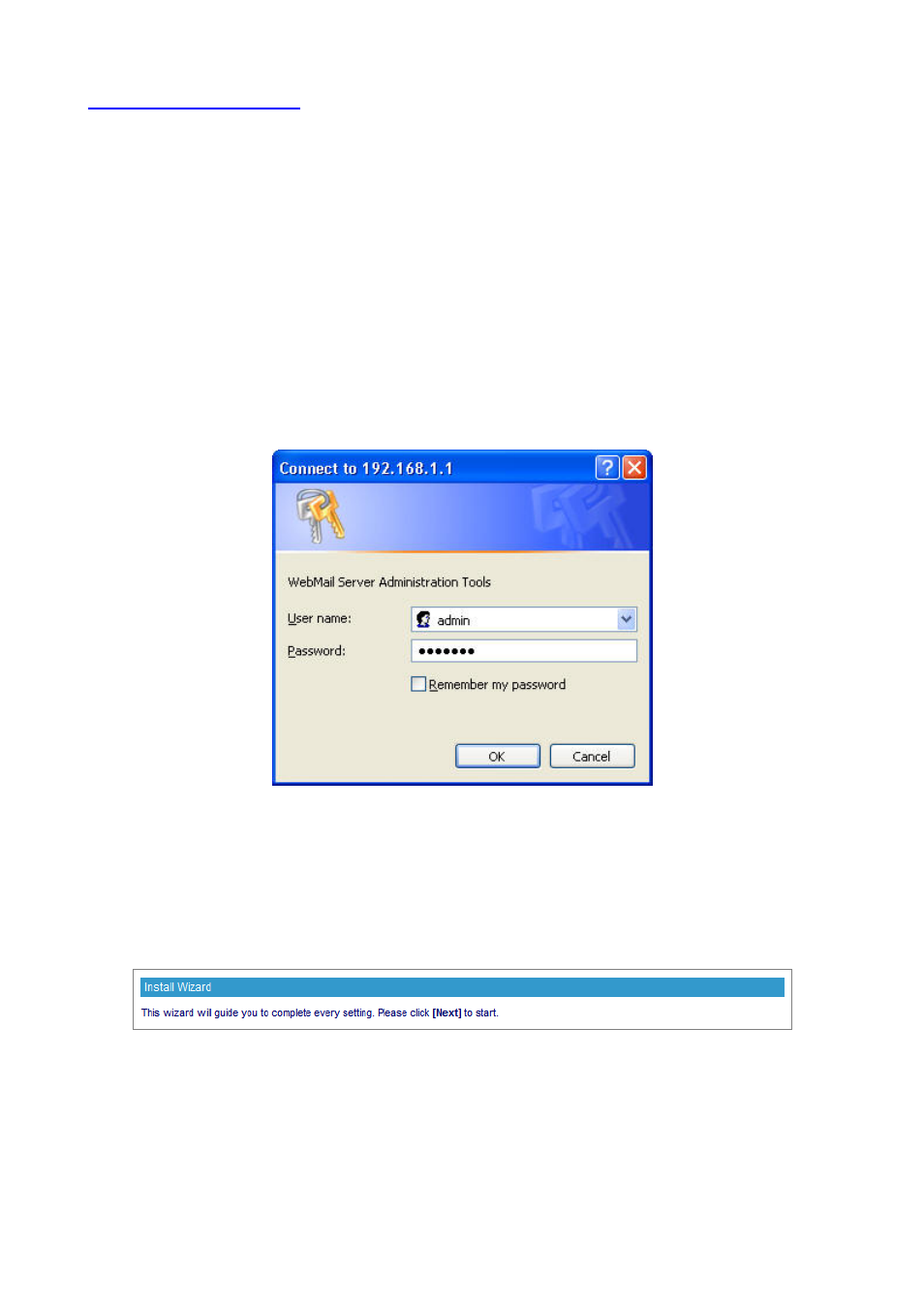

Figure 2-1 Login page
Step3. When user first uses the ES-4000V2 management interface, system will automatically enter
Install Wizard. It will guide user to make settings. Click Next. (Figure 2-2)
Figure 2-2 Enter the setting wizard
8
