AirLive CU-720PIR - Manual (Page 67)

4. Monitor the Image Section
AirLive CU-720PIR User’s Manual 62
SAMBA Path:
Set working directory path of SAMBA server.

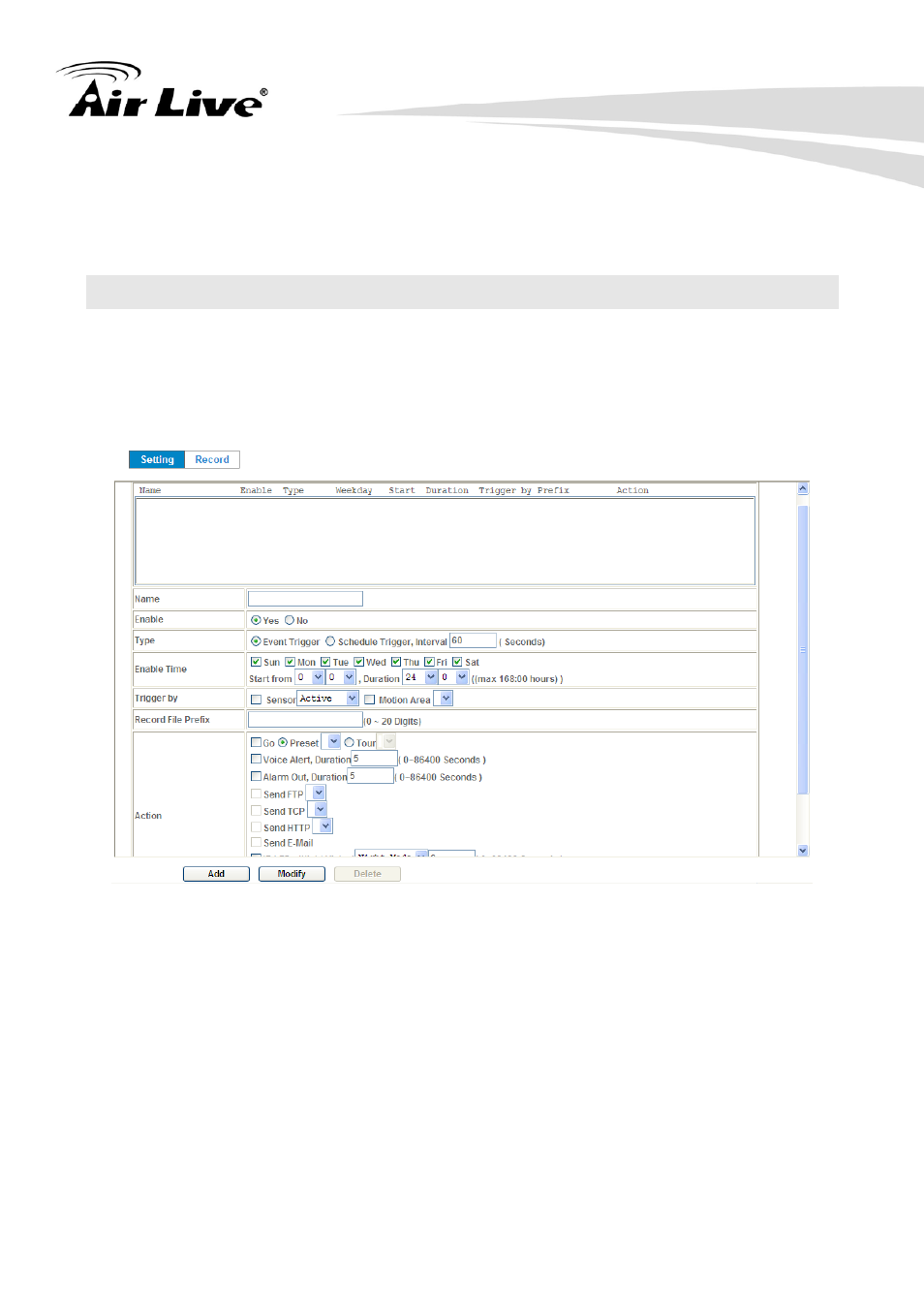

4.14 Event Schedule- Configure the event schedule
This menu is used to specify the schedule of Event or Schedule Trigger and activate the
some actions provided by this device. Where the Schedule Trigger will be activated by
user-define interval without event happened.
4.14.1 Setting
Name:
Name of the Event or Schedule.
Enable:
Enable or disable this Event or Schedule.
Type:
Event trigger or Schedule trigger.
Enable Time:
Define the feasible time slot.
