4.3 Interface Setup
Click an Interface Setup link to set ATM VC values, ISP Encapsulation, configure multi- connection
settings, and LAN configuration.

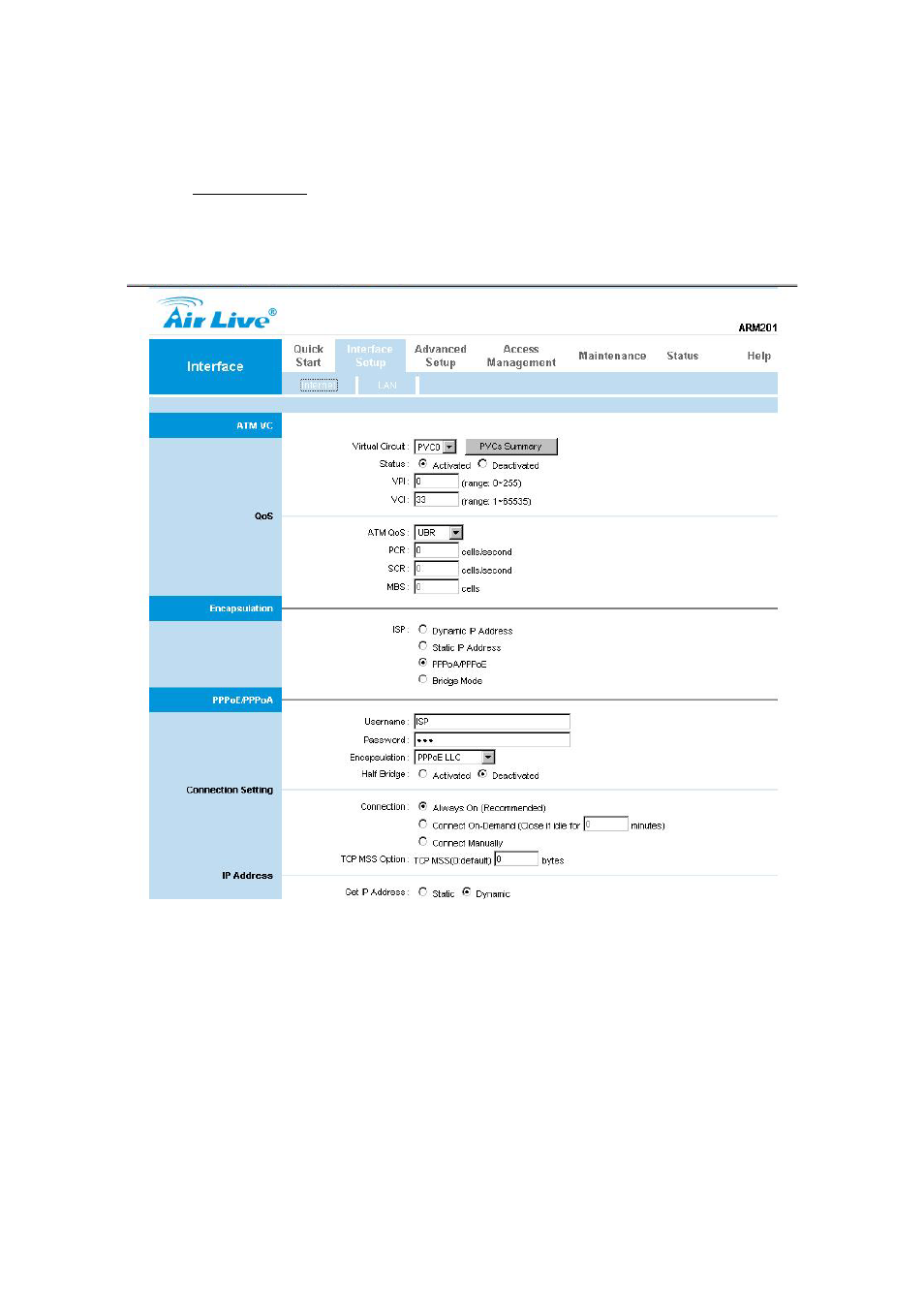

4.3.1 Internet
[ATM VC]
ATM settings are used to connect to your ISP. Your ISP provides VPI, VCI, settings to you. In this Device, you
can totally setup 8 PVCs on different encapsulations if you apply 8 different virtual circuits from your ISP. You
need to activate the VC to take effect. For PVCs management, you can use ATM QOS to setup each PVC
traffic line’s priority.
Virtual Circuit: Select the VC number you want to setup.
VPI: Virtual Path Identifier. The valid range for the VPI is 0 to 255.
VCI: Virtual Channel Identifier. The valid range for the VCI is 1 to 65635 (0 to 31 is reserved for local
management of ATM traffic).
