LCU-ONE CAN connected to MXL QM and EVO3 QM
User Manual
Release 1.04
1 3
3.2 – LCU-ONE CAN + GPS MODULE Connection

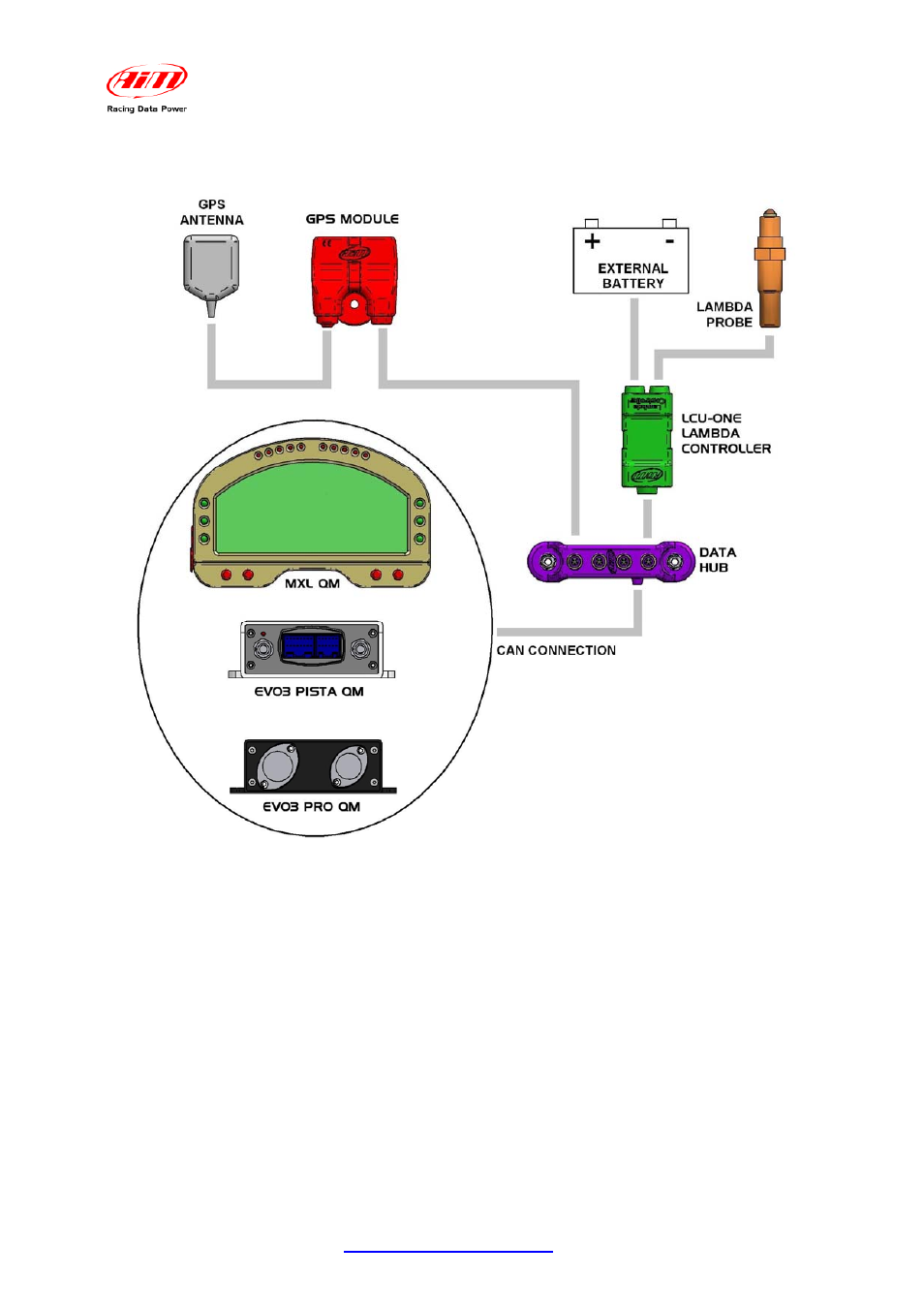

Lambda controller connection to other CAN peripherals scheme is shown above.
We suggest to insert a 10 A fuse in series between External Battery and Lambda controller
to protect the latter.
LCU-ONE CAN is to be powered, like the logger, by the engine master switch .
As far as connection to the loggers is concerned, please refer to those systems user
manual.
