LCU-ONE CAN connected to MXL QM and EVO3 QM
User Manual
Release 1.04
In case a fuel not included in the database is being used and only in case its
Stoichiometric value

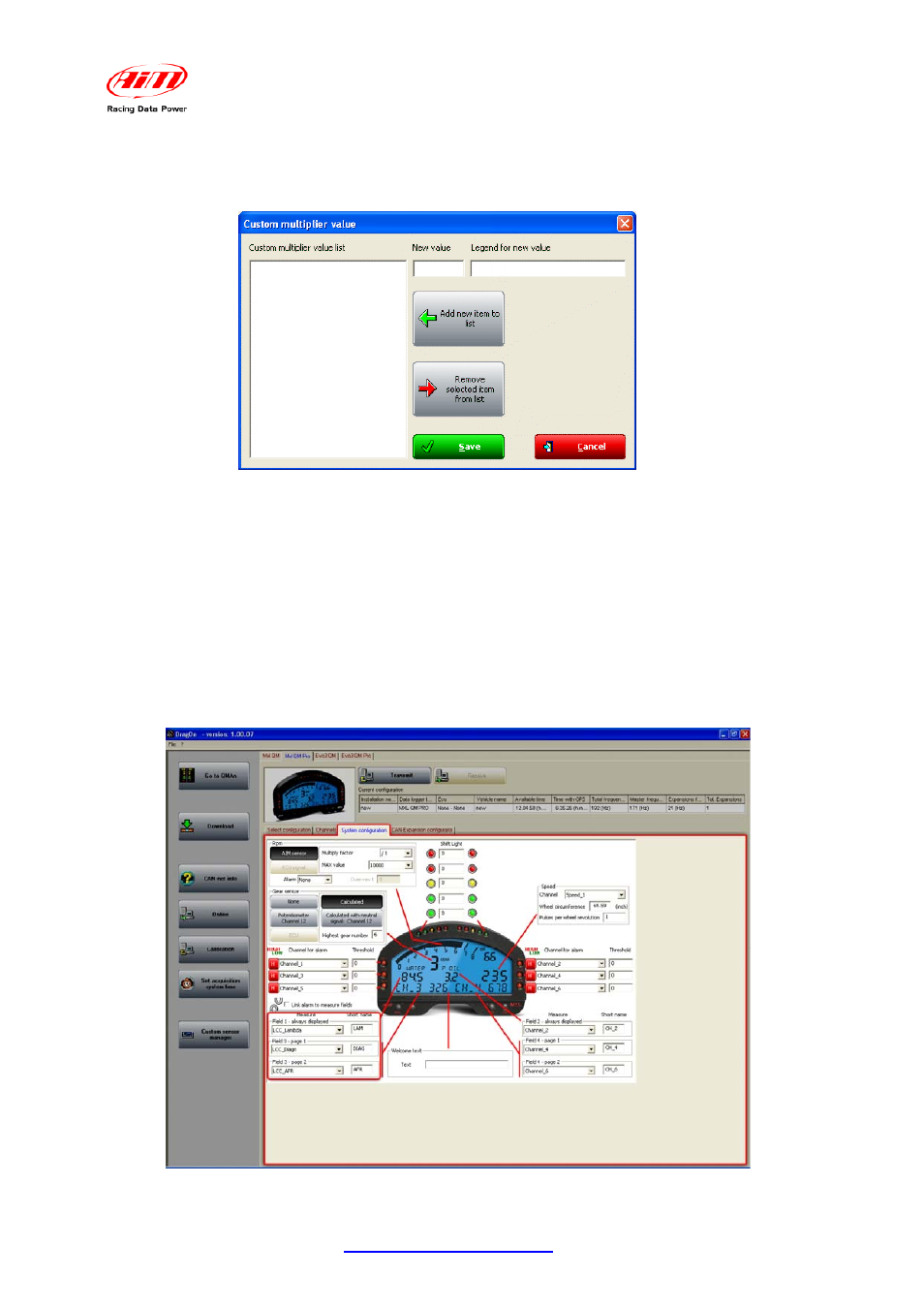

is known, press “Add custom value” button and the window shown
below appears.
Fill in the window with Multiplier value and related legend. Press “Add new item to list” and
then “Save”.
Likewise, selecting a multiplier from the left box labelled “Custom multiplier value list” and
pressing “Remove selected item from list” button the multiplier is removed.
Once enabled/disabled the channels, it is possible to decide if and what Lambda channels
to show on the display, depending on the logger and on the connected peripherals. In case
of an MXL QM, Lambda channels can be shown setting them in “System Configuration”
layer as shown here below. In the example enabled channels are: LCC_Lambda,
LCC_Diagn and LCC_AFR AND each of them can be shown in one field of the display.
