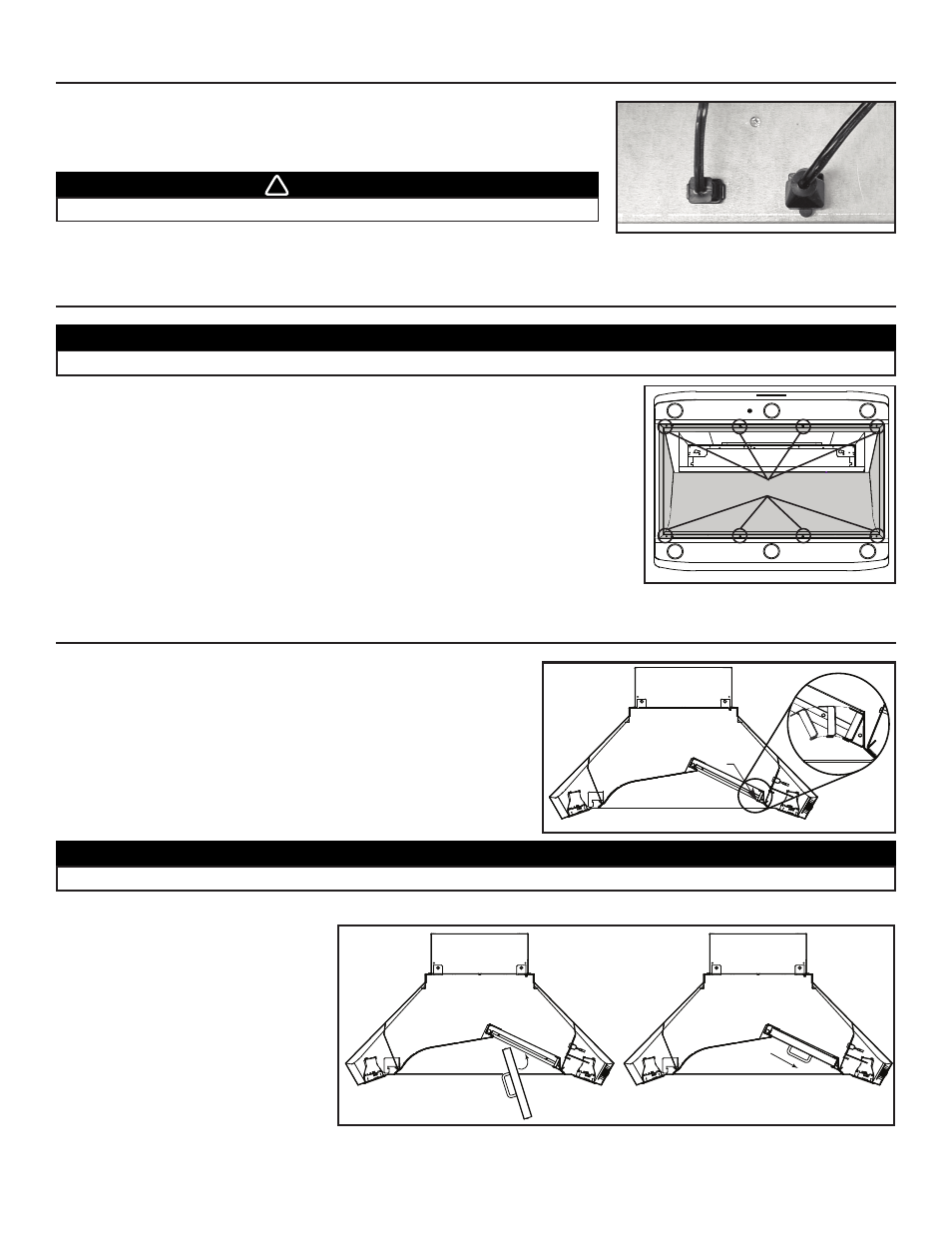

17.REINSTALL THE PAN
Using a Phillips no. 2 or Robertson no. 2 screwdriver and the retaining screws, reinstall the pan
(previously removed in step 6) inside the hood (shaded part on illustration beside).
HD0224
R ETAINING SCREWS LOCATION
Reinstall grease drip rail(s) (1). The illustration beside shows how to reinsert
the grease drip rail(s) into the range hood.
18.REINSTALL GREASE DRIP RAIL AND BAFFLE FILTERS
HD0225
Reinstall Evolutionary™ hybrid baffle filters
on the hood.
It is recommended to install side filters first
and finish with center one.
1. Insert one end of Evolutionary™ hybrid baffle
filter into the front channel of the hood.
2. Raise the other end toward the inside of
hood and insert in the grease drip rail of
the hood.
Replacement filters are available from your
dealer. See label inside hood for size and
part number.
1 2
HD0226
CAUTION
Remove protective plastic film covering Evolutionary™ hybrid baffle filters before installing them.
1
- 11 -
16.INSTALL THE BLOWER (INTERIOR OR EXTERIOR BLOWER)
Refer to instructions included with blower.
Once the blower is installed, plug the blower cord (A) into the female receptacle and the
power supply cord (B) onto the male connector inside the hood.
HE0078
WARNING
Do not plug the two cords into each other.
!
A B
CAUTION
Remove protective plastic film covering pan sides and tape over halogen lamps.
