Warning:
Make sure that all cable connections are removed and that all supply voltages are
disconnected from the device!
11.1
O
PENING THE SERVICE SLOT

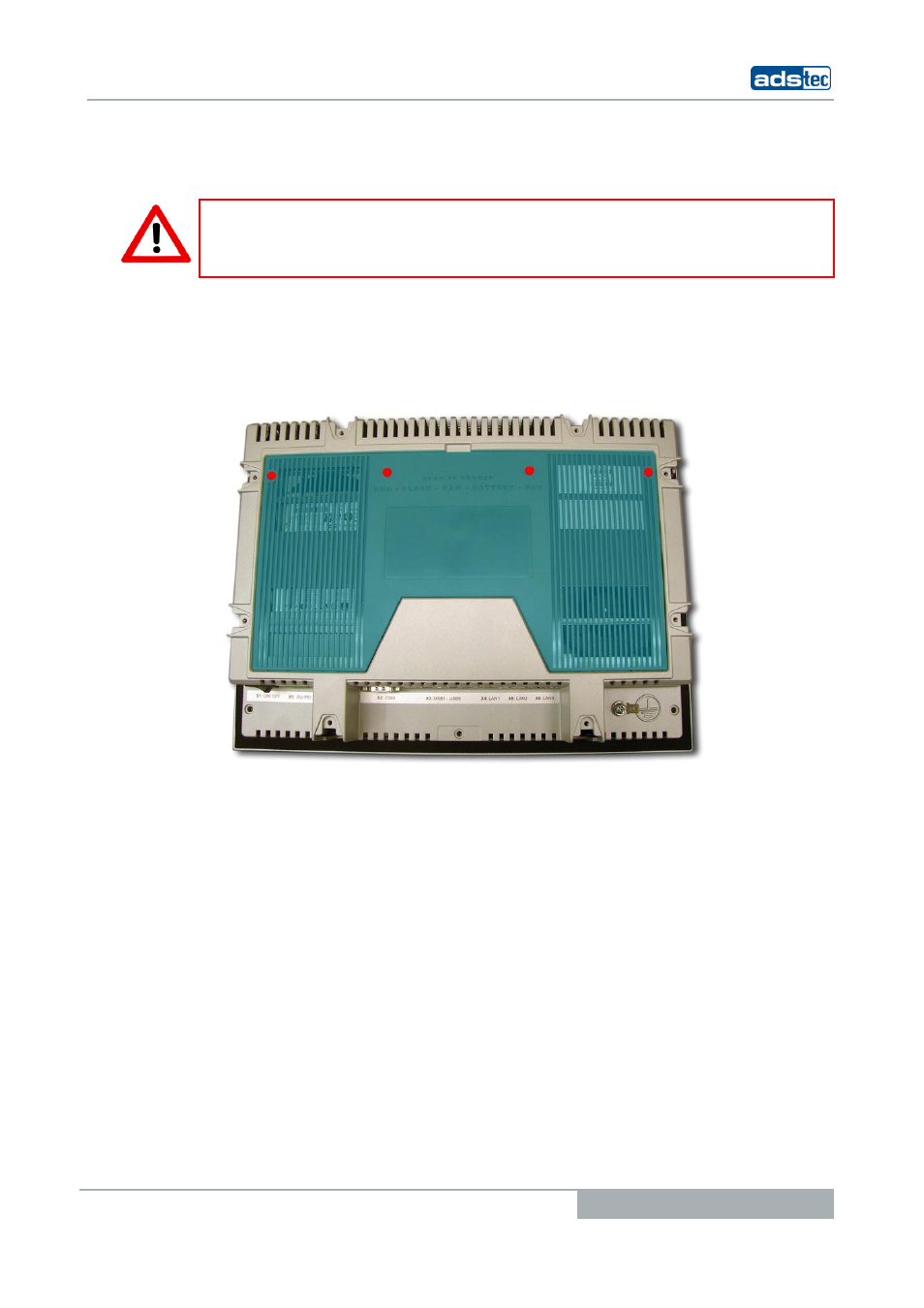

Remove the four screws holding the service slot on the rear of the device. The screws can
be removed by using a screw driver of Tx 10 size. By using the groove on the top of the
slot cover, you can tilt the rear cover to the front and finally remove it.
