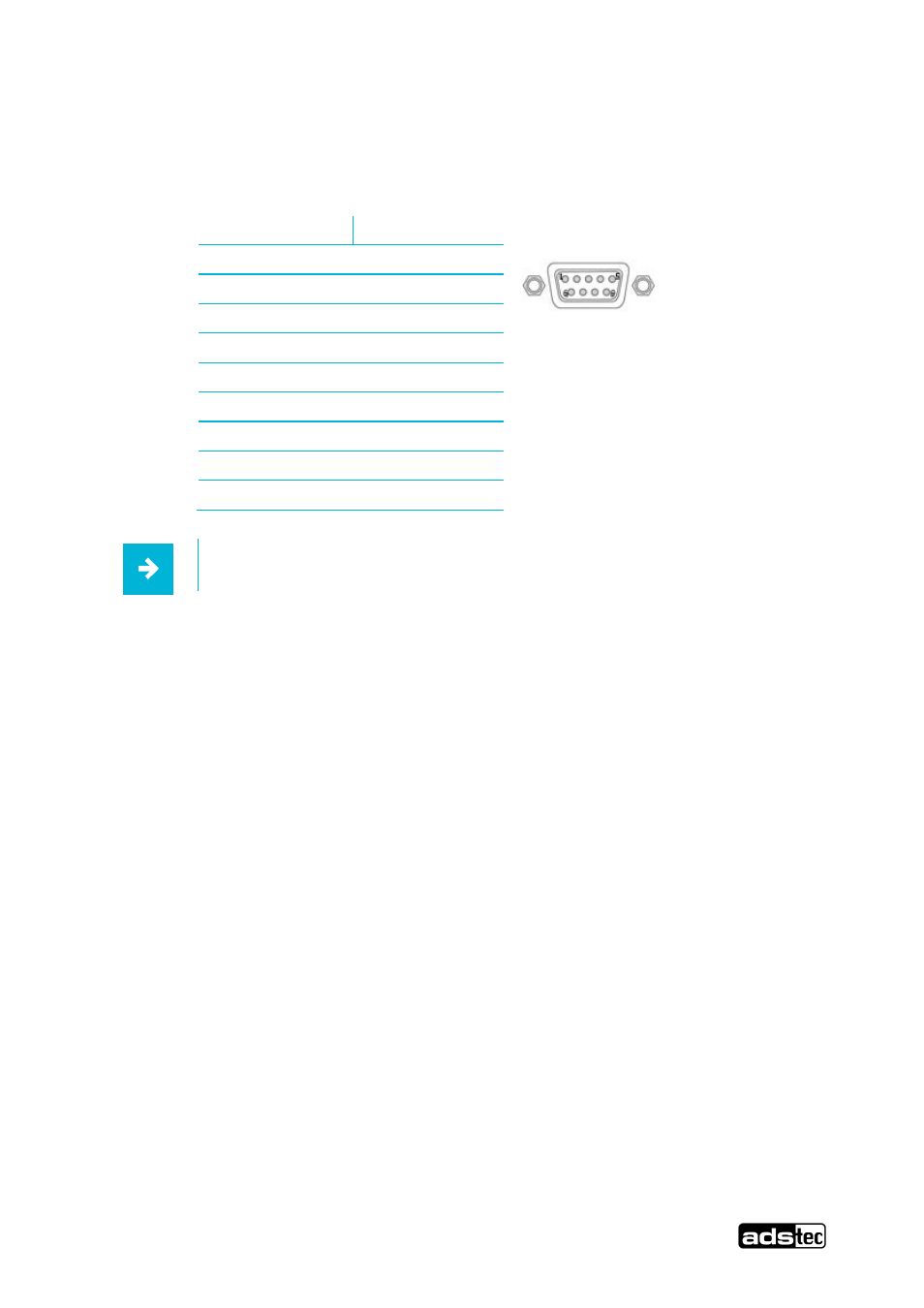

6.6 Serial COM Interface (RS232)
The serial interface is used for digital and for analogue data transmission as well. The RS 232 interface can be
connected by using a commercially available 9‐pin SUB‐D cable.
Pin‐Number Signal‐Name
1 DCD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
Note:
This interface is not electrically isolated.
