IPC1300 13
© ads‐tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden‐Echterdingen
5 Startup
Warning:
The PC should be switched off before disconnecting plugs in order to avoid damage to
electronic components! In order to avoid formation of condensation, the device should
only be switched on once it has acclimated to the room temperature. Pay attention to the
voltage permitted for the device.
You should allow five seconds to pass between switching the device off and switching it
back on.
Note:
The screen of a data cable must always be connected with the connector housing (EMC).
Under the embedded operating system, interfaces must explicitly be enabled and
required drivers must be installed in order to be able to use them.

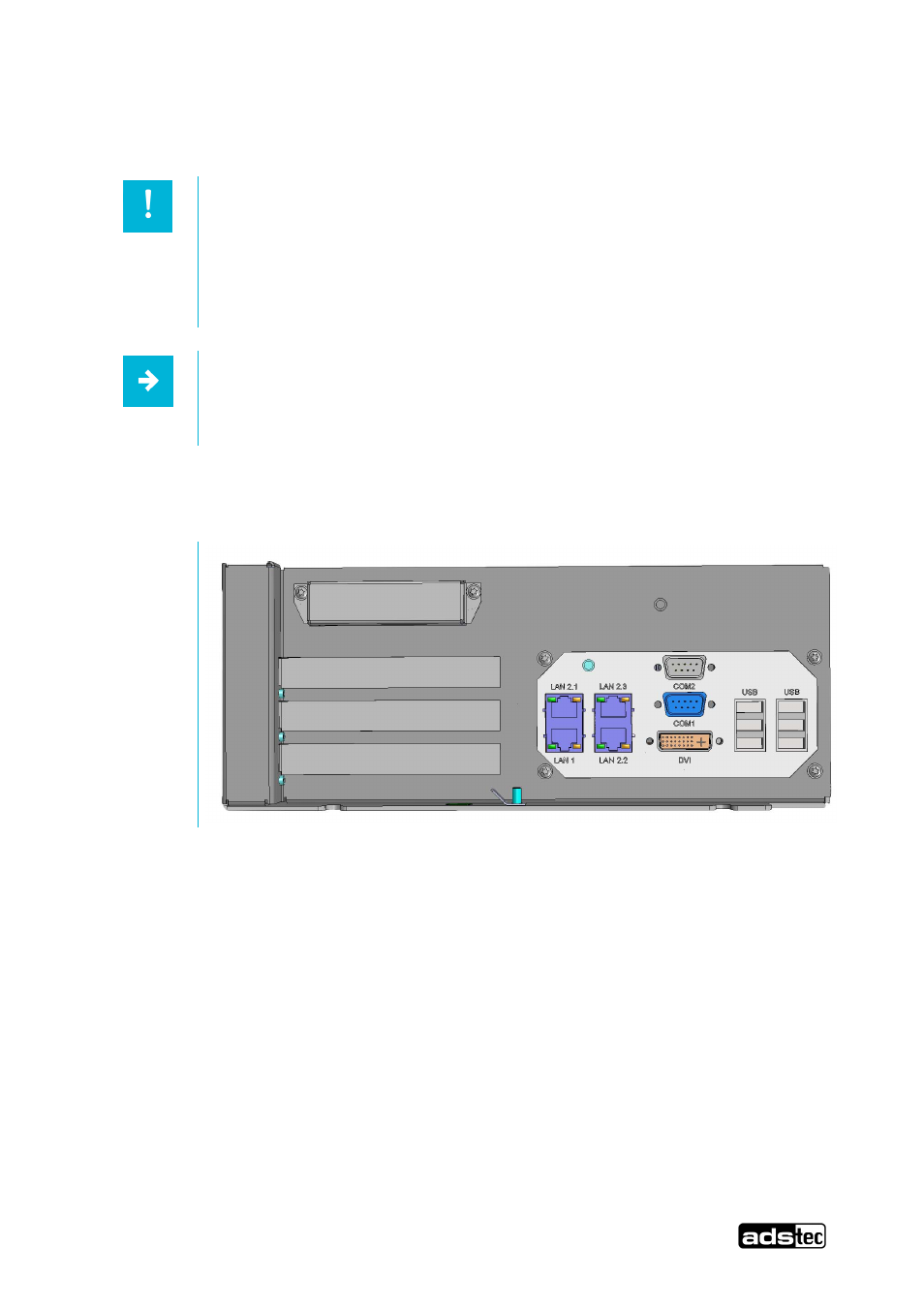

5.1 Available Interfaces
Abb. 3:
Pos: 18 /Datentechnik/Inbetriebnahme/Reihenfolge der Inbetriebnahme/Reihenfolge der Inbetriebnahme für VMT 60xx-Serie @ 1\mod_1222073159179_6.doc @ 4100 @
5.2 Cable installation
The device interfaces and power supply plug are found on the side of the casing. The free slots and the drives are
found in the same place..
5.3 Startup procedure
• Connect device with suitable power source.
•Connect the cable for serial / parallel data transfer and fasten the plugs to the sockets.
•Connect all further required cables and secure against slippage.
