Debris Loader Owner’s Manual
7
ASSEMBLY
MODEL DL12670
Connect the hose to the hose support. To do so, place an
end link from each chain through the hooks provided in
the hose support weldment as shown in Figure 3.
2.3 ATTACH THE VACUUM HOSE

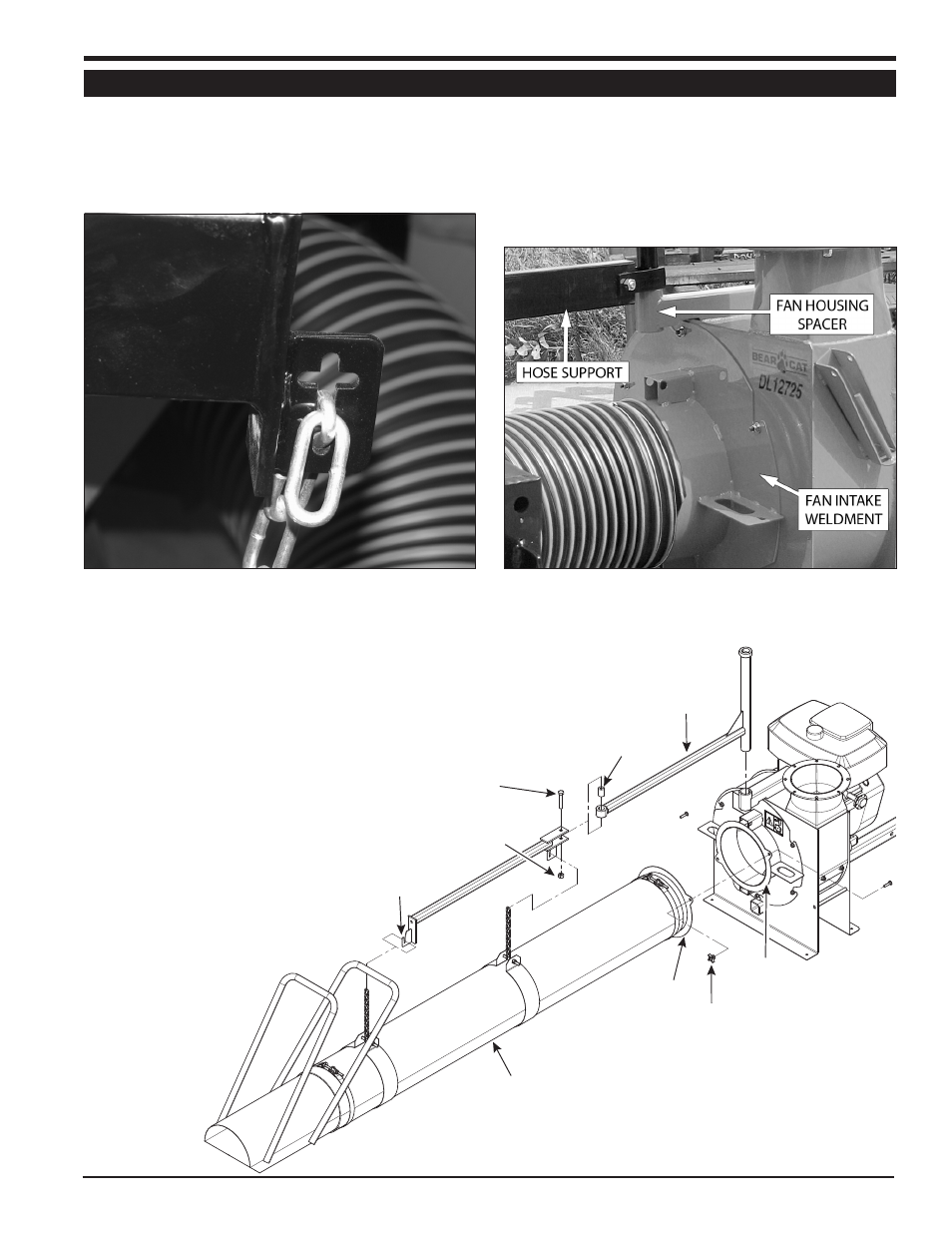

Figure 3, Attaching hose to hose support
Figure 4, Hose attachment, DL12725
1/2” X 2-3/4”
BOLT
SPACER
1/2” NUT
HOSE INLET
ADAPTER
FAN INTAKE
WELDMENT
KNOB
HOSE
SUPPORT
HOSE
HOSE
SUPPORT
HOOKS
MODEL DL12725
1. Use the hose clamp to fasten the hose on the fan intake
weldment (Figure 4).
2. Connect the hose wraps to the hose support. To do so,
place a chain link from each chain wrap in the hose
support hooks.
Figure 5, Hose support assembly
MODELS DL10570 AND DL8390
1. Fasten the hose inlet adapter to
the fan intake weldment with the
two provided knobs.
2. Assemble the two hose supports
using the 1/2" x 2-3/4" bolt, spacer
and 1/2" nut provided in the owner's
kit.
3. Insert the hose support into the fan
housing spacer.
4. Connect the hose to the hose
support by hooking the chain links
into the hose support hooks.
