Instruction Sheet

3

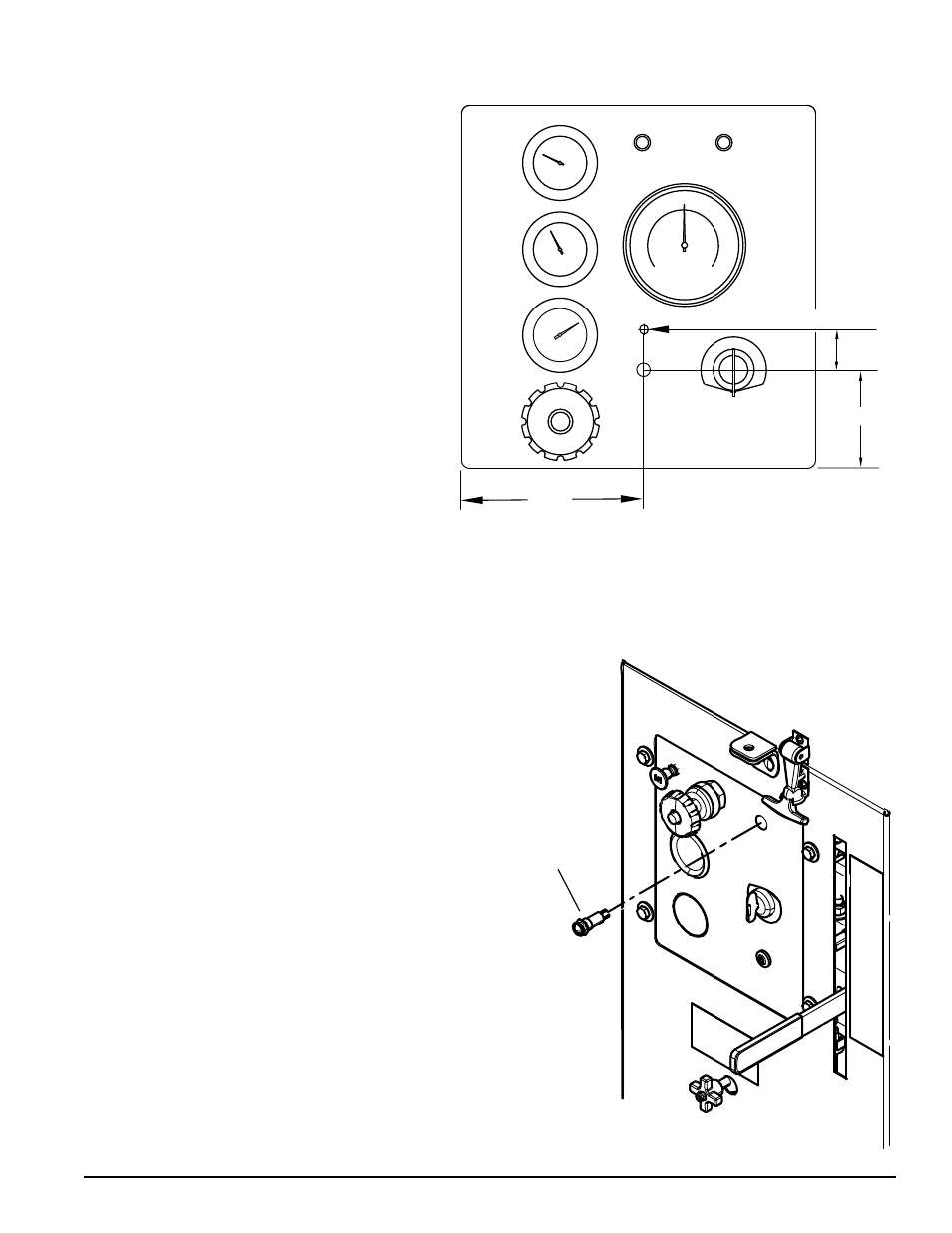

5.2 - DRILL LOCATION FOR DIESEL ENGINE MODELS

5.54"

3.00"

1.625

DRILL HOLE 9/16” IN DIAMETER

Follow the measurements to drill a hole for the

LED. Drill the hole 1.625" above the Reset button

as shown.

LED

6. INSERT ThE TRI-COLOR LED

Install the tri-colored LED by unscrewing the LED hex

nut, pushing the LED into the control panel from the

front, and securing it with the hex nut from the back.
