Instruction Sheet

8

PROGRAMMING CABLE, 36503-00

Triangular programming wire will be tucked in along the control-

ler in the box.

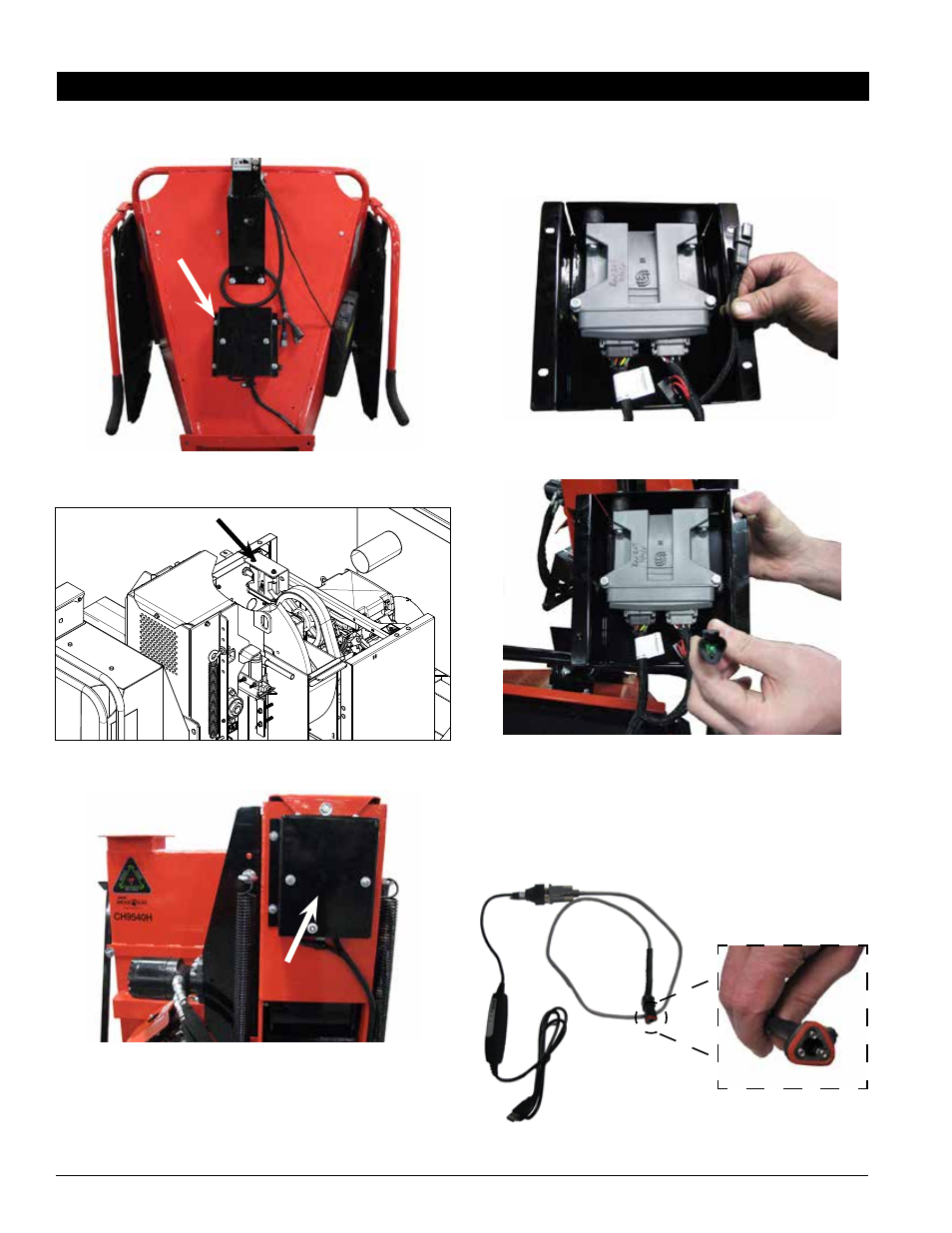

1. Locate the Plus One Controller on your machine.

Controller location on 6" models with VIN

5VJAA00148W001215 and above.

Controller location on CH9540H, CHF9540H, CH8670H,

CH8993H, CH8720iH, CH922DH & CH911DH models.

Controller location on 6" models with VIN

5VJAA00178W001144 and below.

2. Remove the cover to the controller box and locate the

programming wire. It has a triangular shaped connector

and should be tucked in along side the controller.

3. Locate the programming cable (36503-00) supplied in

the service tool kit and connect the triangular shaped

plug to the programming wired located in the controller

box.

4. Plug the other end of the programming cable into a

USB port on the computer being used.

2. SECTION 2: CONNECT TO CONTROLLER
