Instruction Sheet
16
CLICK ONE- (ON LEFT SIDE
NAVIGATION BAR)

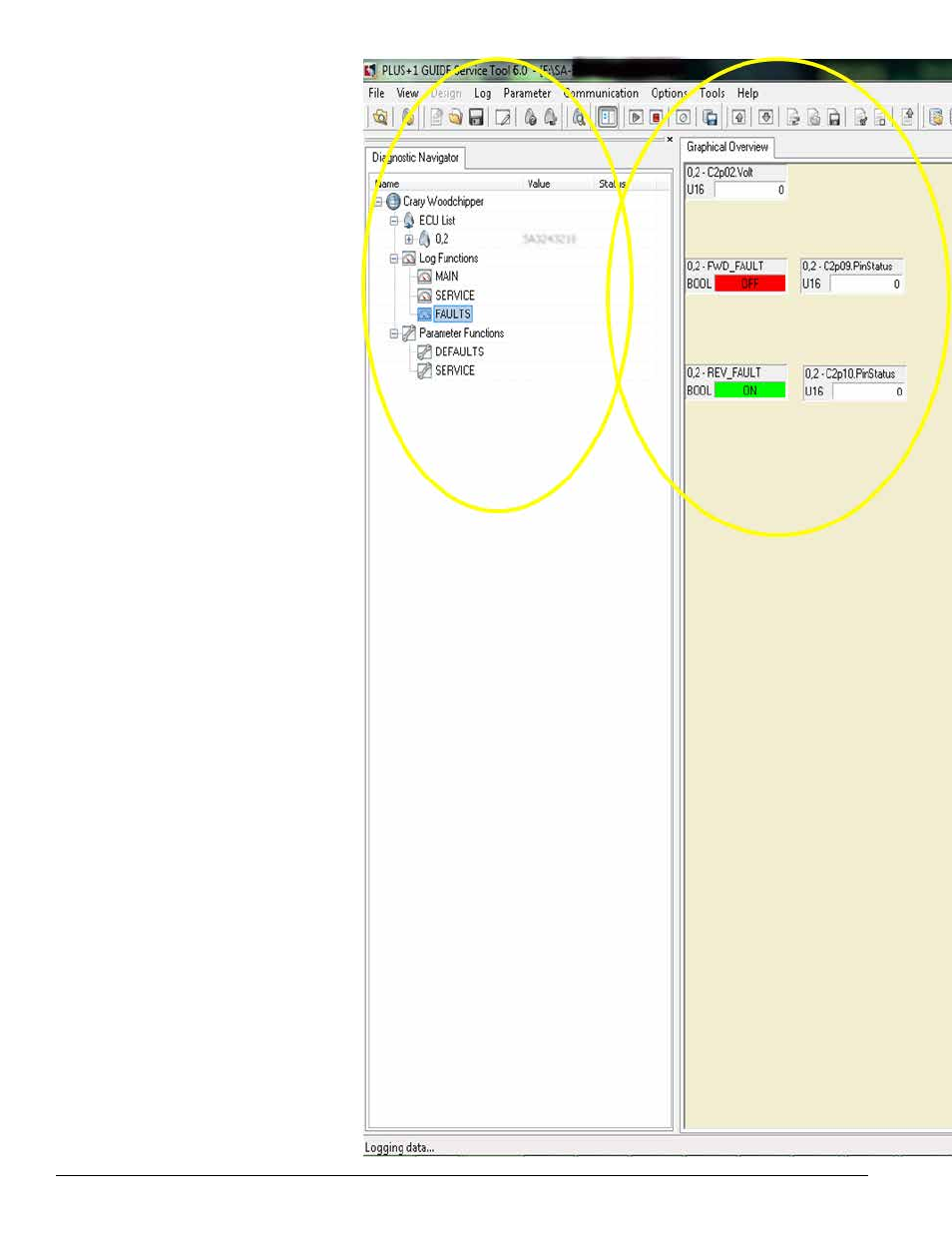

We have now moved to the
FAULTS tab on the left.
The box labeled FWD_FAULT is
when the controller has detected
a problem with the forward coil or
the wiring up to this coil.
The box labeled
REV_FAULT is
when the controller has detected
a problem with the reverse coil or
the wiring up to this coil.
The other three grey boxes are
used by the manufacturer of the
controller.
CLICK ONE
CLICK TWO
