Page 10

PTO CHIPPERS
6
Section

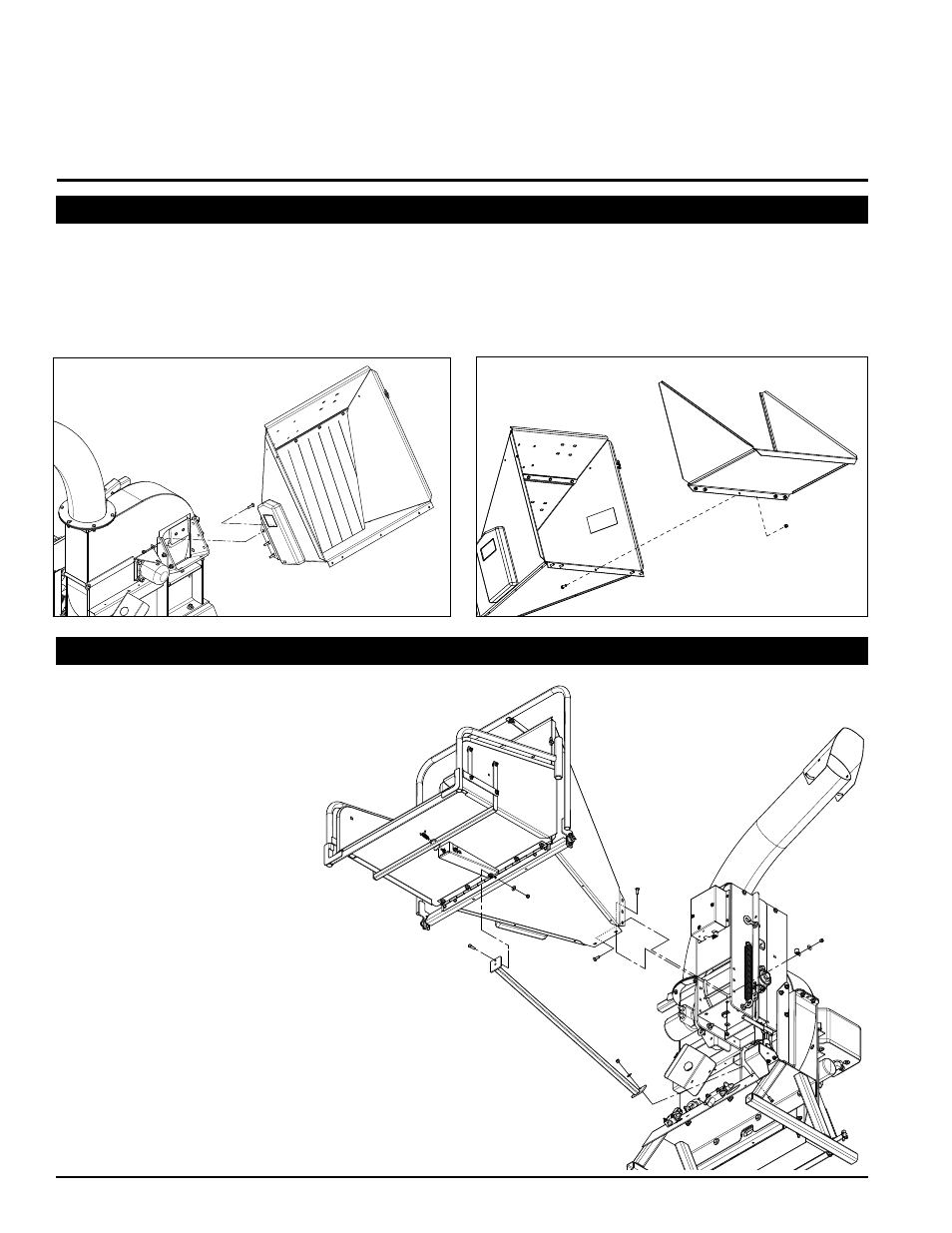

2.1 aTTaCH CHuTE - GRavITY FEEd modELS
aSSEmbLY
Remove chipper from shipping crate. Place unit on a level surface before assembling. See the Torque chart in
1.
Section 7 for the recommended torque for tightening bolts and screws.
Mount the chipper chute to the frame mounting bracket using eight (8) 3/8" x 1-1/2" bolts and locknuts. use three
2.
bolts on each side and two on the bottom.
For models with extension trays: Attach the extension tray to the chute with five (5) 3/8" x 1" bolts and nuts.
3.
2
2.2 aTTaCH CHuTE - HYdRauLIC FEEd modELS WITH SaFETY baR
Remove chipper from shipping
1.
crate. Place unit on a level
surface before assembling.
See the Torque chart in
Section 7 for the recommended
torque for tightening bolts and
screws.
Attach the chute support to the
2.
front side of the chipper base
with one (1) 3/8" x 1" hex bolt,
washer and nut.
Attach the chipper chute to the
3.
feed roller with eight (8) 3/8" x
1-1/2" carriage bolts, washers,
and nuts. Thread the bolts from
inside the chute.
Attach the chute support to the chute through the
4.
middle hole on the extension tray hinge using
existing hardware.
connect the three wires coming from the feed chute
5.
to the connectors that are located underneath the
feed roller, matching ziptie colors.
Plug the safety bar wire harness into the matching
6.
color plugs on the chipper frame.
