SECTION 2 - PROCEDURES
2-46 – JLG Lift – 3120864
1. Bolt
2. Bolt
3. Lockwasher
4. Cover
5. Pipe Plug
6. Pipe Plug
7. Cover Cap
8. O-ring
9. Disconnect Rod
10. O-ring
11. Disconnect Cap
12. Bolt
13. Ring Gear
14. O-ring
15. Thrustwasher
16. Thrust Bearing
17. Input Gear
18. Thrust Spacer
19. Retaining Ring
20. Input Shaft
21. Internal Gear
22. Carrier
23. Planet Shaft
24. Roll Pin
25. Retaining Ring
26. Spacer
27. Cluster Gear
28. Bearing Cup
29. Bearing Cone
30. Spindle
31. Seal
32. Bearing Cup
33. Bearing Cone
34. Bearing Shim
35. Retaining Ring
36. Hub
37. Pipe Plug
38. Magnetic Plug
39. Stud
40. Keeper Ring
41. Retaining Ring
42. Washer
43. Spring
44. Not Used
45. Input Coupling

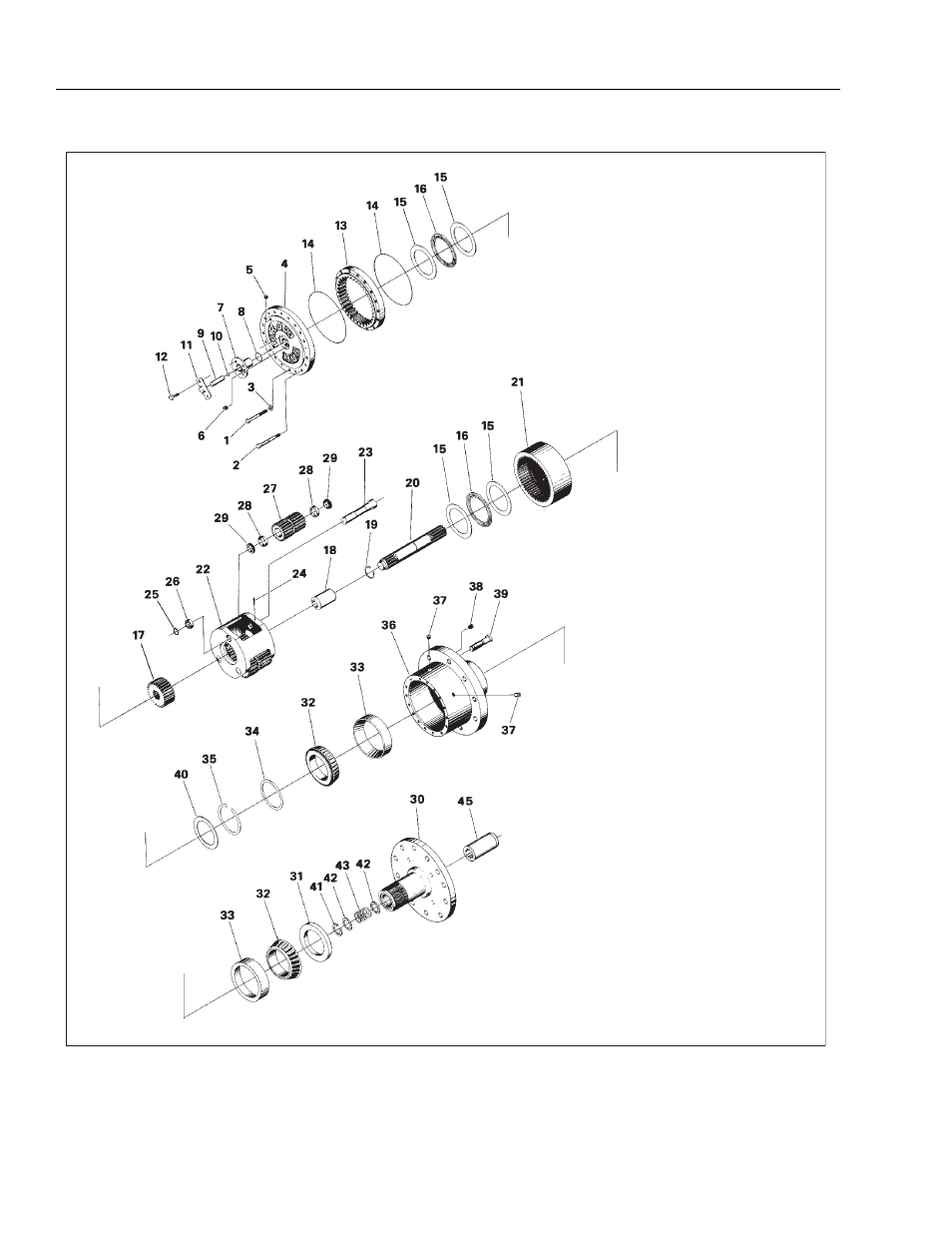

Figure 2-19. Drive Torque Hub
