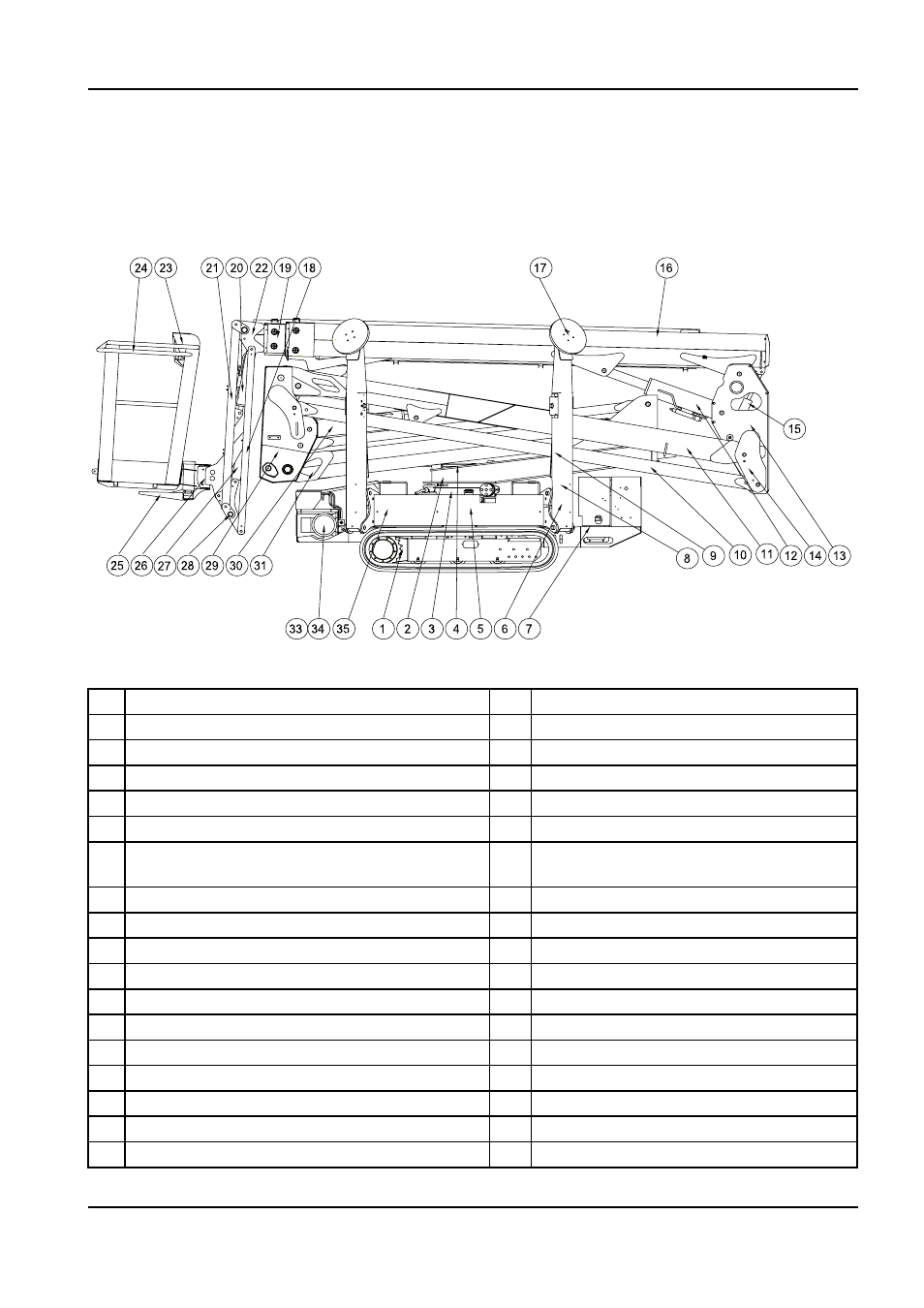

2.1.5 TERMINOLOGY
To make the contents of this manual easier to understand, the diagram provided below illu‑
strates the terms used to identify the parts of the platform.
LEGENDA
X20JPR0020413
BOOM LIFT MODELS X20JPLUS
JLG
17
1 Tracked undercarriage 19 First extension arm
2 Revolving turret 20 Jib cylinder
3 Turntable + rotation motor 21 Right and left Jib arm
4 Emergency controls 22 Second extension arm
5 Base+electrical component compartment+oil tank 23 Remote control
6 Double gear pump 24 Basket or cage
7
Petrol/diesel engine / Battery pack + inverter +
battery charger (
LITHIUM MOTOR )
25 Basket support
8 Stabiliser 26 Rotary actuator for basket rotation
9 Stabiliser cylinder 27 Basket levelling cylinder on the basket
10 Second arm tie rod 28 Jib transmission
11 Second arm 29 First-second arm transmission
12 Second-third arm cylinder 30 First-second arm cylinder
13 Second-third arm transmission 31 First arm
14 Second-third arm connecting rod 32
15 Basket levelling cylinder on the transmission 33 Electric motor
16 Third arm 34 Double gear pump
17 Stabiliser plate 35 Emergency hand pump
18 Jib tie rod
