ELECTRICAL
3121859 4017 10-29

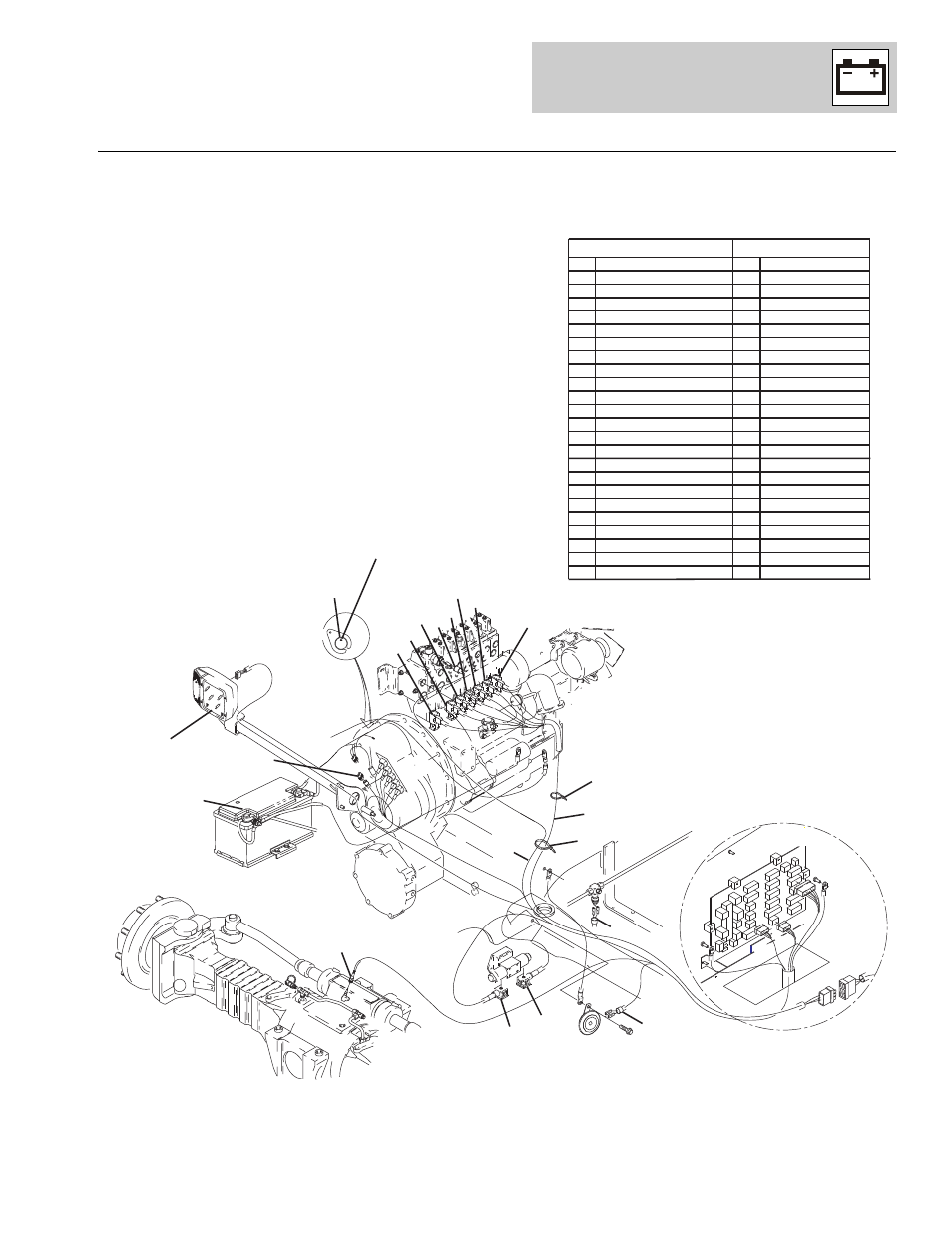

Figure 10-11 Electric System with Platform (Continued)
19
ENGLISH GERMAN
B08 ANGLE FRONT AXLE (INDUCTIVE) B08 Winkel Vorderachse
B12 TRANSMISSION SPEED B12 Getriebedrehza
G01 BATTERY G01 Batterie
E02 LOW BEAM LIGHT RIGHT E02 Abblendlicht
E04 DRIVING LIGHT RIGHT E04 Fernlicht
E08 PARKING LIGHT RIGHT E08 Standlicht
E10 INDICATOR FRONT RIGHT E10 Blinklicht vorne
E23 SIGNAL HORN E23 Hupe
S06 STOP LIGHT SWITCH S06 Bremslichtschalt
S36 HYDRAULIC PRESSURE S36 Hydraulikdru
X10 CABLE LIGHTING FRONT RIGHT X10 Kabel Beleuchtung vorne
X16 CONNECTOR STEERING X16 Stecker
X16.1 CONNECTOR HYDRAULIC BLOCK X16.1 Stecker
X22 MAGNETS TRANSMISSION X22 Magnete Getriebe
X28 CONNECTOR LIGHTING RIGHT X28 Stecker Fahrlicht
Y01 LIFTING Y01 Heben
Y02 TELESCOPE Y02 Teleskopieren
Y03 TILT Y03 Kippe
Y04 AUXILIARY HYDRAULIC Y04 Zusatzhydraul
Y05 LEVELING Y05 Niveauausgleic
Y06 STABILIZER RIGHT Y06 Pratze rechts
Y07 STABILIZER LEFT Y07 Pratze
Y10 CRAB STEER Y10 Lenkart
Y11 4 WHEEL STEER Y11 Lenkart
18
ARROW (TRIANGLE) MUST
POINT AT TOP
Y01
Y02
Y03
Y04
Y05
Y06
Y07 S36
E23
13
14
Y11
Y10
S06
X16
X22
X10
X16.1
ESX
B08
9
G01
B12
E02
E04
E08
E10
X28
11
27
PAP077
R
V
S
1
2
28
