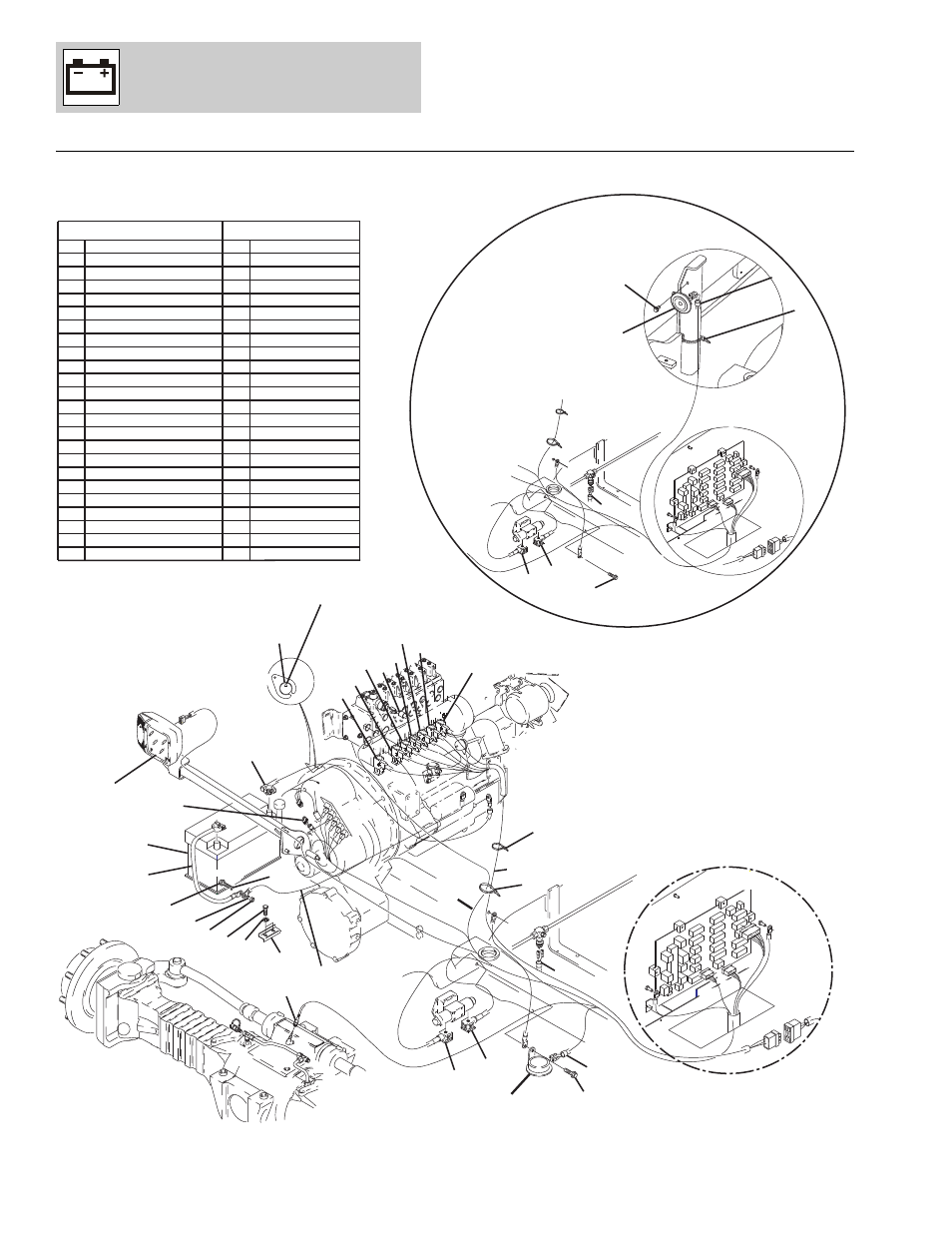

Figure 10-3 Electrical Installation, Gear & Valve
E23
X22
X10
11
19
POSITION OF HORN
S/N 1160001458 & AFTER
1
17
ESX
X16.1
Y10
Y11
S06
11
X16
ENGLISH
GERMAN
B08
ANGLE FRONT AXLE (INDUCTIVE)
B08
Winkel Vorderachse
B12
TRANSMISSION SPEED
B12
Getriebedrehza
G01
BATTERY
G01
Batterie
E02
LOW BEAM LIGHT RIGHT
E02
Abblendlicht
E04
DRIVING LIGHT RIGHT
E04
Fernlicht
E08
PARKING LIGHT RIGHT
E08
Standlicht
E10
INDICATOR FRONT RIGHT
E10
Blinklicht vorne
E23
SIGNAL HORN
E23
Hupe
S06
STOP LIGHT SWITCH
S06
Bremslichtschalt
S36
HYDRAULIC PRESSURE
S36
Hydraulikdru
X10
CABLE LIGHTING FRONT RIGHT
X10
Kabel Beleuchtung vorne
X16
CONNECTOR STEERING
X16
Stecker
X16.1 CONNECTOR HYDRAULIC BLOCK
X16.1 Stecker
X22
MAGNETS TRANSMISSION
X22
Magnete Getriebe
X28
CONNECTOR LIGHTING RIGHT
X28
Stecker Fahrlicht
Y01
LIFTING
Y01
Heben
Y02
TELESCOPE
Y02
Teleskopieren
Y03
TILT
Y03
Kippe
Y04
AUXILIARY HYDRAULIC
Y04
Zusatzhydraul
Y05
LEVELING
Y05
Niveauausgleic
Y06
STABILIZER RIGHT
Y06
Pratze rechts
Y07
STABILIZER LEFT
Y07
Pratze
Y10
CRAB STEER
Y10
Lenkart
Y11
4 WHEEL STEER
Y11
Lenkart
18
ARROW (TRIANGLE) MUST
POINT AT TOP
Y01
Y02
Y03
Y04
Y05
Y06
Y07
S36
E23
16
17
11
1
Y11
Y10
S06
X16
X22
X10
X16.1
ESX
B08
12
6
7
9
14
15
15
13
4
5
G01
B12
E02
E04
E08
E10
X28
3
18
2
R
V
S
1
2
20
PAP075
