SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3121230 – JLG Lift – 3-43
Removing a Rug using Rug Carrier Accessory
Arms
This section describes the use of the Rug Carrier accessory in
removing a rug from a horizontal pivoting arm display rack.
1. Select the intended location in the display for removal of the
rug. Open the display rack to provide adequate space for
the MSP lift and rug.
2. With the Rug Carrier Accessory arms stowed, drive the MSP
into position prior to loading the rug.
3. Swing and lock the Rug Carrier Accessory arms into the
carry position.
4. Elevate the platform a few feet. Start to roll the rug onto the
Rug Carrier Accessory arms.
5. Be certain the rug is centered over its length on the Rug Car-
rier Accessory.
6. While elevating to the required height for removing the rug
from the display arm, continue to roll the rug until it is com-
pletely rolled up on the carrier arms.
7. Properly remove the rug from the display arm. Never climb
onto the platform rails for any reason.
8. After adequately removing the rug from the display arm,
lower the platform.

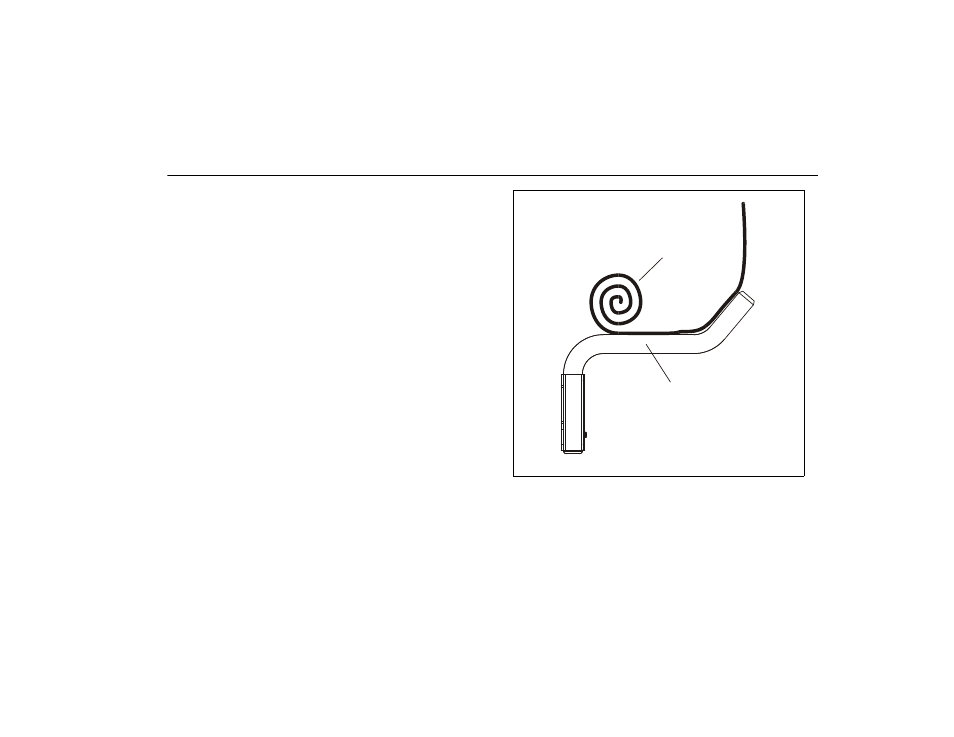

Removing Rug From Display Arm.
1. Roll Rug onto Rug Carrier while Elevating Platform
2. Rug Carrier in Carry Position
1
2
