SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3121230 – JLG Lift – 3-13
4 3
Tilt Condition
(Platform Elevated)
DRIVE and Lift UP Disabled Lower the Platform and Drive off
the Tilt Condition
6 8
Drive Motor Brush Wear Warn-
ing ( 25 hrs. of DRIVE operation
remaining to a 10 sec. shut
down mode) Drive Motor Brushes Require
Service Replacement -
(See Section 5.5 on page 5-20
for further Instructions)
13 6
Traction Module
Over Temperature
(DRIVE Disabled) Allow Drive System Traction
Module to Cool Before
Operating
17 7
Ground Control Module
Over Temperature
(Machine Stopped) Allow Ground Control
Module to Cool Before
Operating
32 7
Pump Motor Over Current
(LIFT UP Disabled) Platform Load Over Capacity
33 2
Both PHP Bars UP
DRIVE and Lift UP Disabled Check for Object Blocking Both
the Left and Right PHP Bars

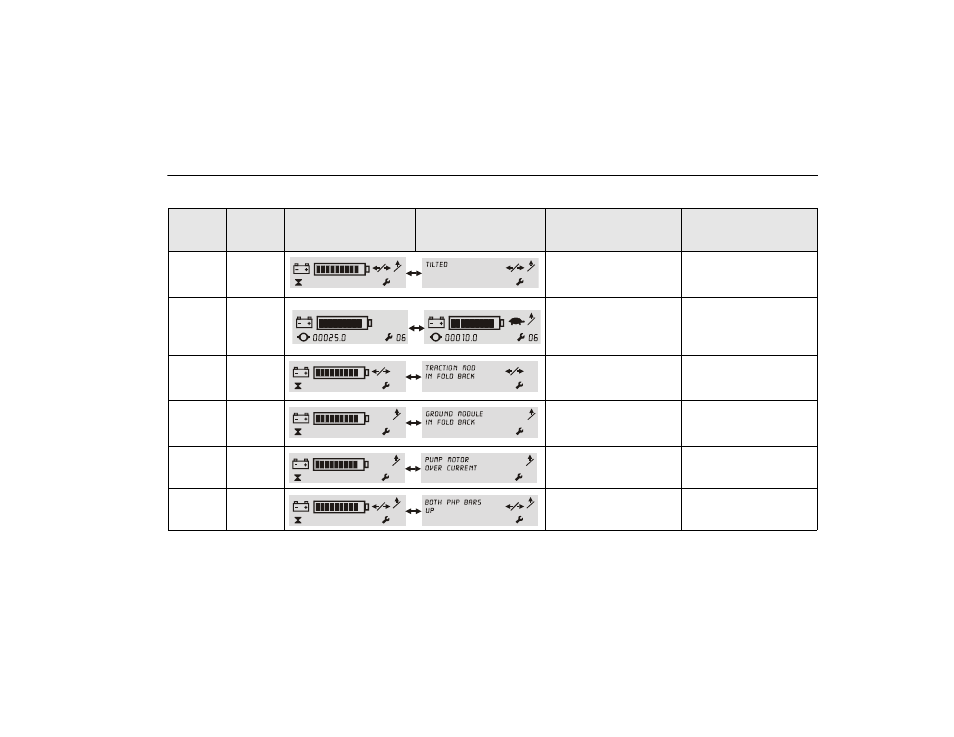

Table 3-2. LCD Display - Operation Fault Conditions (Continued)
FAULT
CODE
PLATFORM
LEDS
FLASHING
LCD SYMBOL SCREEN LCD TEXT SCREEN
FAULT DESCRIPTION/
MACHINE CONDITION
LOOK FOR THIS
04 04 00000.0
13 13 00000.0
17 17 00000.0
32 32 00000.0
33 33 00000.0
