SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3-8 – JLG Lift – 3121230
Ground Control Module
1. Machine Status LCD Display
2. Main Power Selector Switch
3. Emergency Stop
4. Brake Release
5. Platform Up
6. Platform Down
Battery Charging Station
7. Battery Charging Status Indicators
8. Charger A/C Input Receptacle
Hydraulic System
9. Hydraulic Oil Reservoir
10. Manual Descent Control Valve
NOTE: The Ground Control Station Module is fully pro-
grammable. For operator level programmability
see Section 5.4, GROUND CONTROL STATION -
PROGRAMMING.
NOTE: If equipped with optional Programmable Security
Lock (PSL) see Section 3.12 on page 3-36 for
additional machine power-up instructions.

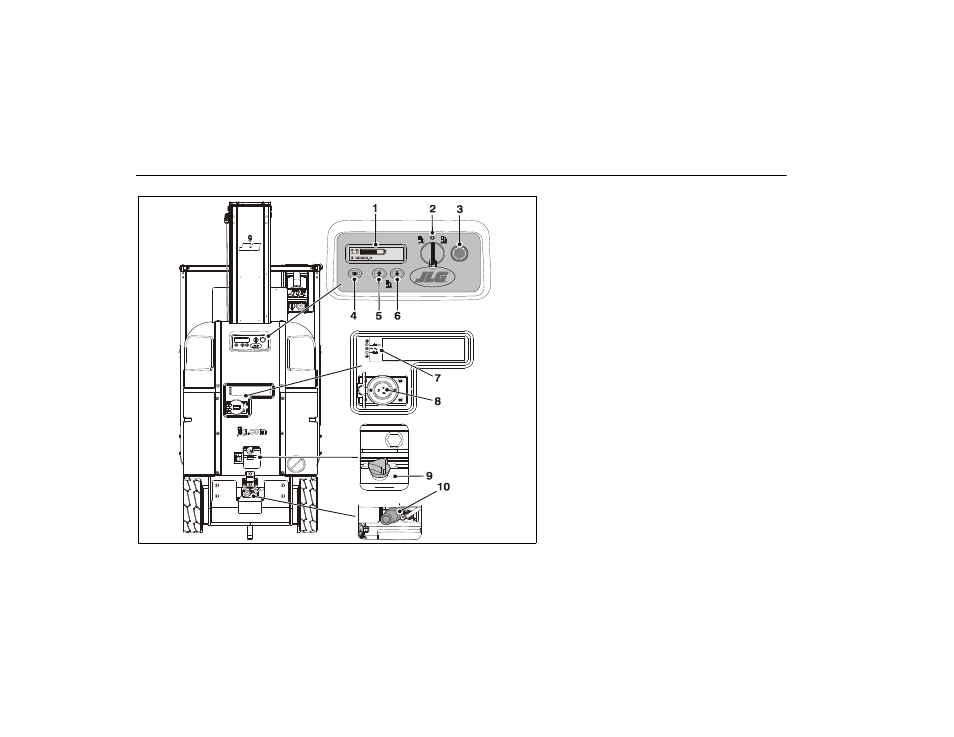

Figure 3-1. Ground Control Station. (Machine Rear View)
