JLG 15/20MSP Operator Manual - Manual (Page 38)

SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3-12 – JLG Lift – 3121230

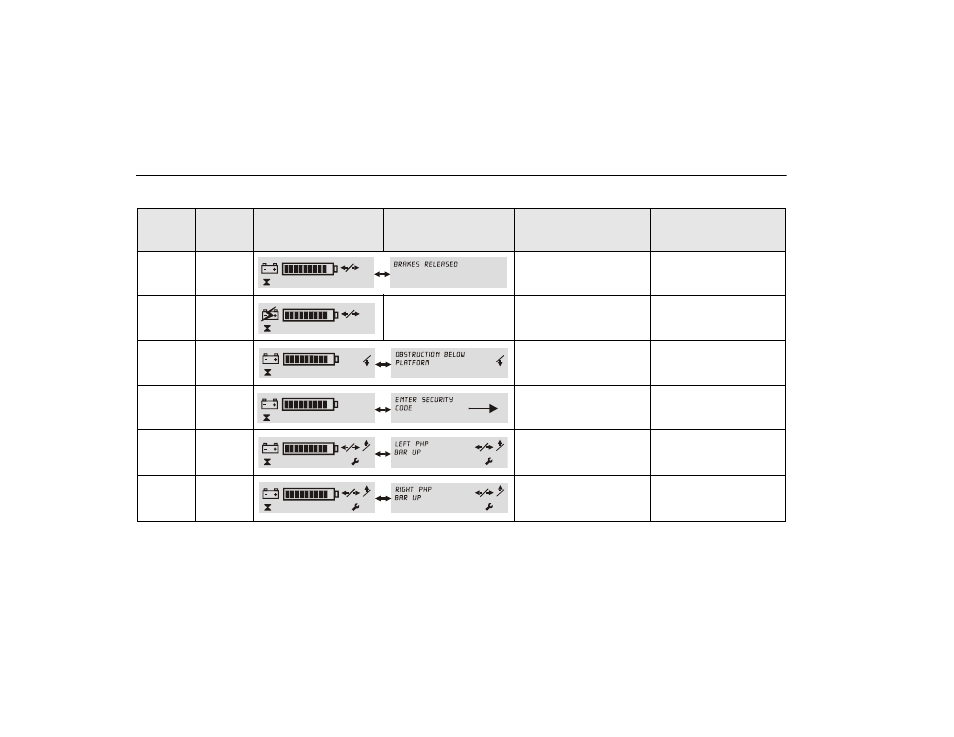

Table 3-2. LCD Display - Operation Fault Conditions
FAULT
CODE
PLATFORM
LEDS
FLASHING
LCD SYMBOL SCREEN LCD TEXT SCREEN
FAULT DESCRIPTION/
MACHINE CONDITION
LOOK FOR THIS
— —
Brakes Released
(DRIVE Disabled) To Engage Brakes - Press Brake
Release Button on Ground Con-
trol Station
— — NONE
Charger AC Plugged In
DRIVE Disabled Unplug Charger AC Power Cord
— —
Obstruction Sensor System
(Platform Elevated)
LIFT DOWN Disabled Obstruction Under Platform or
Sensor Defective
— —
Programmable Security
Lock Password Enter Code on PSL Keypad to
Power-Up Machine
2 2
Left PHP Bar UP
(Platform Elevated)
DRIVE and Lift UP Disabled Lower Platform and Check the
Left Pot Hole Protection Bar
3 2
Right PHP Bar UP
(Platform Elevated)
DRIVE and Lift UP Disabled Lower the Platform and Check
the Right Pot Hole Protection Bar
00000.0
00000.0
00000.0
00000.0
02 02 00000.0
03 03 00000.0
