SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION

3-14

– JLG Lift –

3121230

—

Aux. #1 - Platform Gate Open or
No Pressure on the Platform
Enable switch.

Close Platform Gate or Depress
Platform Enable switch during
machine operation.

—

Aux. #1 - Platform Enable
switch depressed during
Machine Power-up.

Do Not Press on Platform Enable
switch during Machine Power-
Up.

NOTE: The fault conditions shown above are fault conditions which the Operator may be able to resolve. Should a fault occur and be displayed on the LCD

screen which cannot be corrected at the Operator’s level, the problem must be referred to a qualified JLG mechanic. A complete table of Fault

Codes is listed in the TroubleShooting Section of the Service and Maintenance Manual.

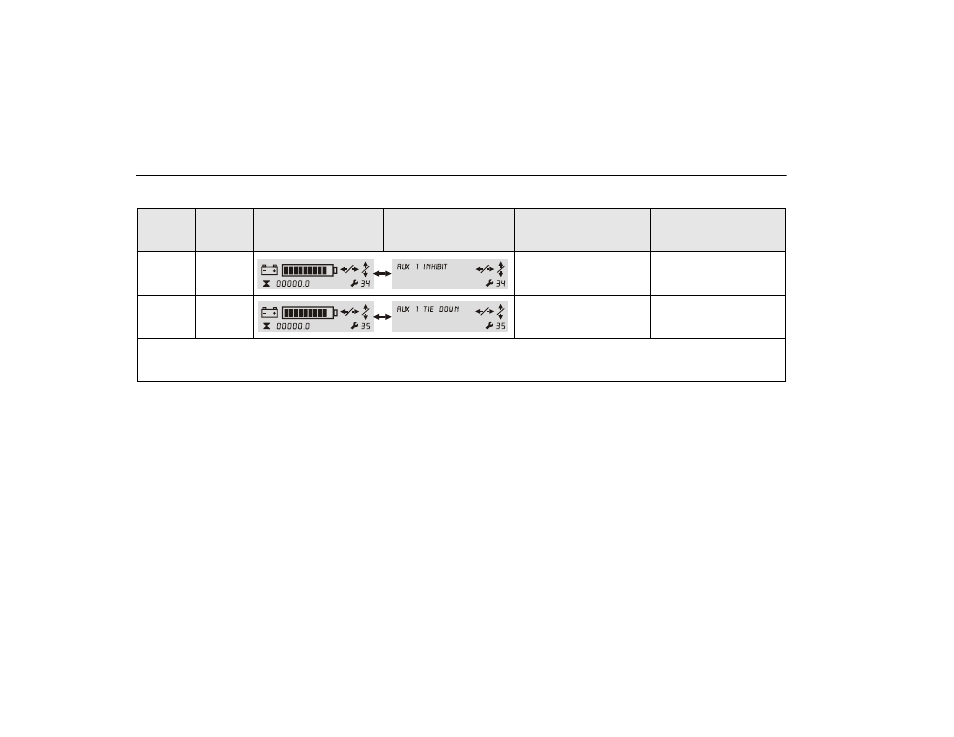

Table 3-2. LCD Display - Operation Fault Conditions (Continued)

FAULT

CODE

PLATFORM

LEDS

FLASHING

LCD SYMBOL SCREEN

LCD TEXT SCREEN

FAULT DESCRIPTION/
MACHINE CONDITION

LOOK FOR THIS
