SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3-28 – JLG Lift – 3121230
StockPicking Platform Operation
The stockpicking platform is available in two (2) versions.
• Fixed side-rail version
• Folding side-rail version
THE STOCKPICKER PLATFORM ALLOWS THE MACHINE TO BE OPERATED
IN AN OPEN RAIL CONFIGURATION (SEE ILLUSTRATION).
CE SPECIFICATION MACHINES:
THE OPERATOR MUST WEAR A FULL BODY HARNESS EQUIPPED WITH A
LANYARD SHORT ENOUGH TO PREVENT A FALL FROM THE PLATFORM.
THE LANYARD MUST BE ATTACHED TO THE AUTHORIZED LANYARD POINT.
ALSO, JLG RECOMMENDS THAT CE SPECIFICATION MACHINES EQUIPPED
WITH THE STOCKPICKER PLATFORM ARE ONLY TO BE USED FOR STOCK-
PICKING APPLICATIONS.
NON-CE UNITS:
THE OPERATOR MUST WEAR A FULL BODY HARNESS WITH A LANYARD
(MAX. 6 FT. (1.82M) ATTACHED TO THE AUTHORIZED LANYARD POINT OR
A BODY BELT EQUIPPED WITH A LANYARD SHORT ENOUGH TO PREVENT
A FALL FROM THE PLATFORM.
WHILE OPERATING THE MACHINE IN THE OPEN RAIL CONFIGURATION,
ALWAYS OPERATE THE MACHINE FROM THE REAR OF THE PLATFORM
WITH THE MID-GATE CLOSED AND THE PLATFORM CONTROL CONSOLE
ATTACHED TO THE FIXED PORTION OF THE GUARDRAIL.

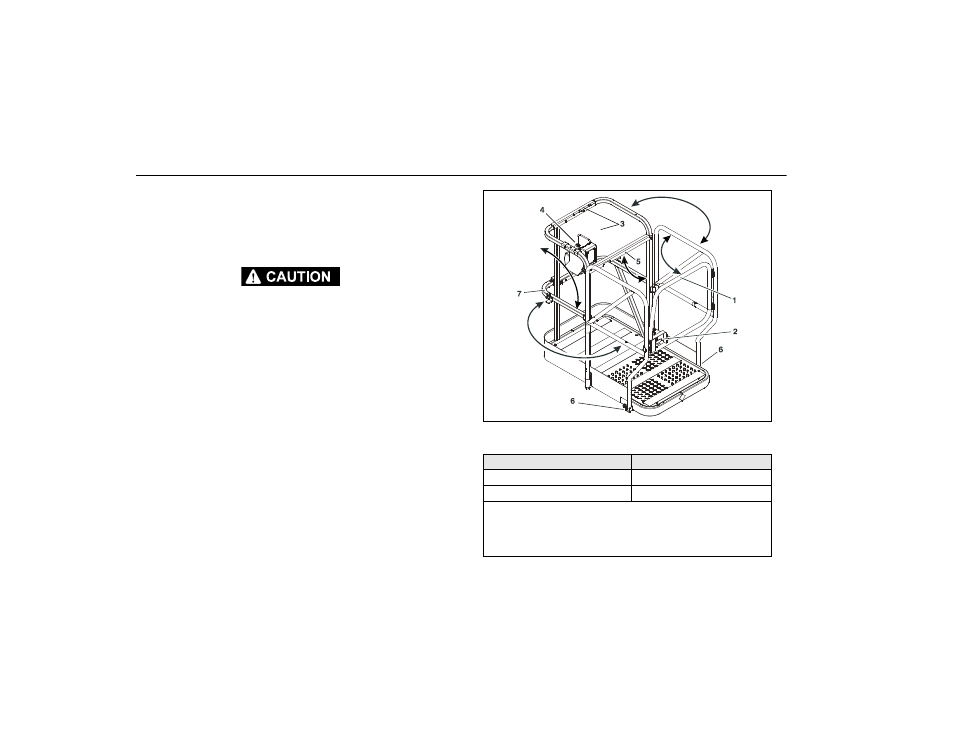

STOCKPICKER PLATFORM
(WITH FOLDING SIDE-RAILS) (MSP)
Model Max. Capacity
15MSP 500 lb. (230 kg)
20MSP 400 lb. (180 kg)
1. Primary Entrance/Exit Gate 4. Platform Control Console
2. Primary Entrance Latch 5. Mid-Gate
3. Lanyard Attach Point - 6. Gate Release/Lock Pins
(on mast and platform rail) 7. Secondary Exit Gate
