SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3121230
– JLG Lift –
3-23
Drive Speed Setting Controls
NOTE: When the platform is elevated the maximum drive speed
is automatically cut-back to 1/4th the speed when the
platform is fully lowered. The Ground Control Module-
LCD screen will display a turtle when in this mode, See
page 3-11 - Ground Control - LCD Status Display in this
section of the manual.
Drive Speed Setting
Selector Switch

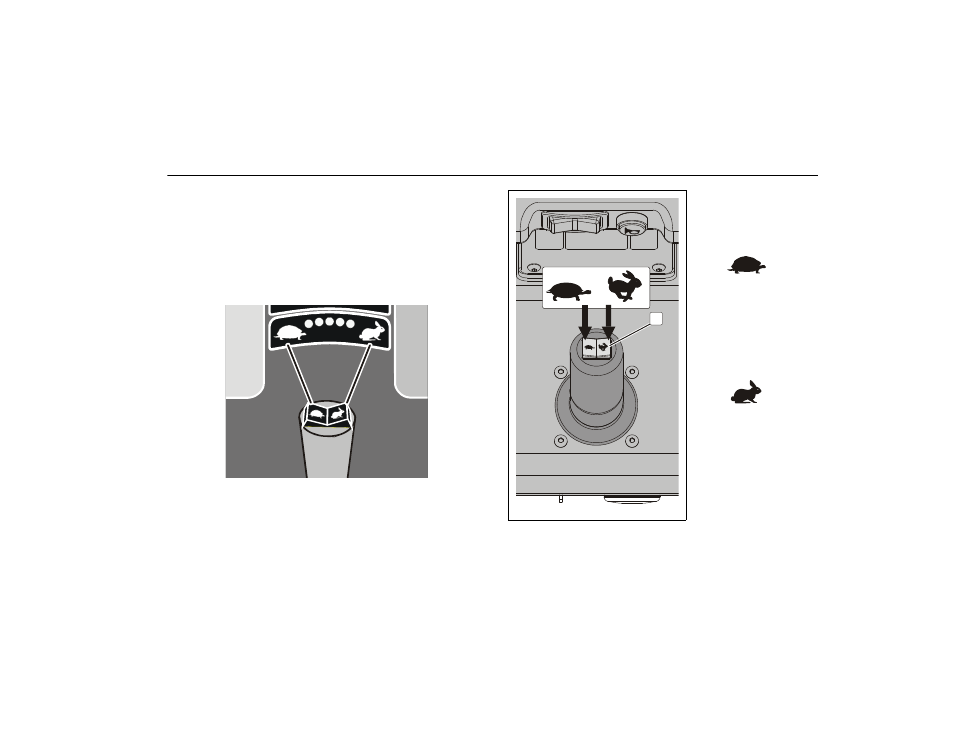

1. Selector Switch -
(on top of joystick)
Each PRESS on this
side of the switch will
DECREASE maximum
drive speed.
(FEWER LEDs Lit up on
the Drive Speed Indica-
tor.)
Each PRESS on this
side of the switch will
INCREASE maximum
drive speed.
(MORE LEDs Lit up on
the Drive Speed Indica-
tor.)
