SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3-20 – JLG Lift – 3121230
Multifunction Joystick Control
The joystick will operate the following machine functions:
• Drive/Steer
• Platform Lift Up and Down
NOTE: Use the Drive/Lift Mode Selector Switch to select which
function the joystick will operate.
The selected operating mode will only remain active for 5
seconds if the function is not operated.
Remember to press and hold the joystick function enable
lever to operate any joystick functions.
SEE FIGURE 3-4. ON PAGE 3-21 FOR GRADE AND SIDESLOPE DRIVING
DESCRIPTION WHEN DRIVING WITH THE PLATFORM LOWERED
(STOWED).
WHEN THE PLATFORM IS ELEVATED DRIVE ONLY ON A SMOOTH,
FIRM, AND LEVEL SURFACE.

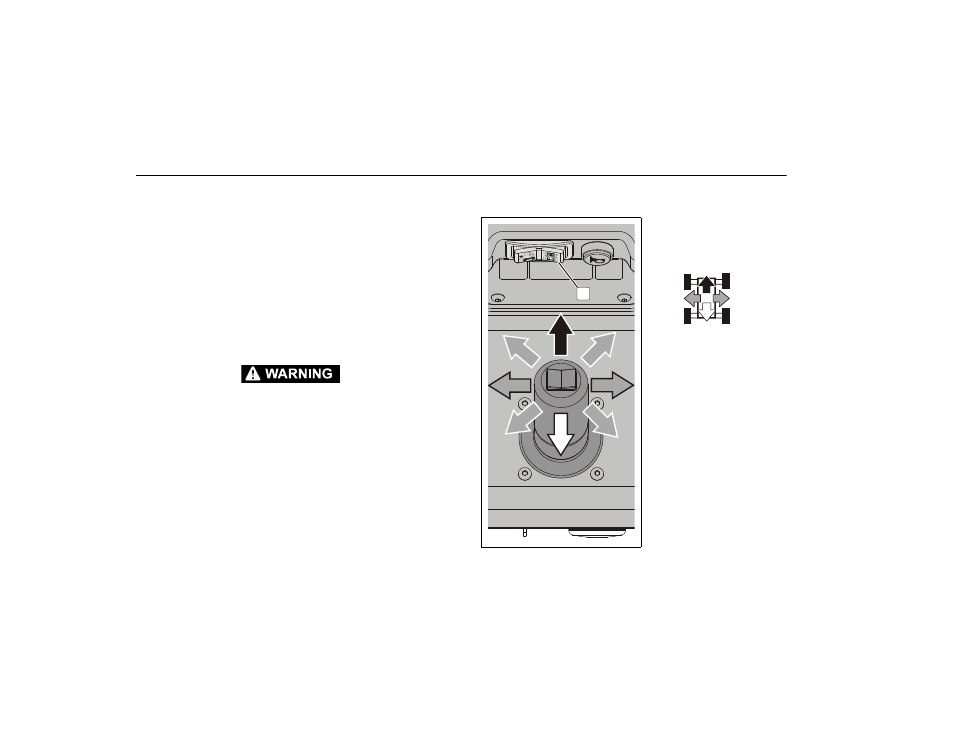

Drive Mode
1. Activate the Drive Mode
using the Drive/Lift Mode
Selector switch.
Within 5 seconds of acti-
vation - ENGAGE and
HOLD the JOYSTICK
ENABLE LEVER then
move the joystick in the
desired direction of travel.
Drive power is applied
proportionally the further
the joystick is moved off
center.
1
