Page 96

Section 5 - Attachments and Hitches
5-20
31200743

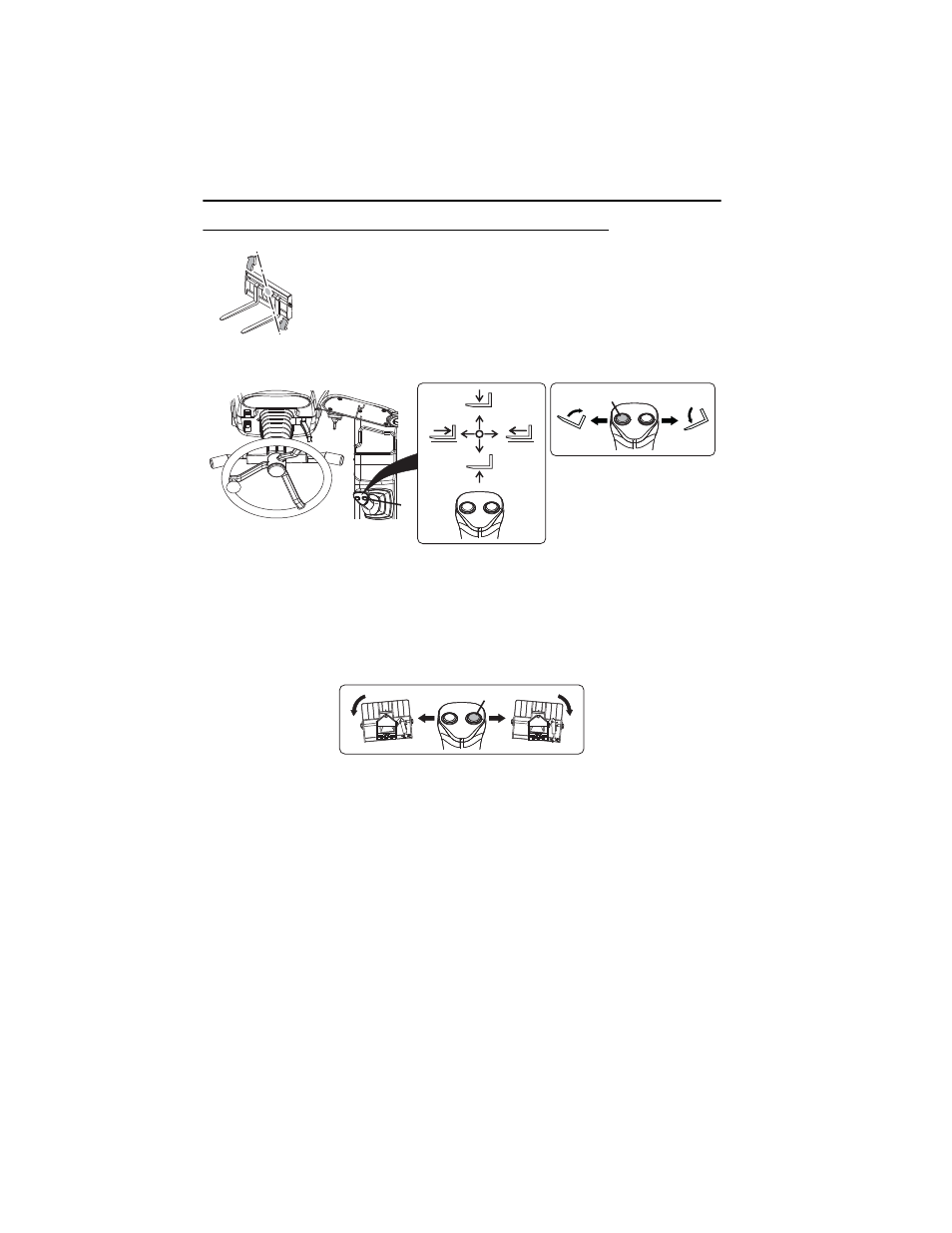

Side Tilt Carriage
Use Side Tilt Carriage Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-4.
The joystick (1) controls lift/lower and the extend/retract movement of the boom.
The tilt button (2) enables fork tilt.
• While pressing and holding button move joystick left to tilt up.
• While pressing and holding button move joystick right to tilt down.
To Side Tilt:
The auxiliary hydraulic button (3) enables carriage side tilt.
• While depressing button move joystick right to side tilt right.
• While depressing button move joystick left to side tilt left.
Installation Procedure:
• Refer to “Attachment Installation” on page 5-9.
OAL1550
OAL1601
1
2
OAL1950
3
