Section 5 - Attachments and Hitches
5-15 31200205

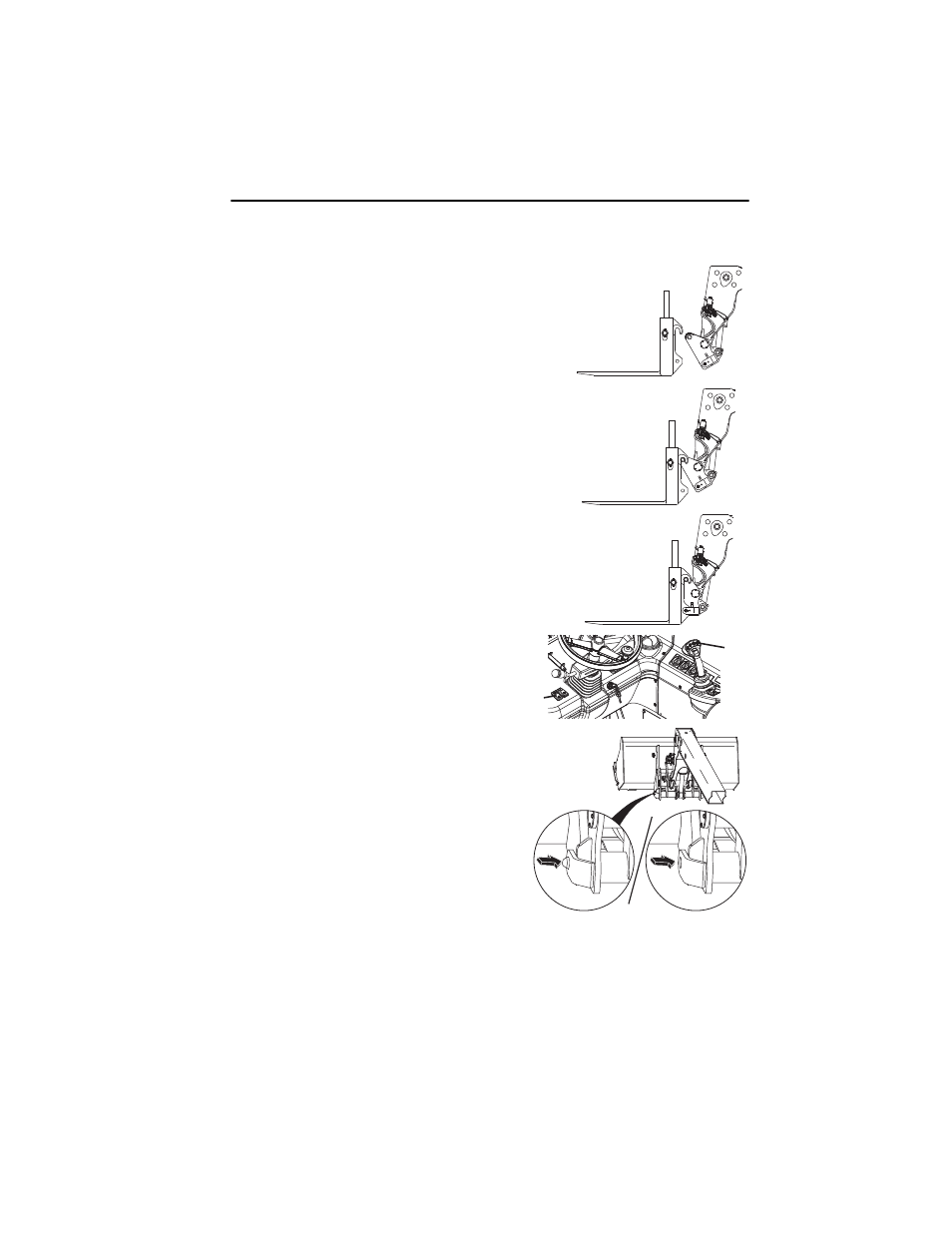

Hydraulic Quick Attach
This installation procedure is designed for one-person operation.
1. Tilt quick attach forward to provide clearance.
Check to be sure lock pin is disengaged.
2. Align attachment pin with recess in attachment.
Raise boom slightly to engage attachment pin in
recess.
3. Tilt quick attach back to engage attachment.
4. Press and hold switch (2) and button
(3), at the same time move joystick
forward to engage lock pin or move
joystick back to disengage lock pin.
5. Raise boom to eye level and visually check
that the lock pin protrudes through the
hole. If the pin does not protrude through
the hole, place the attachment on the
ground and return to step 2.
6. If attachment is equipped, connect auxiliary hydraulic hoses. See “Hydraulic
Operated Attachment” on page 5-18.
OZ3580
OZ3590
OZ3600
OZ3570
3
2
OAL1930
DISENGAGED ENGAGED
