Section 3 - Controls and Indicators
3-6
31200205

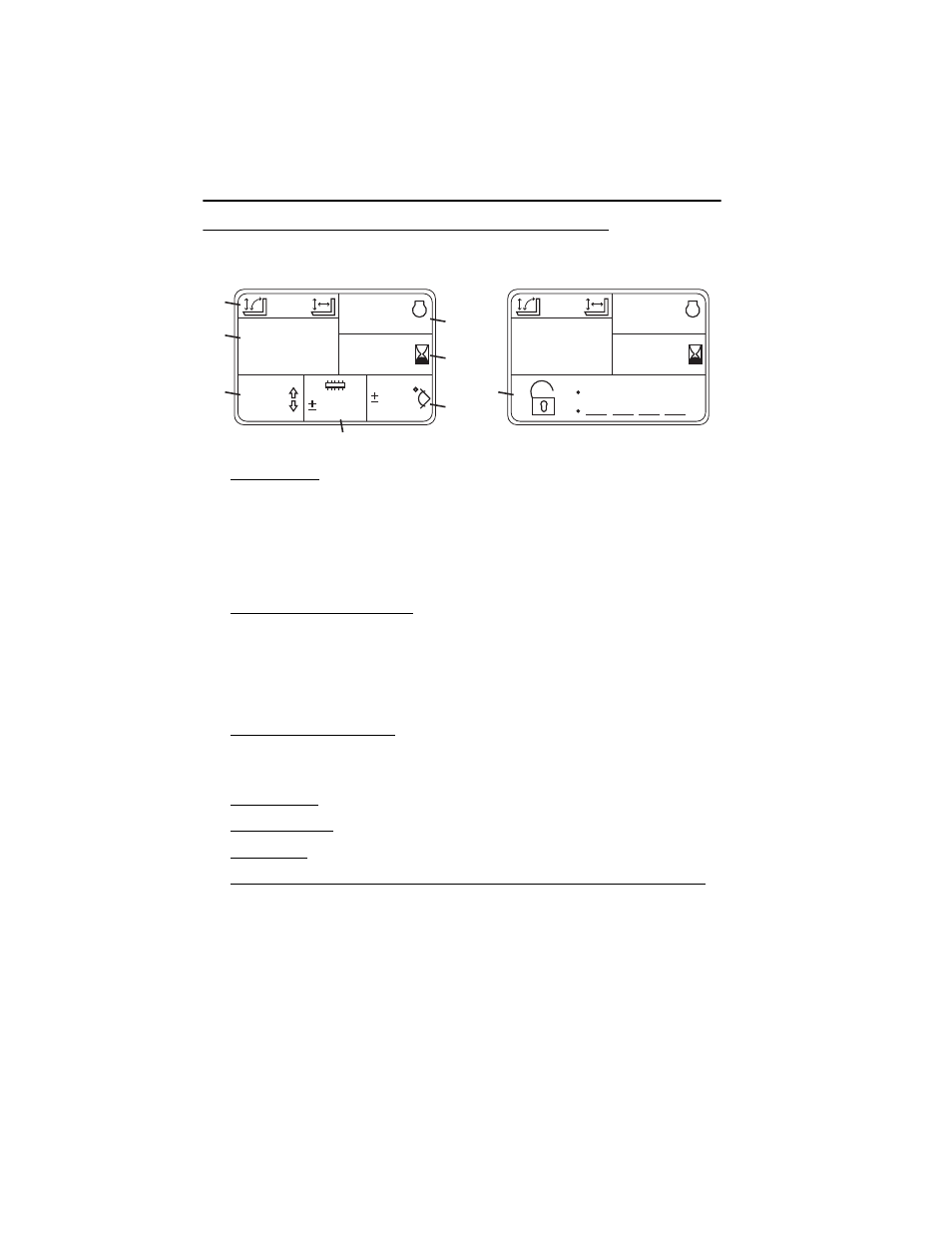

Display Screen
1. Joystick Mode: Displays current joystick mode. Joystick mode can be changed
by the machine owner in Operator Tools Menu (level 2 password required). See
Service Manual for information.
a. Loader Joystick Pattern - Displays loader joystick pattern icon on left when
active. See page 3-20.
b. Lift Joystick Pattern - Displays lift joystick pattern icon on right when active.
See page 3-18.
2. Speed and Power to Platform:
c. Speed (if equipped) - Telehandler travel speed displayed in kilometers per
hour (km/h) or miles per hour (m/h).
d. Transfer Power to Platform (if equipped for platform) - Assists with
transferring power to platform. Refer to the Platform for 3513PS, 4013PS,
4017PS Operation & Safety Manual.
3. Driving Direction and Gear: Displays current driving condition.
a. Direction - Forward (F), Neutral (N) or Reverse (R).
b. Gear - First (1), Second (2), Third (3) or Fourth (4).
4. Engine Speed: Displays engine speed in revolutions per minute (rpm).
5. Operating Hours: Displays total hours of telehandler operation.
6. Boom Angle: Displays boom angle in degrees. 0 degrees indicates horizontal.
7. Continuous Auxiliary Hydraulics, Steering Mode Change and Platform Status:
a. Continuous Auxiliary Hydraulics - Displays flow value (-100% to +100%)
when continuous auxiliary hydraulics is activated. See Section
5 - Attachments and Hitches for details.
b. Steering Mode Change - Assists with steering mode change. See “Steer
Modes” on page 3-26 for details.
c. Platform Status (if equipped for platform) - Displays status when platform is
installed.
OAH1270
8
2
3
4
5
6
7
00
0000
0000
00
F2
RPM
km/h
100
0
00
0000
0000
RPM
km/h
1
DISPLAY SHOWN WITH CONTINUOUS
AUXILIARY HYDRAULICS ACTIVE
DISPLAY SHOWN WITH ANTI THEFT
ACTIVE AT SYSTEM START
