ELECTRICAL
TF6-42 91504001 10-6

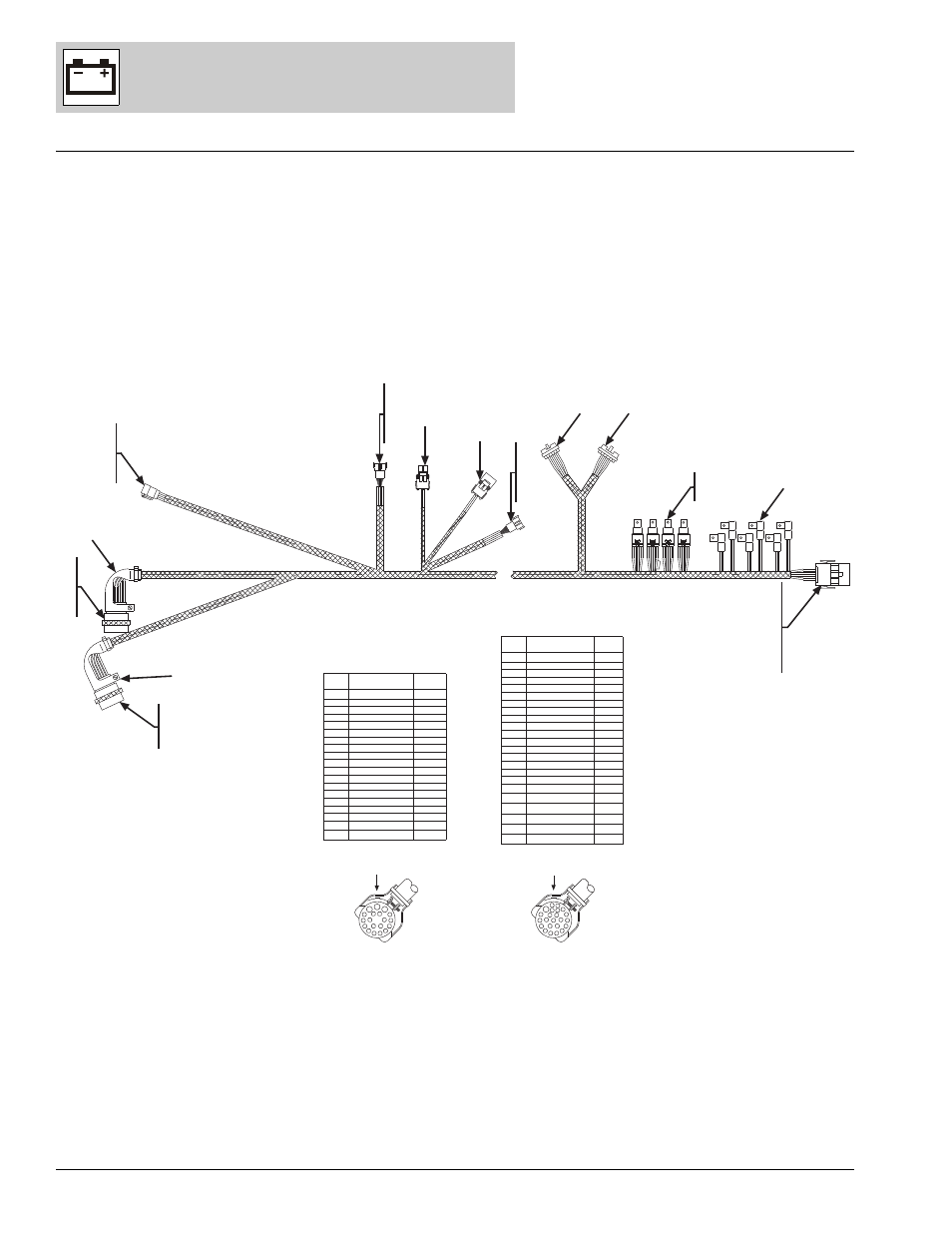

Figure 10-3 Cab Harness
14
15
16
17
18
19
1
2
3
4 5
7
8
13
13
6
20
21
22
9
21
22
23
10
22
24
25
11
21
22
26
12
22
25
NORMAL POSITION
U SRV BRK - 18
T PK BRK SOL 18
V SRV BRK + 18
W PLAT JSTK CT 18
X PLUGGED -
A PLAT TIMER 18
B PLAT TGT DRV 18
C APC SGN GND 16
D REF VOLT + 16
E RS232 TXD 16
F PLAT STRT 16
G PLAT IGN SGN 16
H PLAT CONN 16
J PLAT AUX SGN 16
K PLAT HI/CRP 18
L THRT MOT - 18
M THRT MOT + 18
N APC SGN GND 18
O THRT FBK SGN 18
P REF VOLT + 18
Q BM ELEV/EXT 18
R PLAT BOOM SGN 18
S PLUGGED -
CONN WIRE WIRE
POS DESIGNATION GAUGE
19 ENG SPD - 18
17 ENG SPD + 18
18 PLUGGED -
1 ST RLY 16
2 AUX PWR SGN 16
3 PS IGN 16
4 PLUGGED -
5 TRANS-B 16
6 TRANS-A 16
7 TRANS-C 18
8 EMS BAT 1 12
9 TRANS-D 18
10 EMS BAT 2 12
11 TRANS-E 18
12 APC PWR GND 12
13 TURB SPD + 18
14 PLAT BAT PWR 12
15 TURB SPD - 18
16 PLAT IGN PWR 12
CONN WIRE WIRE
POS DESIGNATION GAUGE
NORMAL POSITION
B
A
B
A
CONNECTOR END VIEW CONNECTOR END VIEW
